Front Bumper Fascia Upper Support Replacement

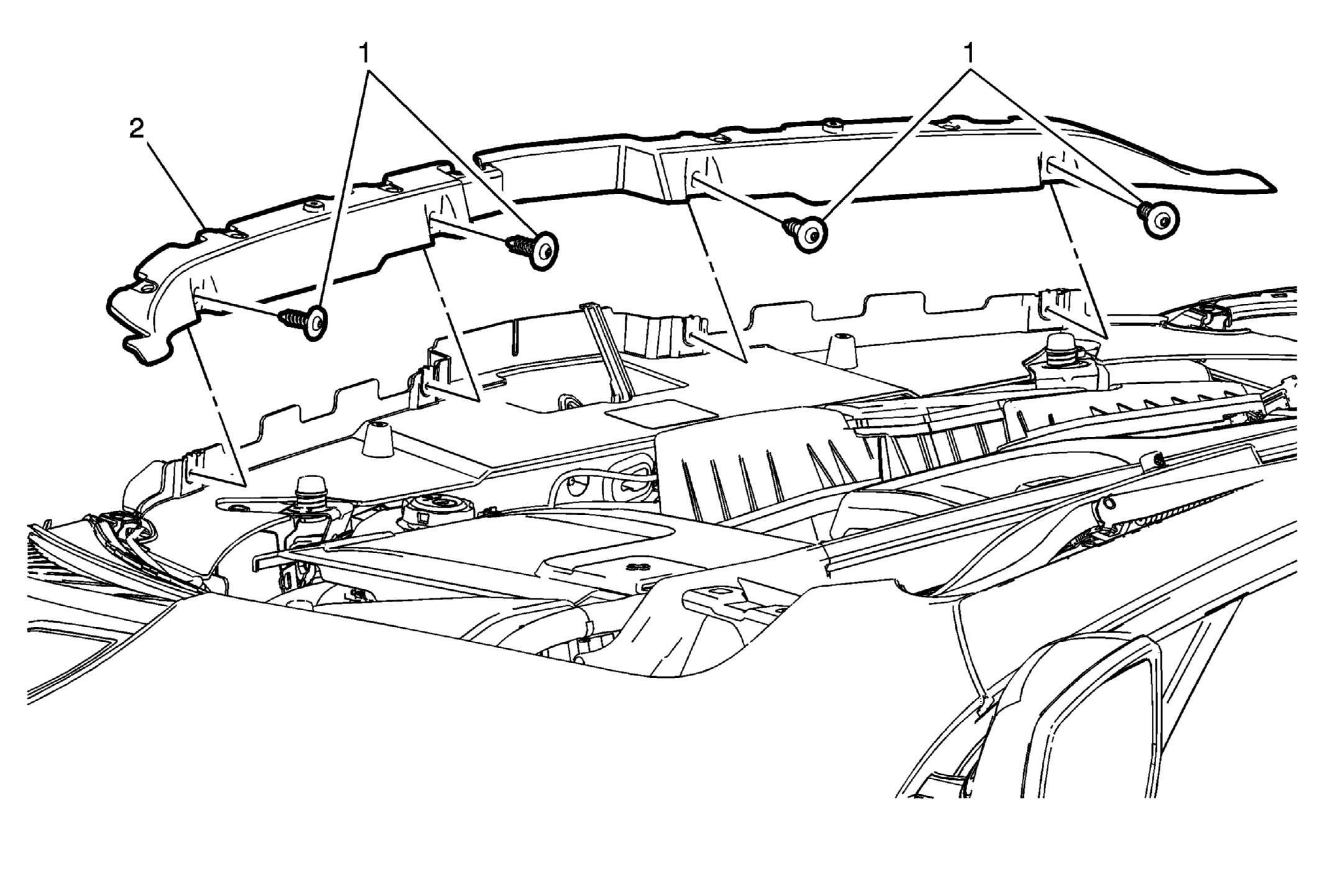

Fig 1: Front Bumper Fascia Upper Support & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Front Bumper Fascia Upper Support Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  3 N.m (26 lb in)
2	Front Bumper Fascia Upper Support
