Front Bumper Fascia Outer Support Replacement

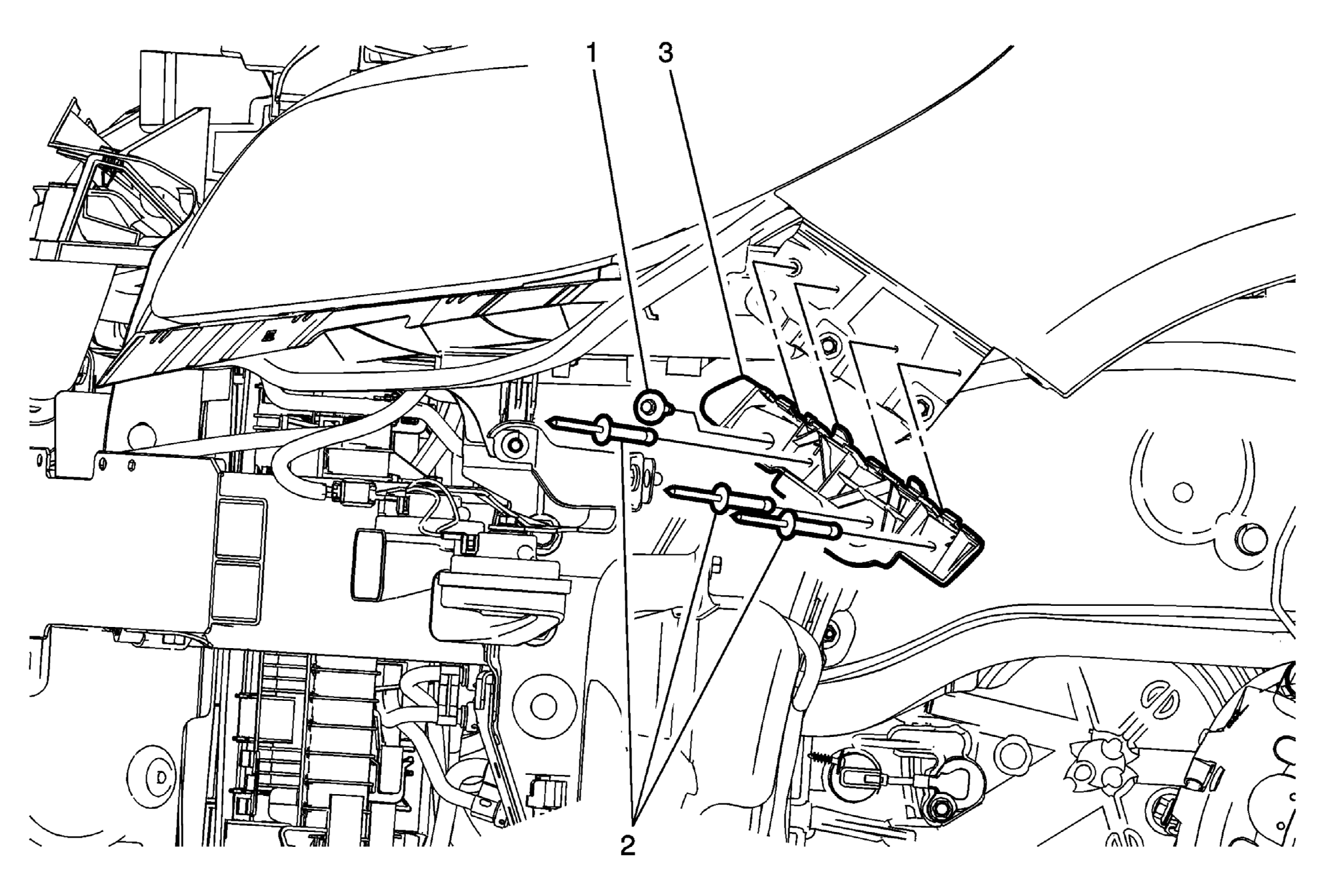

Fig 1: Front Bumper Fascia Outer Support & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Eye Protection Warning . Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Headlamp Bolt CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Front Bumper Outer Support Rivet (Qty: 3) Special Tools  BO-594-A  Hand Rivet Tongs For equivalent regional tools, refer to Special Tools .
3	Front Bumper Outer Support
