Front Air Deflector Replacement

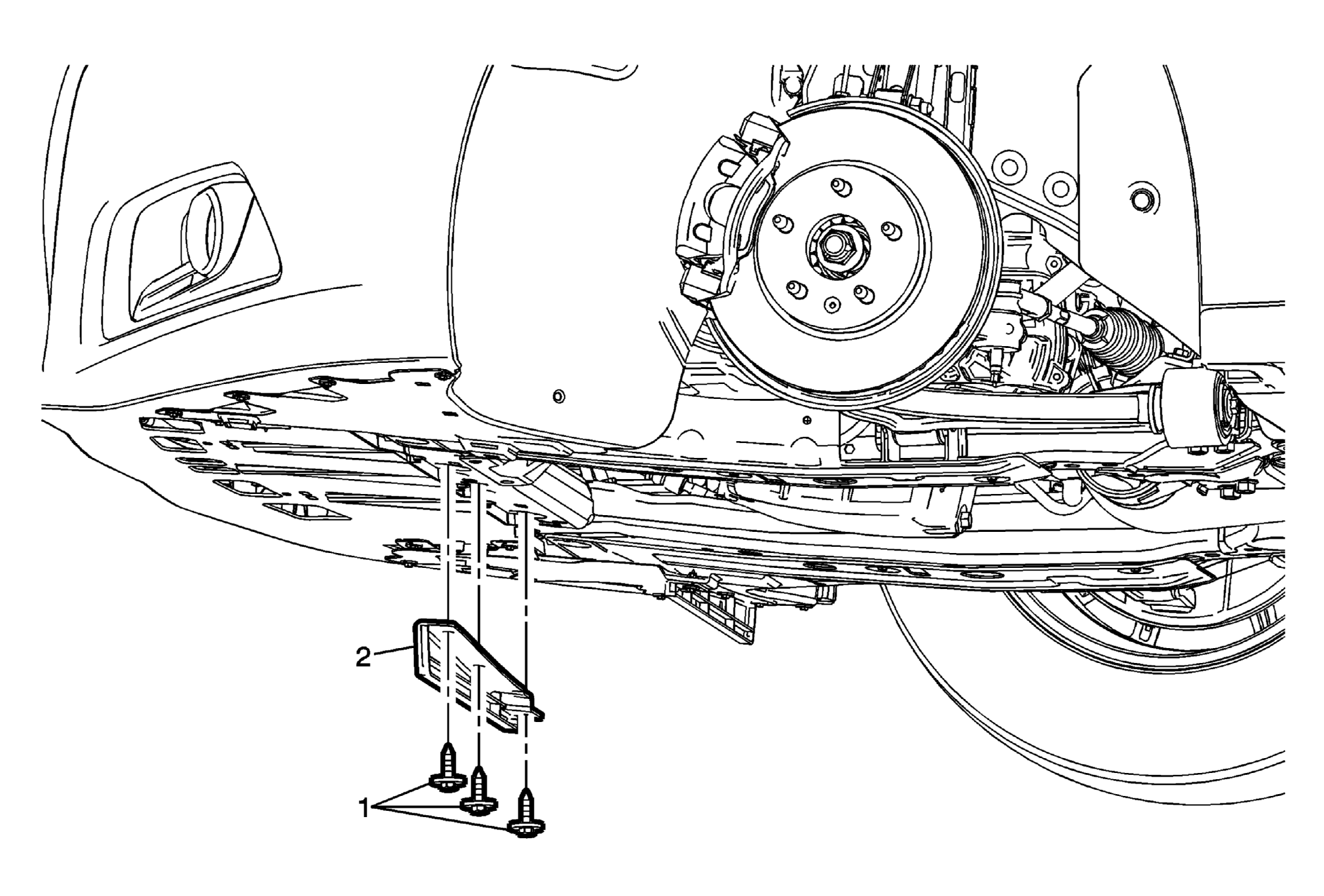

Fig 1: Front Air Deflector & Bolts
GM2555873Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Air Deflector Bolt (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)
2 Front Air Deflector
