Rear Seat Back Frame Reinforcement Replacement

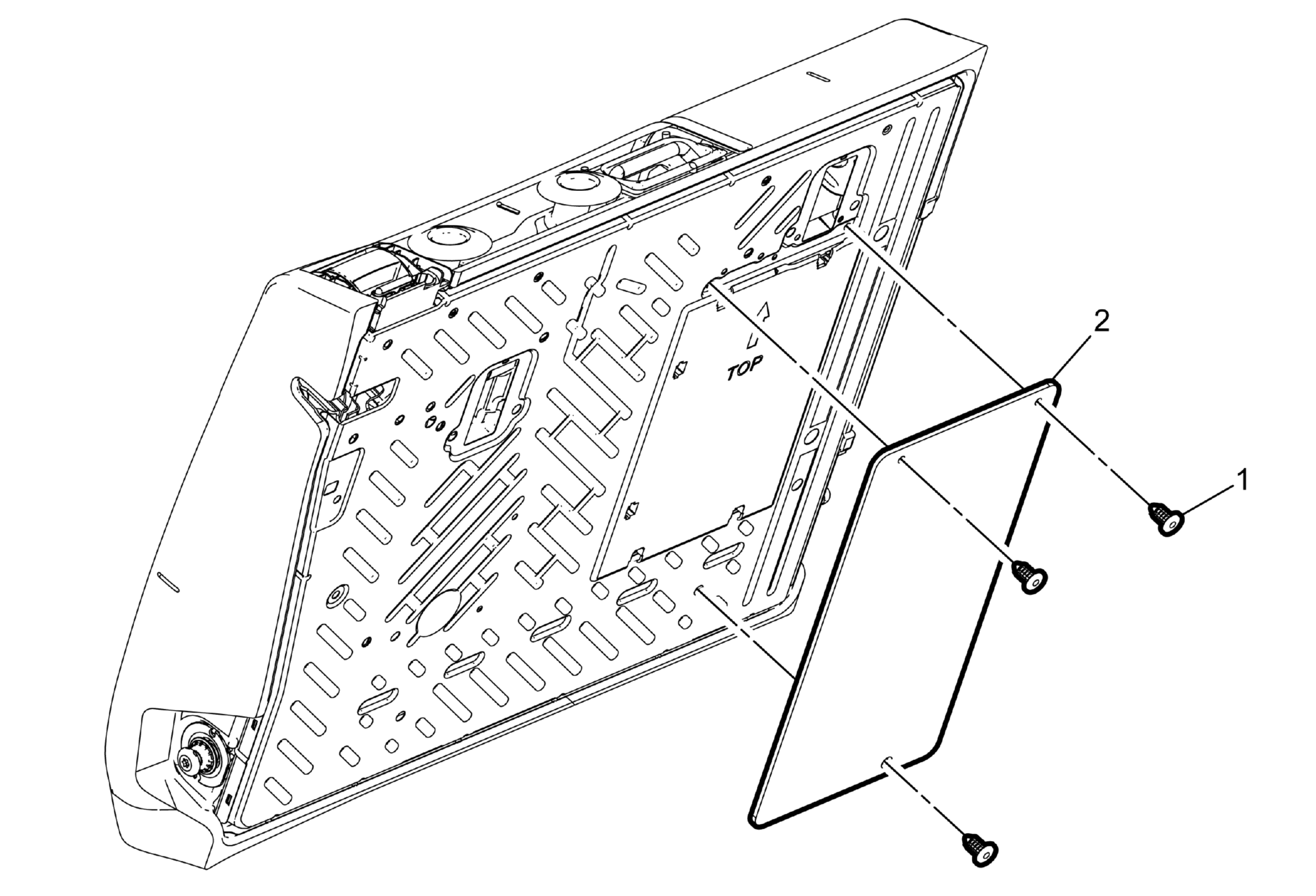

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40% Seat Back) and Rear Seat Back Cushion Cover and Pad Replacement (60% Seat Back) . |
|
| 1 | Rear Seat Back Cushion Frame Reinforcement Fastener (Qty: 3) Procedure Use a flat-bladed tool to release the fastener from the seat back frame. |
| 2 | Rear Seat Back Cushion Frame Reinforcement |
