Rear Compartment Access Door Replacement

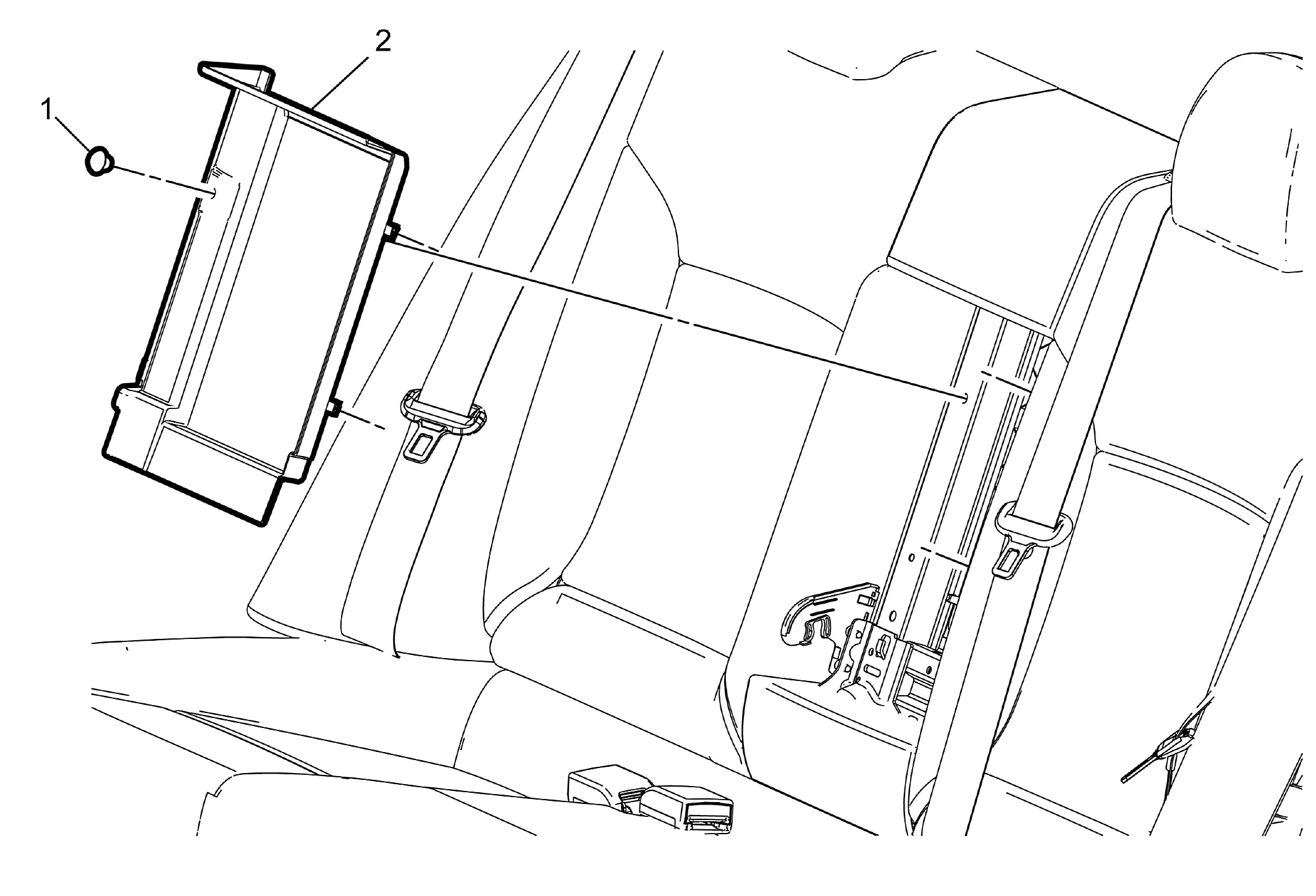

Fig 1: Rear Compartment Access Door

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Compartment Access Door Cover Fastener NOTE: Pull the rear seat armrest down to gain access to the fasteners. Procedure  Use a flat-bladed tool to release the fastener from the access door and seat back frame.
2	Rear Compartment Access Door Cover Procedure  Firmly grasp the access door cover, pulling upward on the fastener side to remove.
