Front Seat Back Frame Brace Replacement

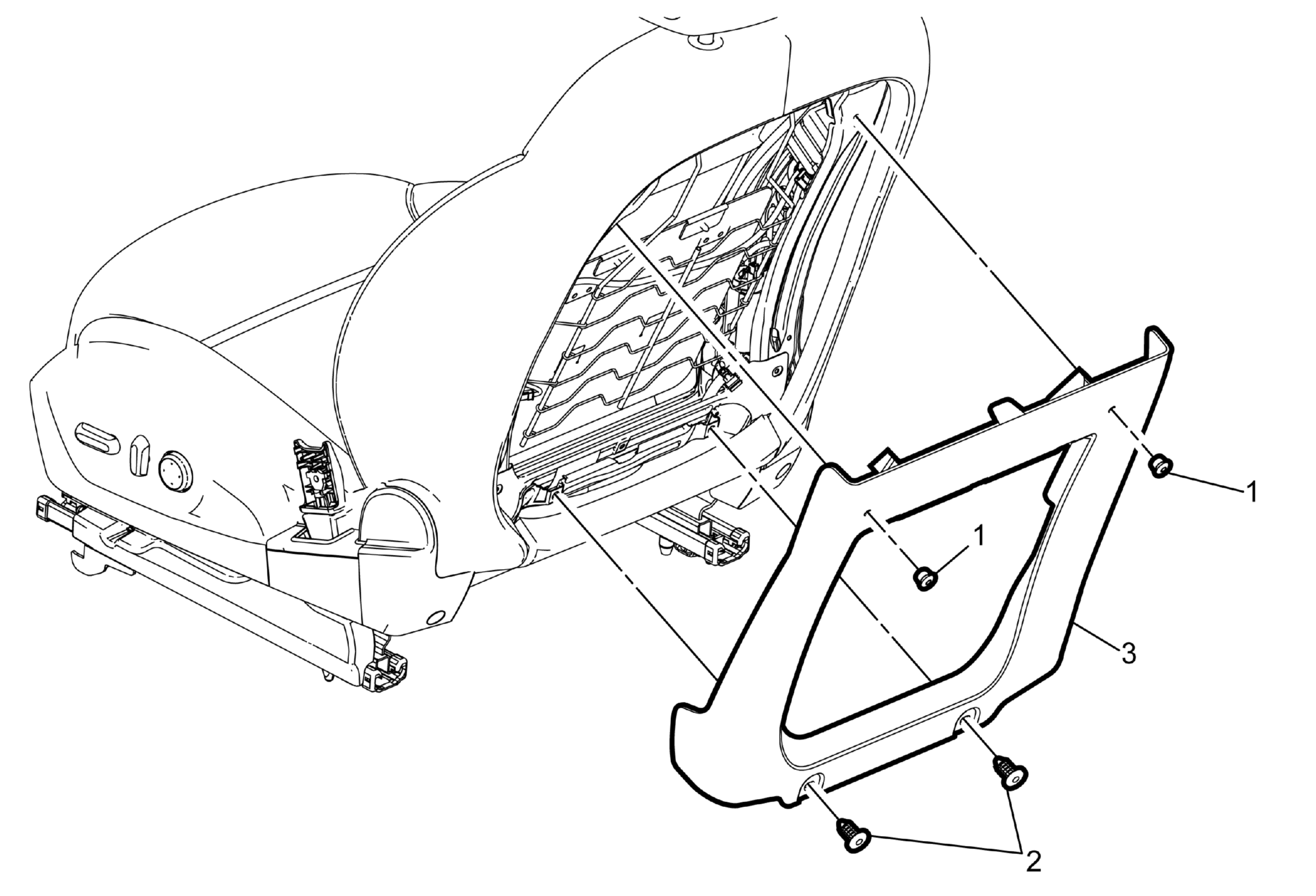

Fig 1: Front Seat Back Frame Brace

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
1	Front Seat Back Frame Brace Rivet (Qty: 2) WARNING: Use the proper eye protection when drilling to prevent metal chips from causing physical injury. Procedure Drill out all of the guide rivets before removing the seat back frame brace.
2	Front Seat Back Frame Brace Fastener (Qty: 2)
3	Front Seat Back Frame Brace Procedure Pull the panel downward first to disengage the upper retainers. Move the finish panel and side clips to one side to disengage the panel from the seat frame.
