Front Seat Back Body Panel Bracket Replacement

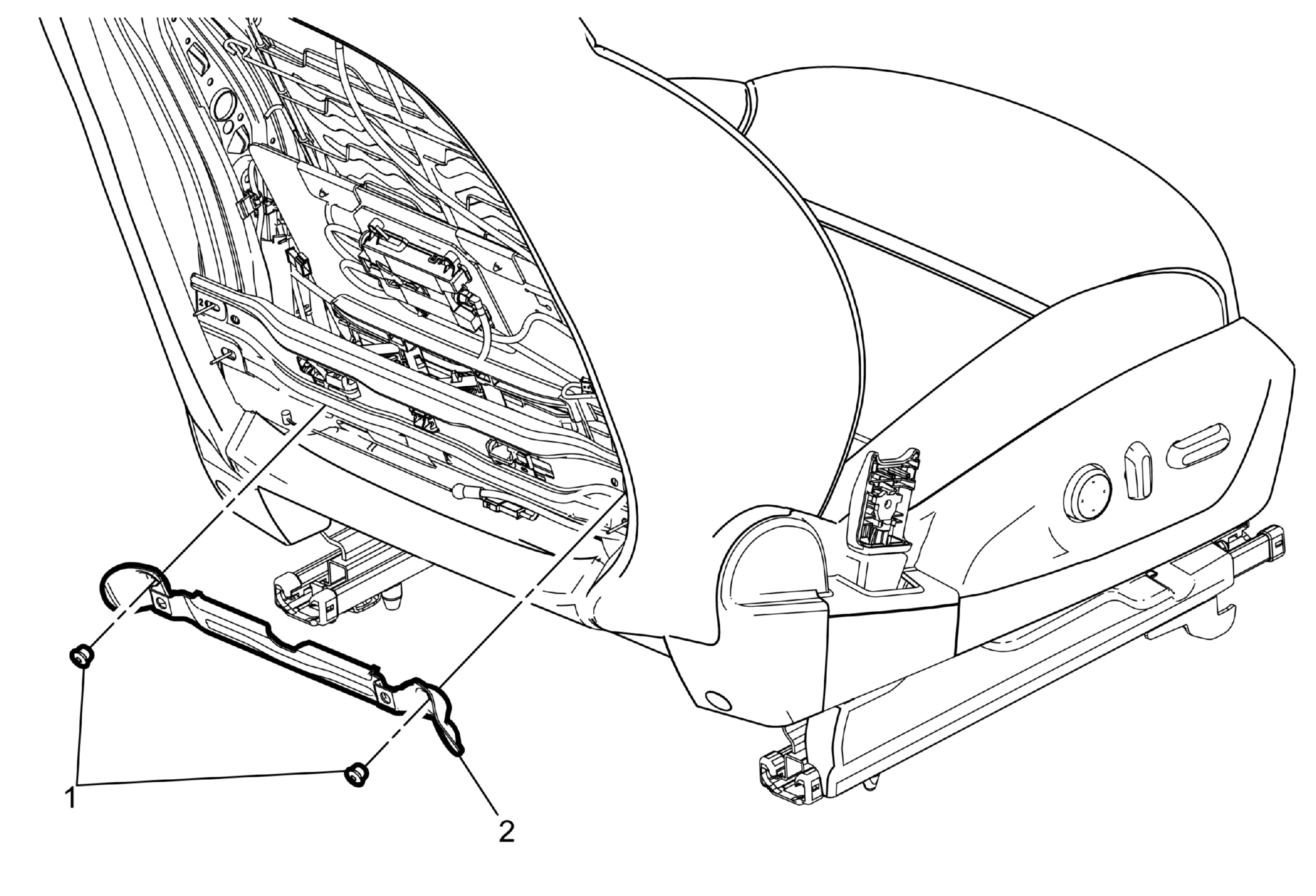

Fig 1: Front Seat Back Body Panel Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat back frame brace. Refer to Front Seat Back Frame Brace Replacement .
1	Front Seat Back Body Panel Bracket Rivet (Qty: 4) WARNING: Use the proper eye protection when drilling to prevent metal chips from causing physical injury. Procedure Drill out all of the guide rivets before removing the seat back body panel bracket.
2	Front Seat Back Body Panel Bracket Procedure When re-installing the seat back frame brace, slide the lower section of the frame brace down over the seat back frame. Re-rivet at the bottom of the seat back frame with new rivets.

Callout

Component Name

Preliminary Procedure
Remove the front seat back frame brace. Refer to Front Seat Back Frame Brace Replacement .

Front Seat Back Body Panel Bracket Rivet (Qty: 4)

WARNING: Use the proper eye protection when drilling to prevent metal chips from causing physical injury.

Procedure
Drill out all of the guide rivets before removing the seat back body panel bracket.

Front Seat Back Body Panel Bracket

Procedure

When re-installing the seat back frame brace, slide the lower section of the frame brace down over the seat back frame.
Re-rivet at the bottom of the seat back frame with new rivets.
