Instrument Cluster Wiring Schematics: Gauges

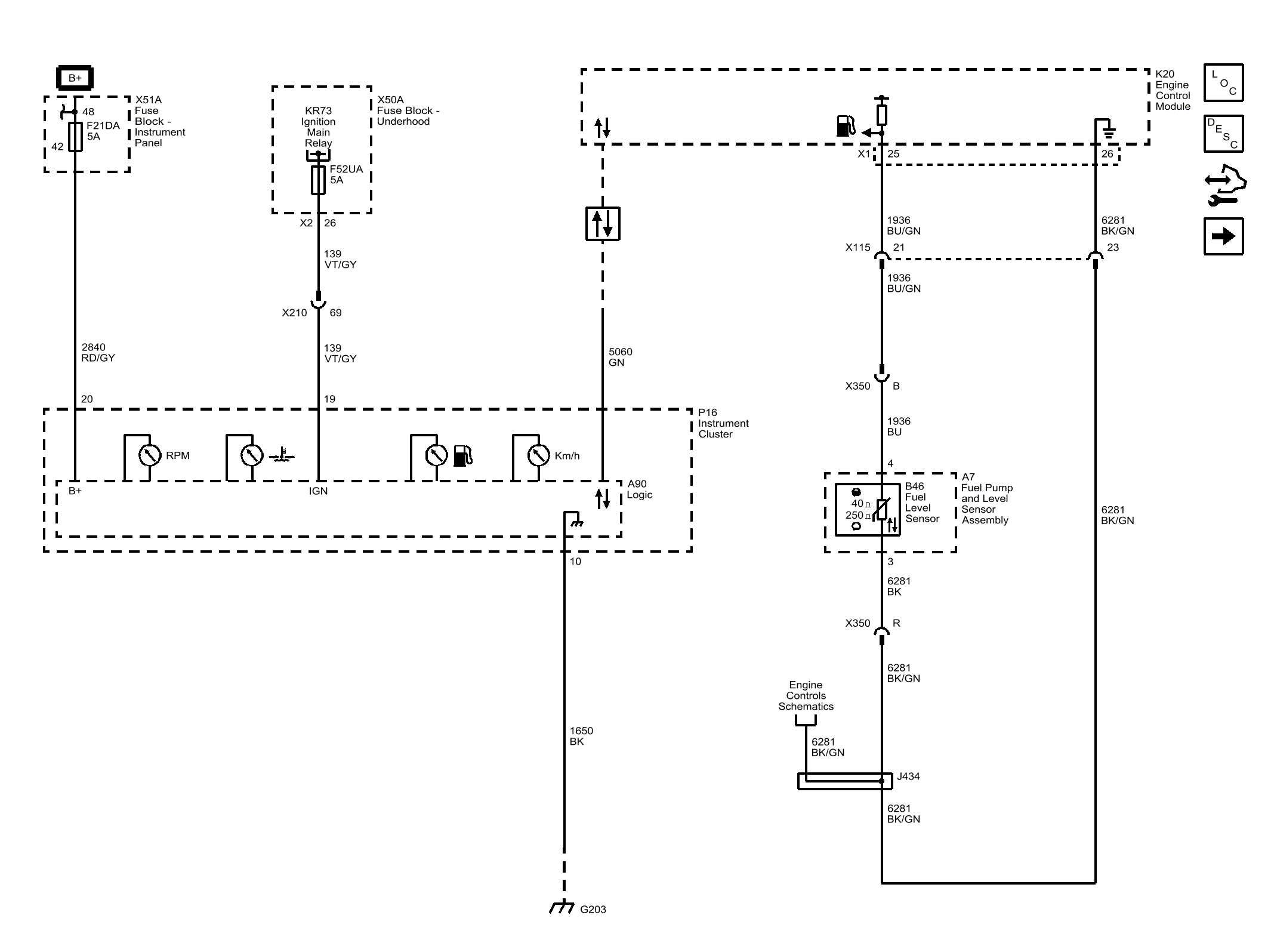

Fig 1: Gauges

GM3704298

Courtesy of GENERAL MOTORS COMPANY
