Clutch Pedal Return Spring Replacement (Tension Spring)

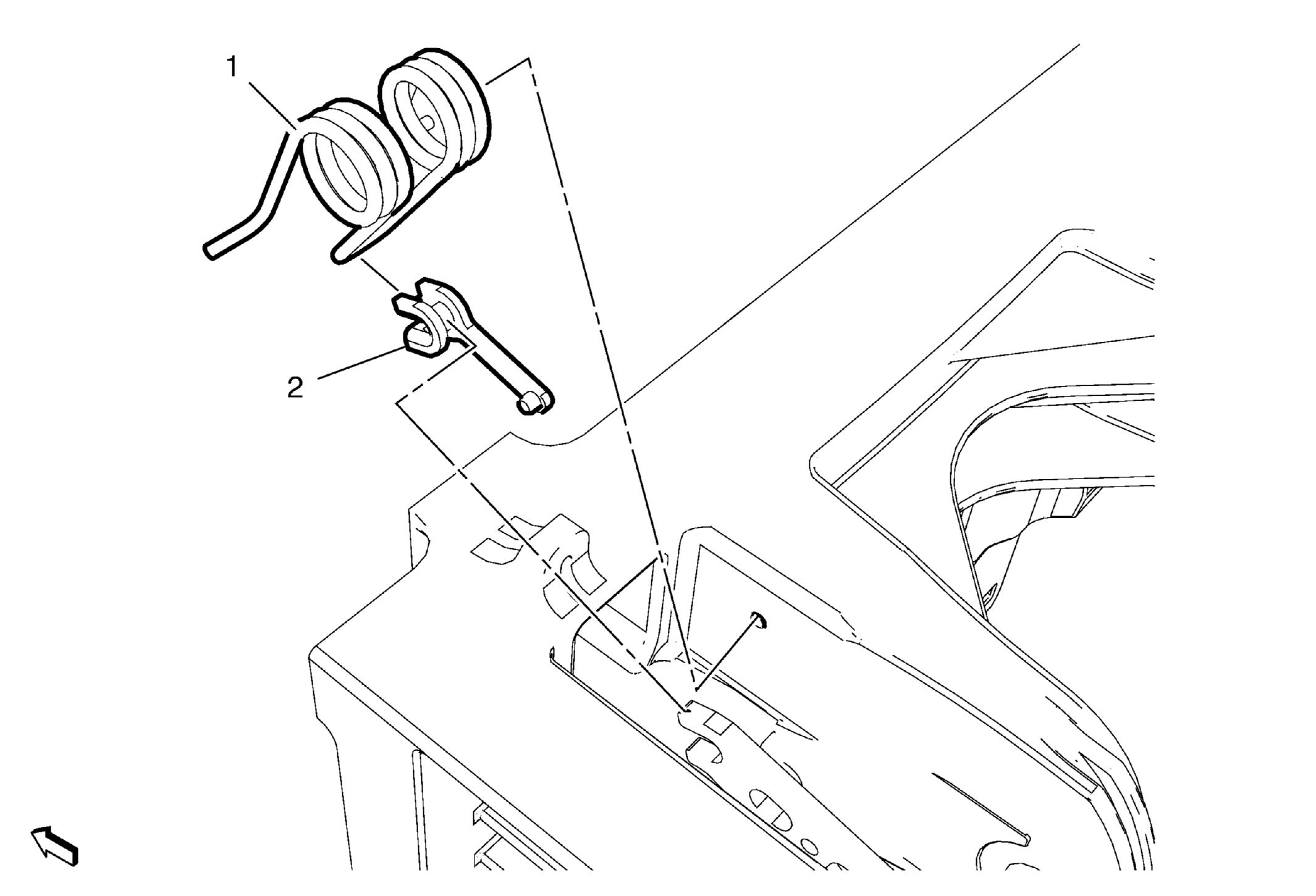

Fig 1: Clutch Pedal Return Spring (Tension Spring)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the brake, accelerator and clutch pedal assembly. Refer to Brake, Accelerator and Clutch Pedal Replacement .
1	Clutch Pedal Return Spring
2	Clutch Return Pedal Spring Bracket
