Clutch Pedal Return Spring Replacement (Coil Spring)

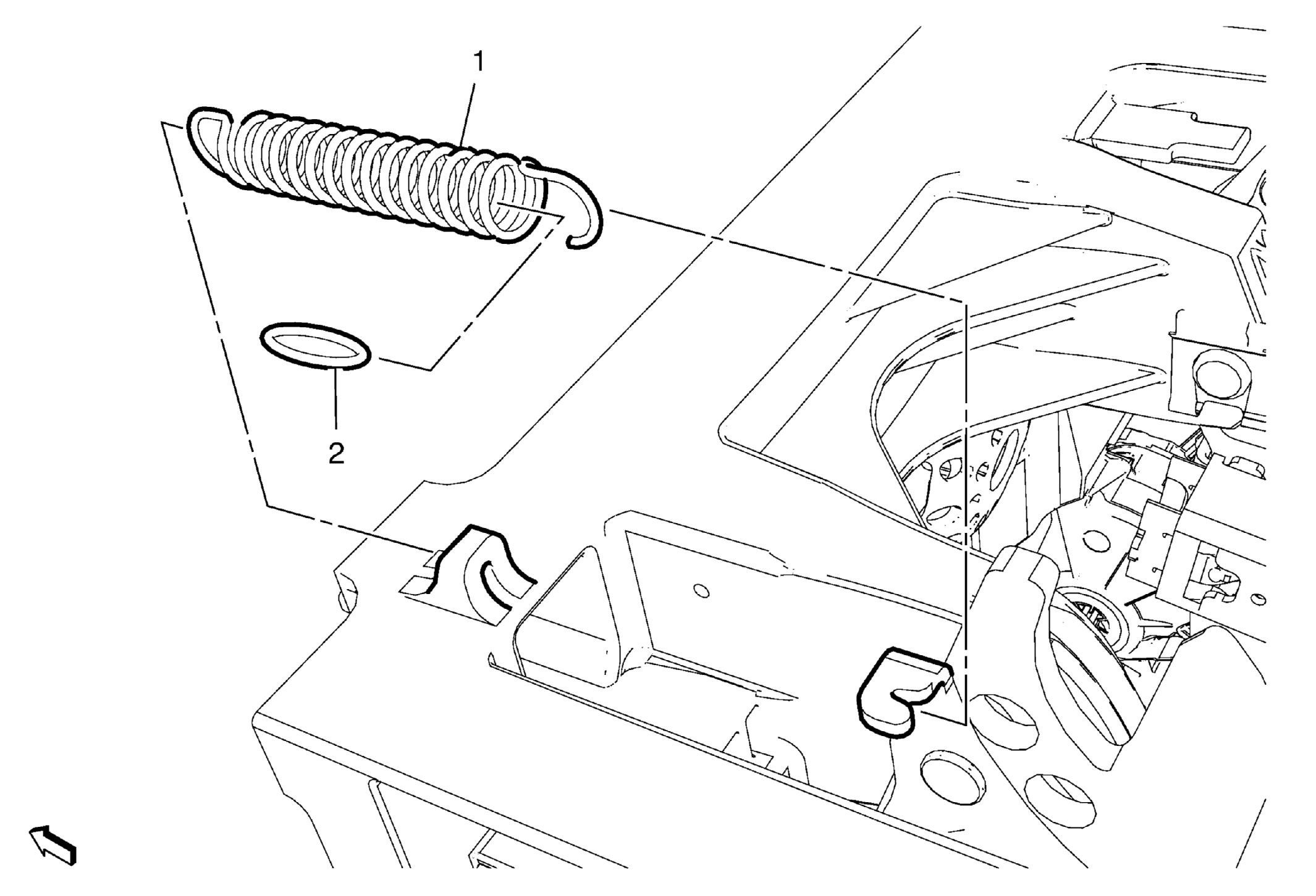

Fig 1: Clutch Pedal Return Spring (Coil Spring)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the brake, accelerator and clutch pedal assembly. Refer to Brake, Accelerator and Clutch Pedal Replacement .
1	Clutch Pedal Return Spring
2	Clutch Pedal Return Spring Bracket
