Removal Procedure

  1. Disconnect the clutch pedal position sensor wiring harness plug.

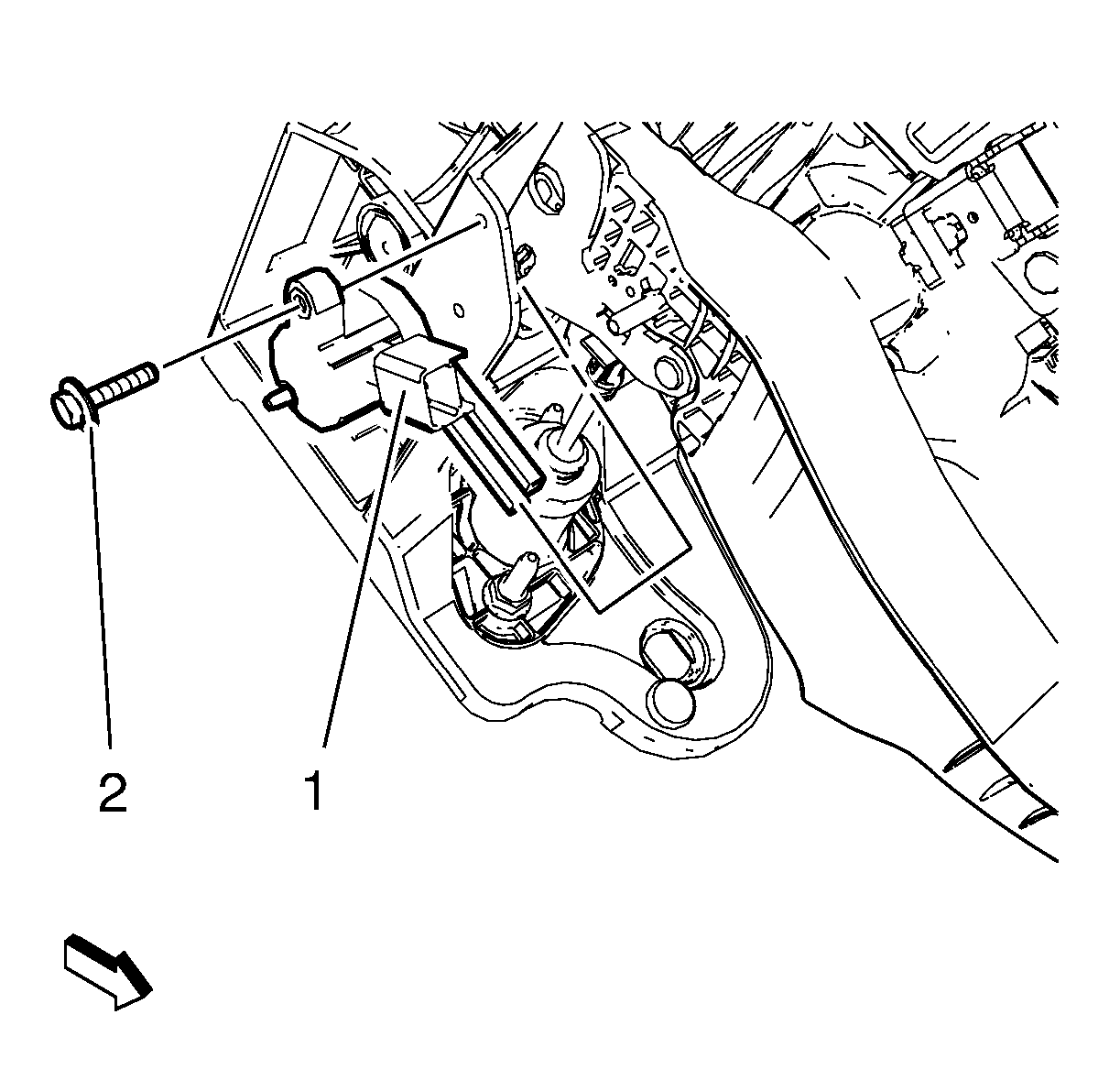

    Fig 1: Clutch Pedal Position Sensor And Bolt
    GM2028127Courtesy of GENERAL MOTORS COMPANY
  2. Remove the clutch pedal position sensor bolt (2).
  3. Remove the clutch pedal position sensor (1).
