Installation Procedure

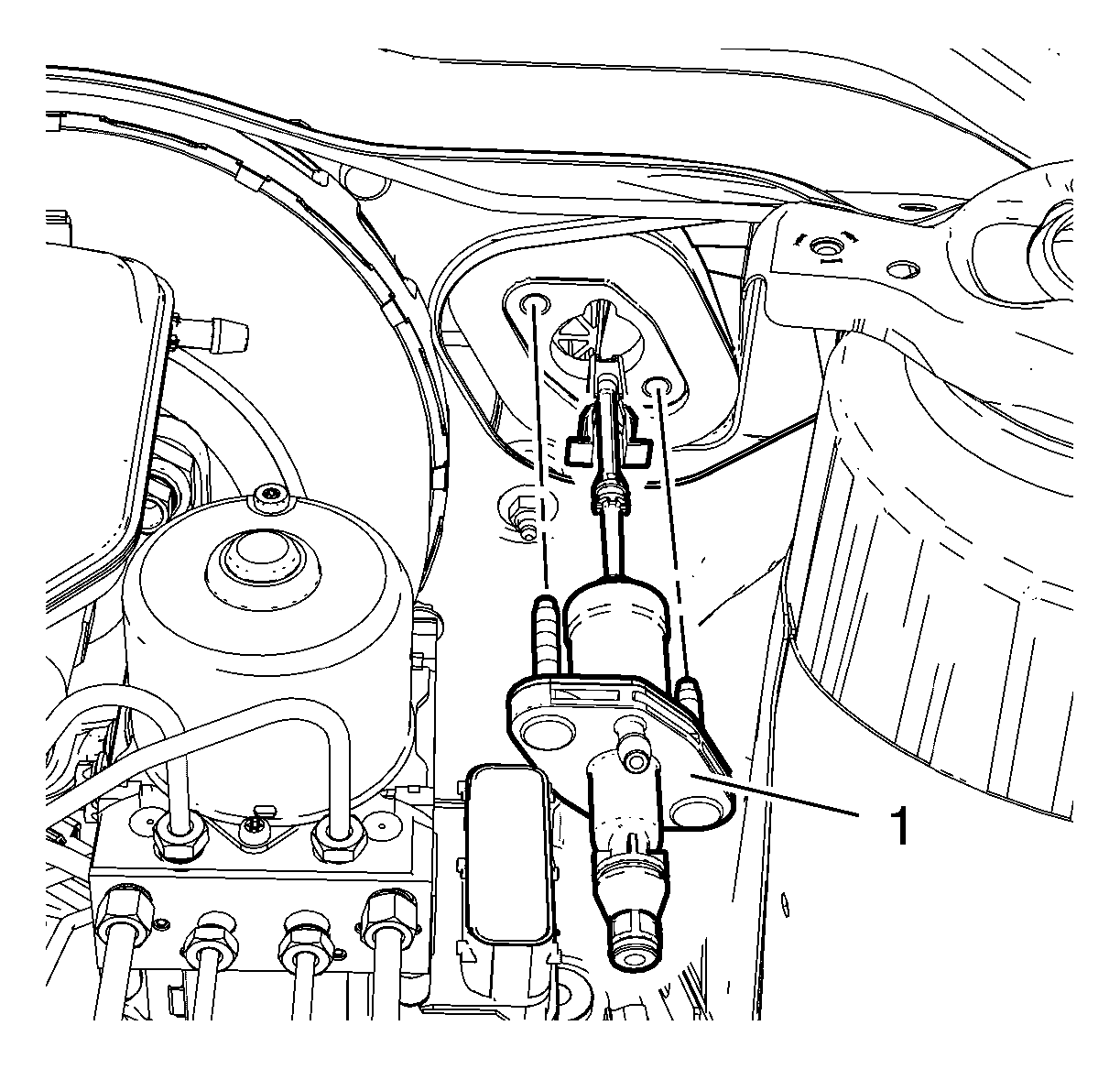

Clutch Master Cylinder (1) »Install

Fig 1: Clutch Master Cylinder
Courtesy of GENERAL MOTORS COMPANY

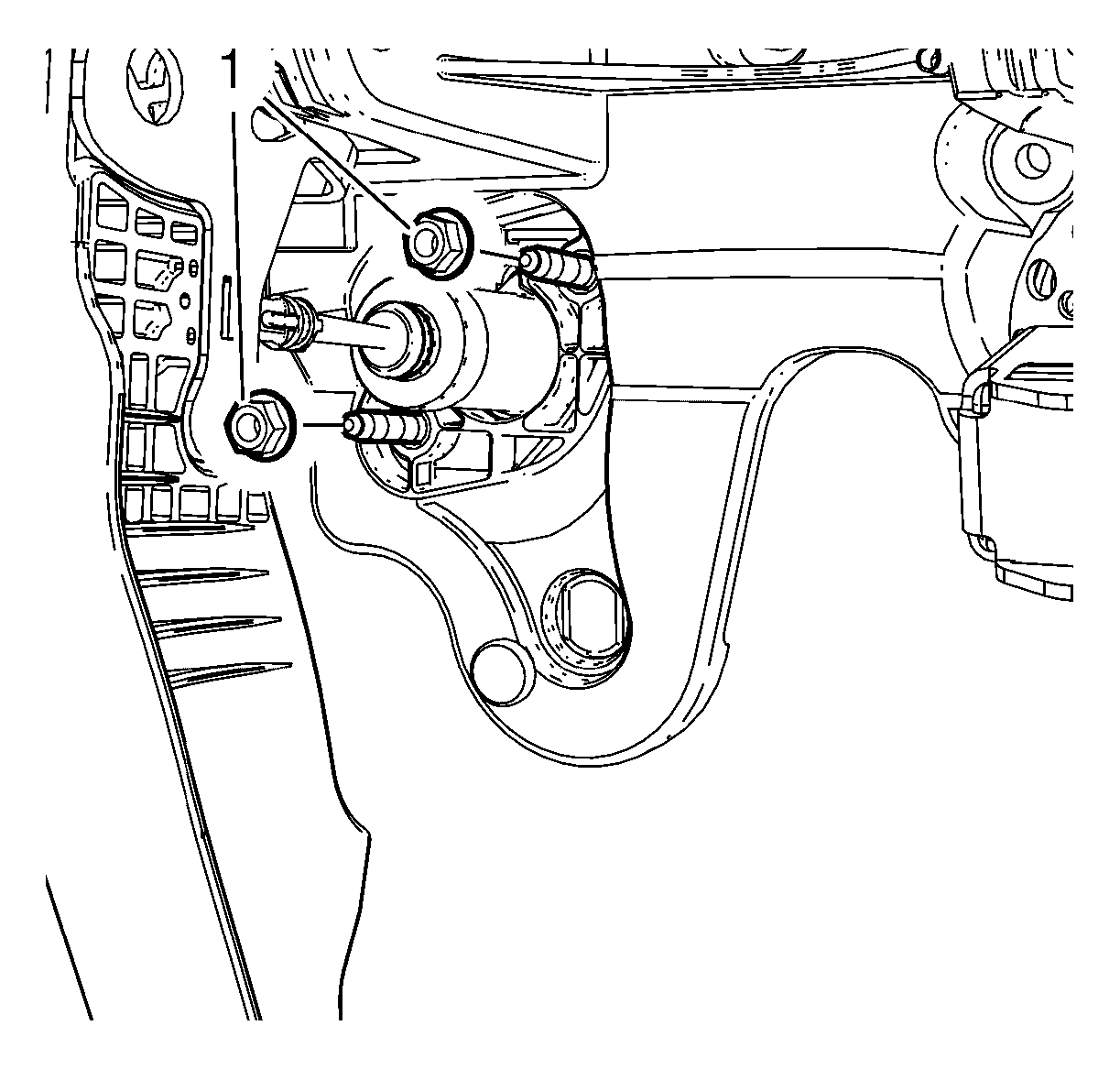

Clutch Master Cylinder Nut (1) »Install and tighten 18 N.m (13 lb ft) [2x]

Fig 2: Clutch Master Cylinder Nuts
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .

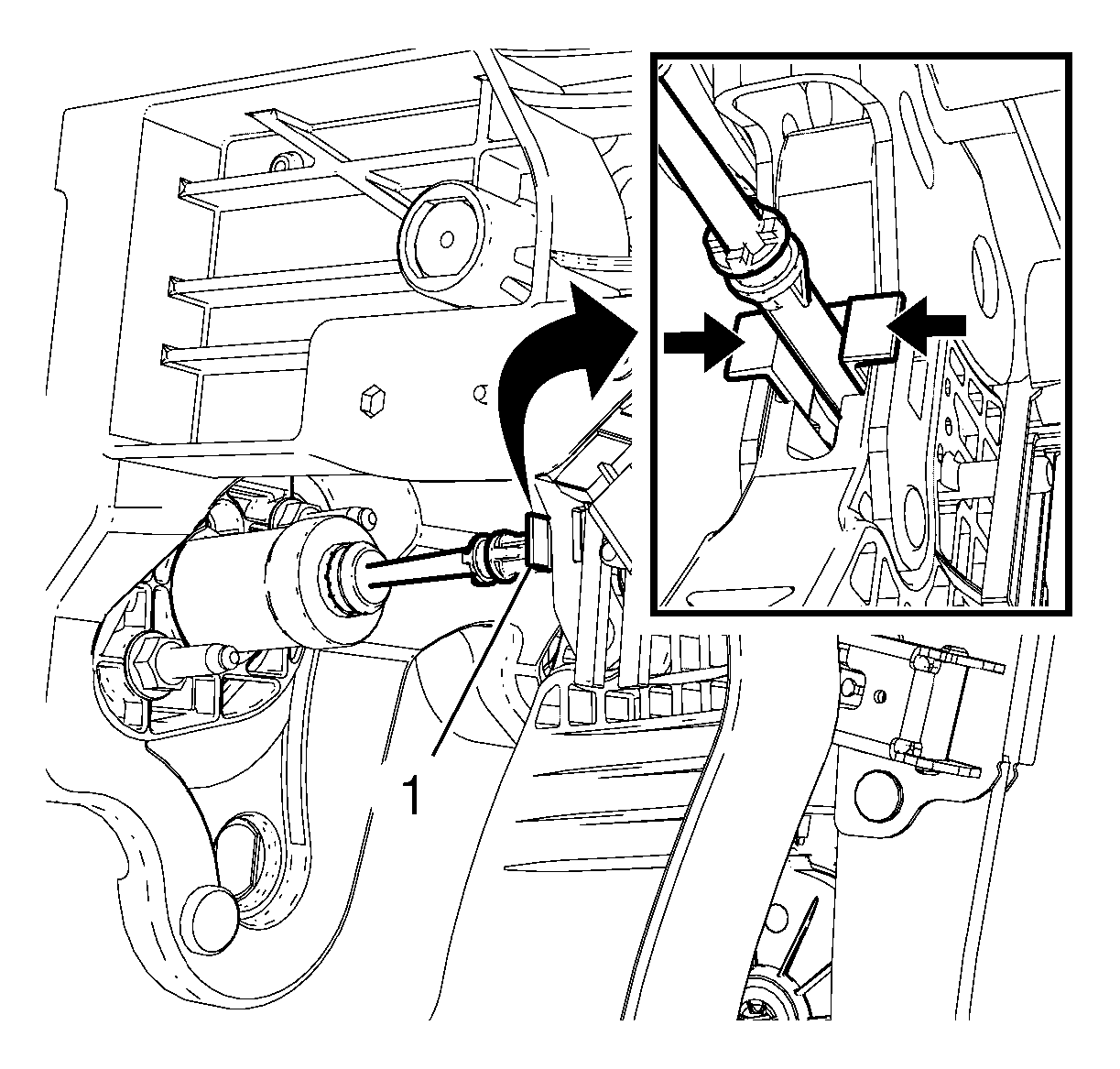

Connect the push rod retainer (1) to the clutch pedal.

Fig 3: Clutch Pedal Push Rod Retainer And Latches
Courtesy of GENERAL MOTORS COMPANY

NOTE: The retaining clip (arrows) has to engage audibly.

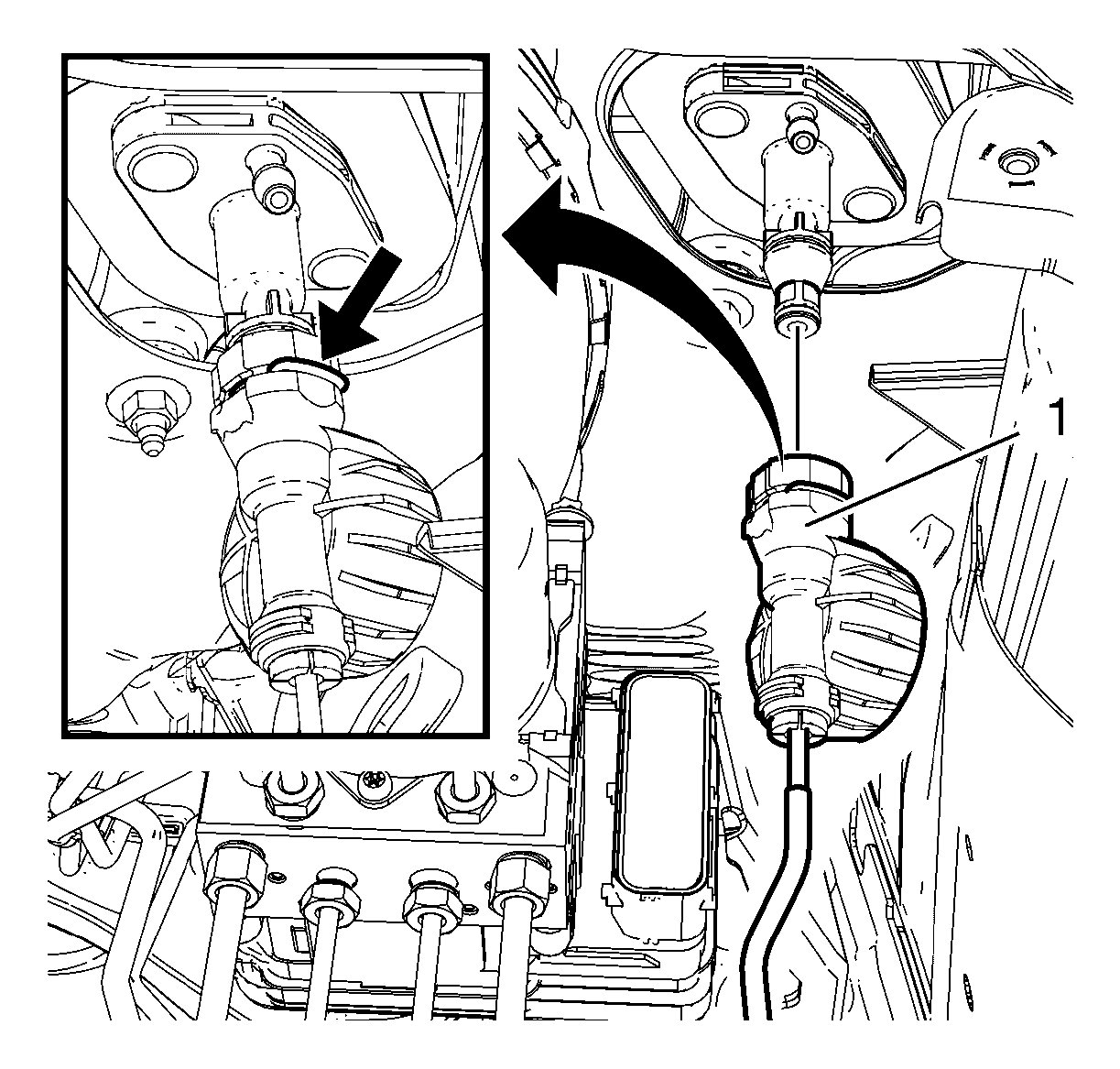

Clutch Actuator Cylinder Front Pipe (1) @ Clutch Master Cylinder »Connect

Fig 4: Clutch Actuator Cylinder Front Pipe And Retaining Clip
Courtesy of GENERAL MOTORS COMPANY
Close the retaining clip (arrow).

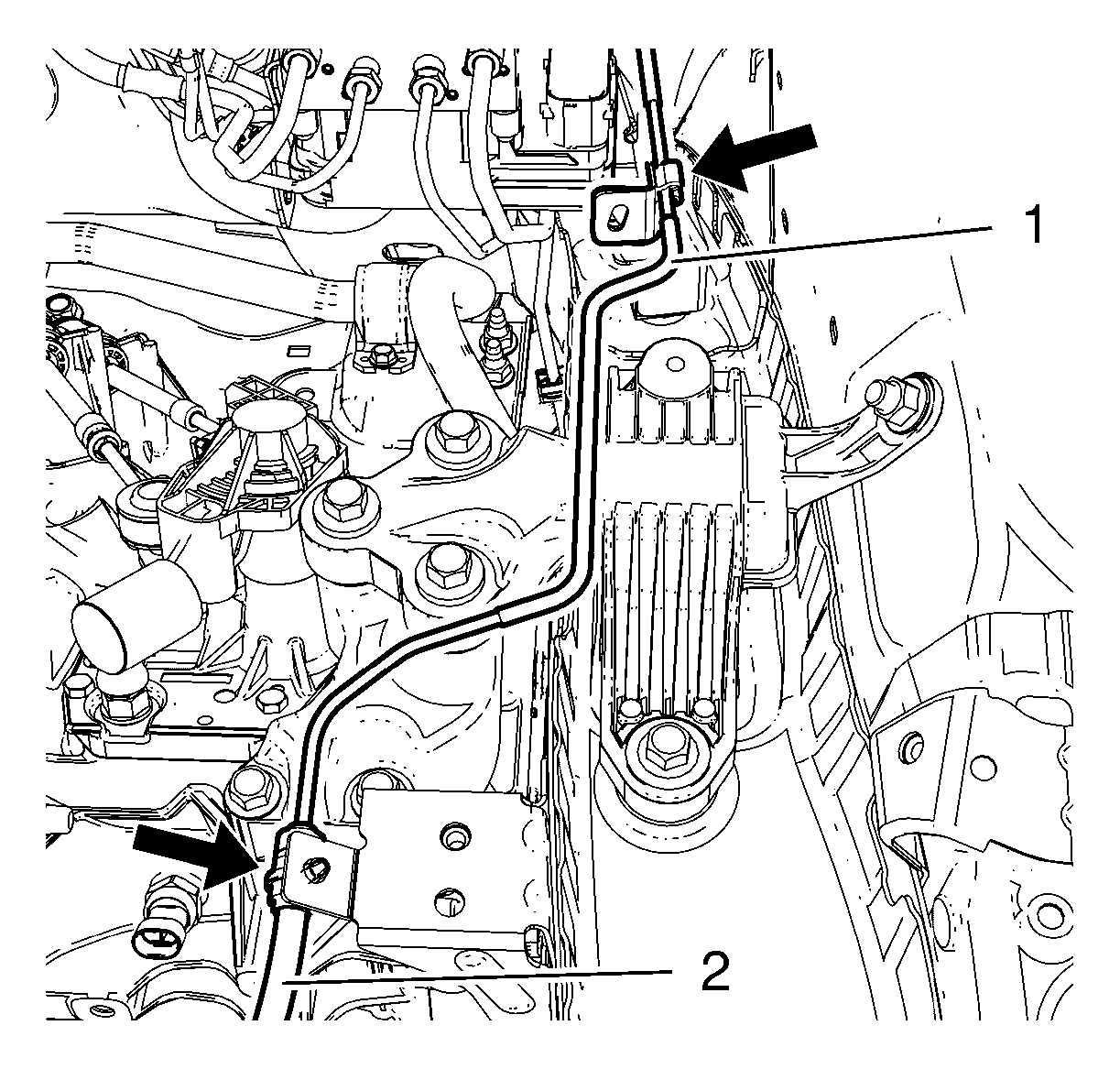

Clutch Actuator Cylinder Front Pipe (1) @ Retainer (arrows) »Install

Fig 5: Clutch Actuator Cylinder Front Pipe And Retainers
Courtesy of GENERAL MOTORS COMPANY

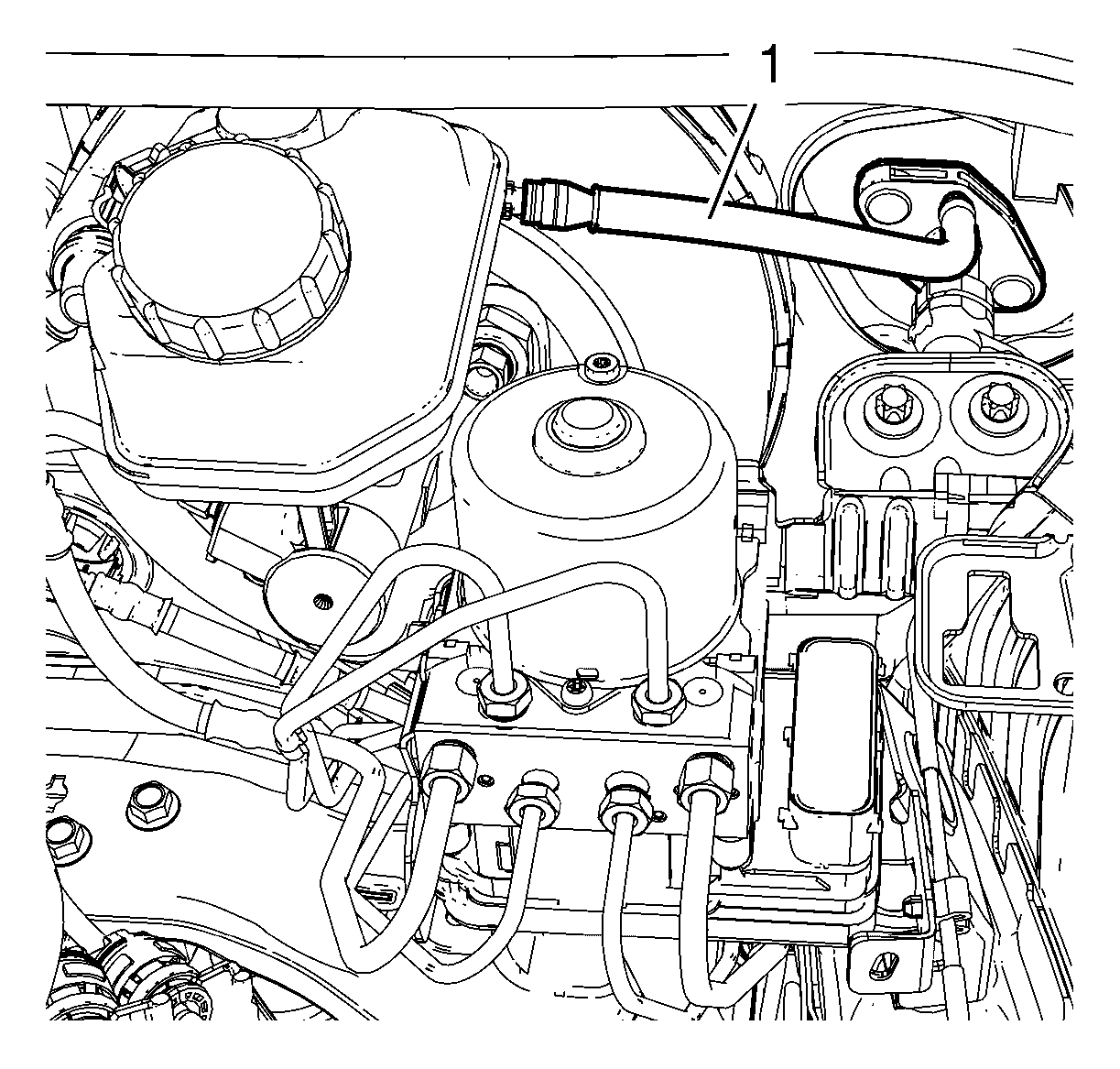

Clutch Master Cylinder Reservoir Hose (1) @ Clutch Master Cylinder »Install

Fig 6: Clutch Master Cylinder Reservoir Hose
Courtesy of GENERAL MOTORS COMPANY
Radiator Surge Tank (1) »Install

Fig 7: View Of Radiator Surge Tank And Radiator Surge Tank Clip
Courtesy of GENERAL MOTORS COMPANY
Radiator Surge Tank Clip (2) »Install
Bleed the hydraulic clutch system. Hydraulic Clutch System Bleeding
Battery Tray Replacement »Install
