Installation Procedure

Install clutch actuator cylinder front pipe.
NOTE: For installation of clutch actuator cylinder front pipe lift brake pressure modulator valve bracket carefully.
Connect clutch actuator cylinder front pipe (1) to clutch master cylinder.

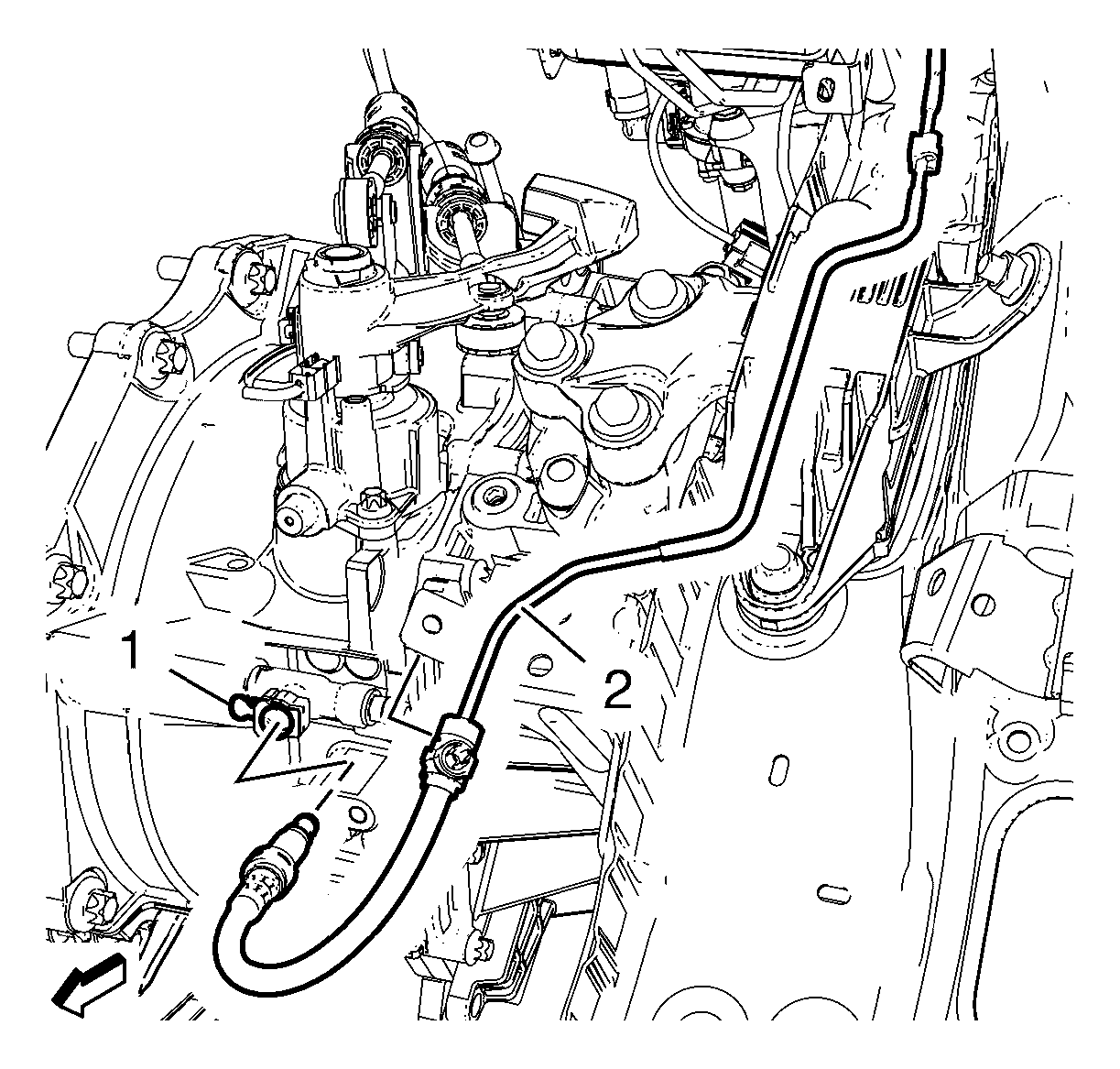

Fig 1: Clutch Actuator Cylinder Front Pipe And Retaining Clip
Courtesy of GENERAL MOTORS COMPANY
Close retaining clip (arrow).
Connect clutch actuator cylinder front pipe (2) to clutch actuator cylinder pipe elbow.

Fig 2: Clutch Actuator Cylinder Front Pipe And Retainers
Courtesy of GENERAL MOTORS COMPANY
Close retaining clip (1).
Clip clutch actuator cylinder front pipe into 2 retainers.
Install 2 brake pressure modulator valve bracket bolts (1) and tighten to 20 N.m (15 lb ft).

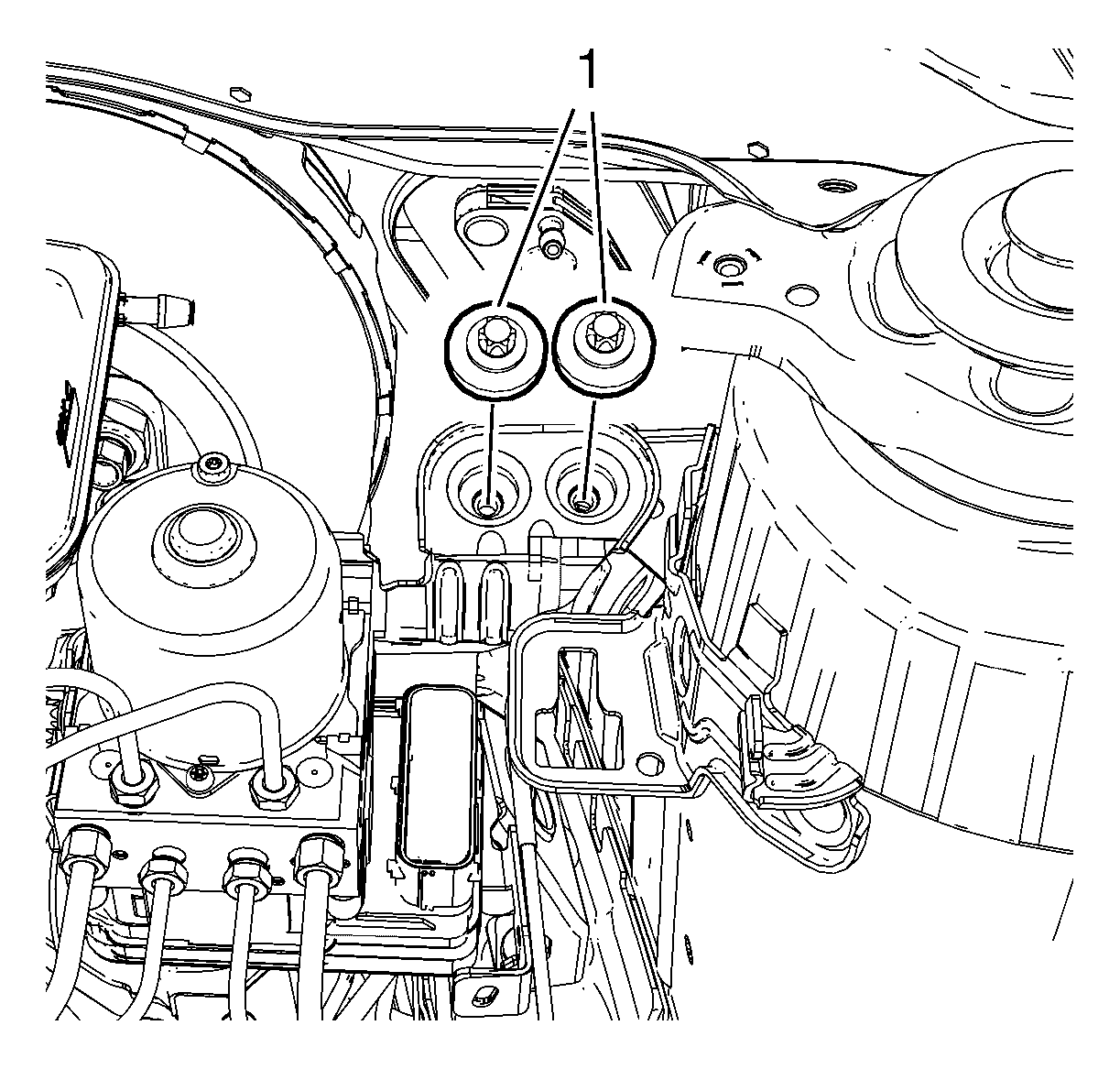

Fig 3: Brake Pressure Modulator Valve Bracket Bolts
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Install radiator surge tank (1).

Fig 4: View Of Radiator Surge Tank And Radiator Surge Tank Clip
Courtesy of GENERAL MOTORS COMPANY
Install radiator surge tank clip (2).
Bleed hydraulic clutch system. Refer to Hydraulic Clutch System Bleeding .
Install battery tray. Refer to Battery Tray Replacement .
