Removal Procedure

Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the transmission fluid cooler hose from the transmission. Refer to Transmission Fluid Cooler Hose Replacement .
Insert the collet piece (2) of the DT45201 seal remover into the cooler pipe seal (3).

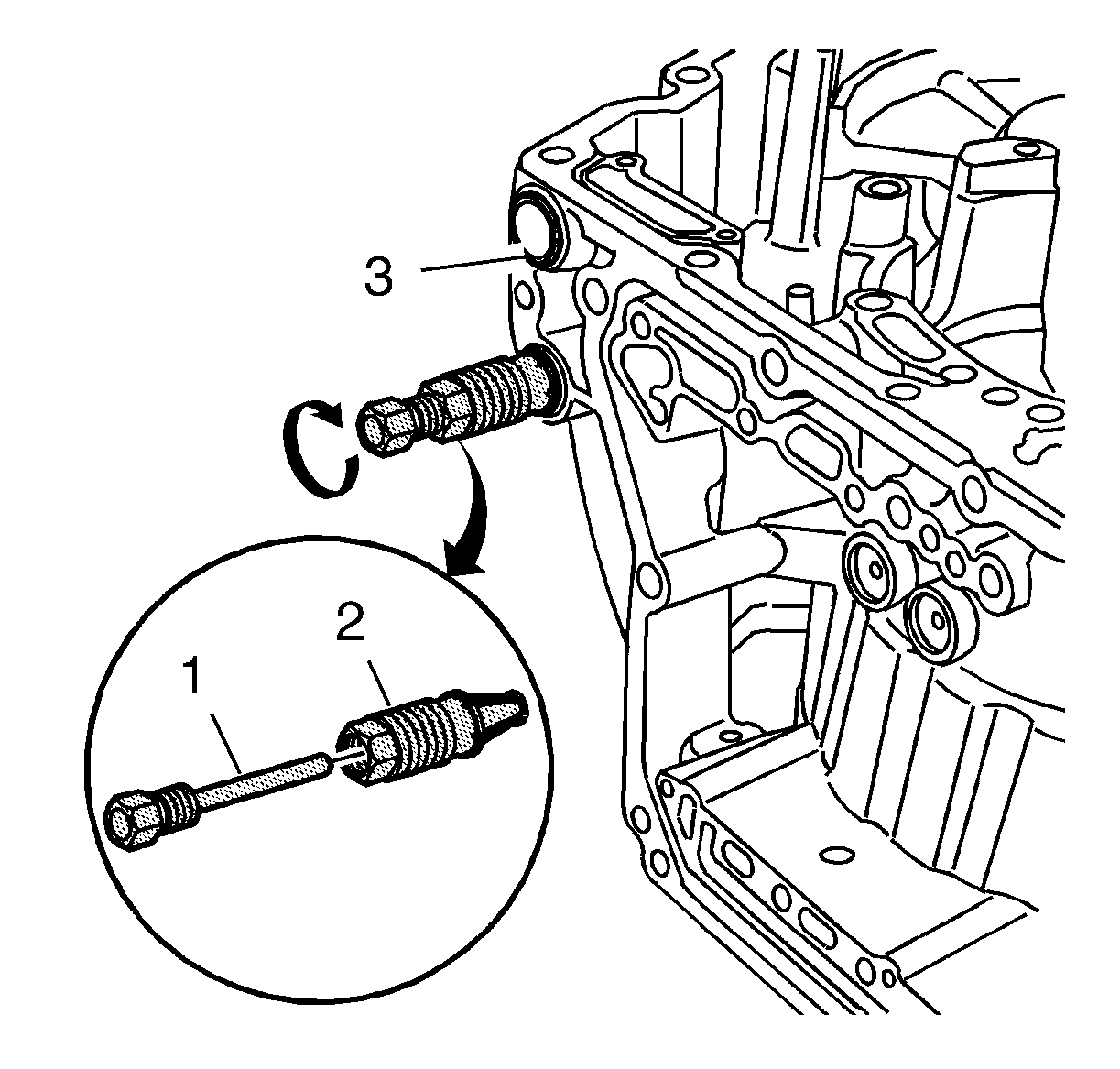

Fig 1: View Of Collet Piece And Cooler Pipe Seal
Courtesy of GENERAL MOTORS COMPANY

NOTE: Ensure that the DT-45201 seal remover is fully seated into the transmission seal bore.
Insert the forcing screw piece (1) of the DT-45201 seal remover into the collet (2).
Tighten the forcing screw (1) until snug.
Thread the collar piece (1) of the DT-45201 seal remover onto the collet (3) until snug.

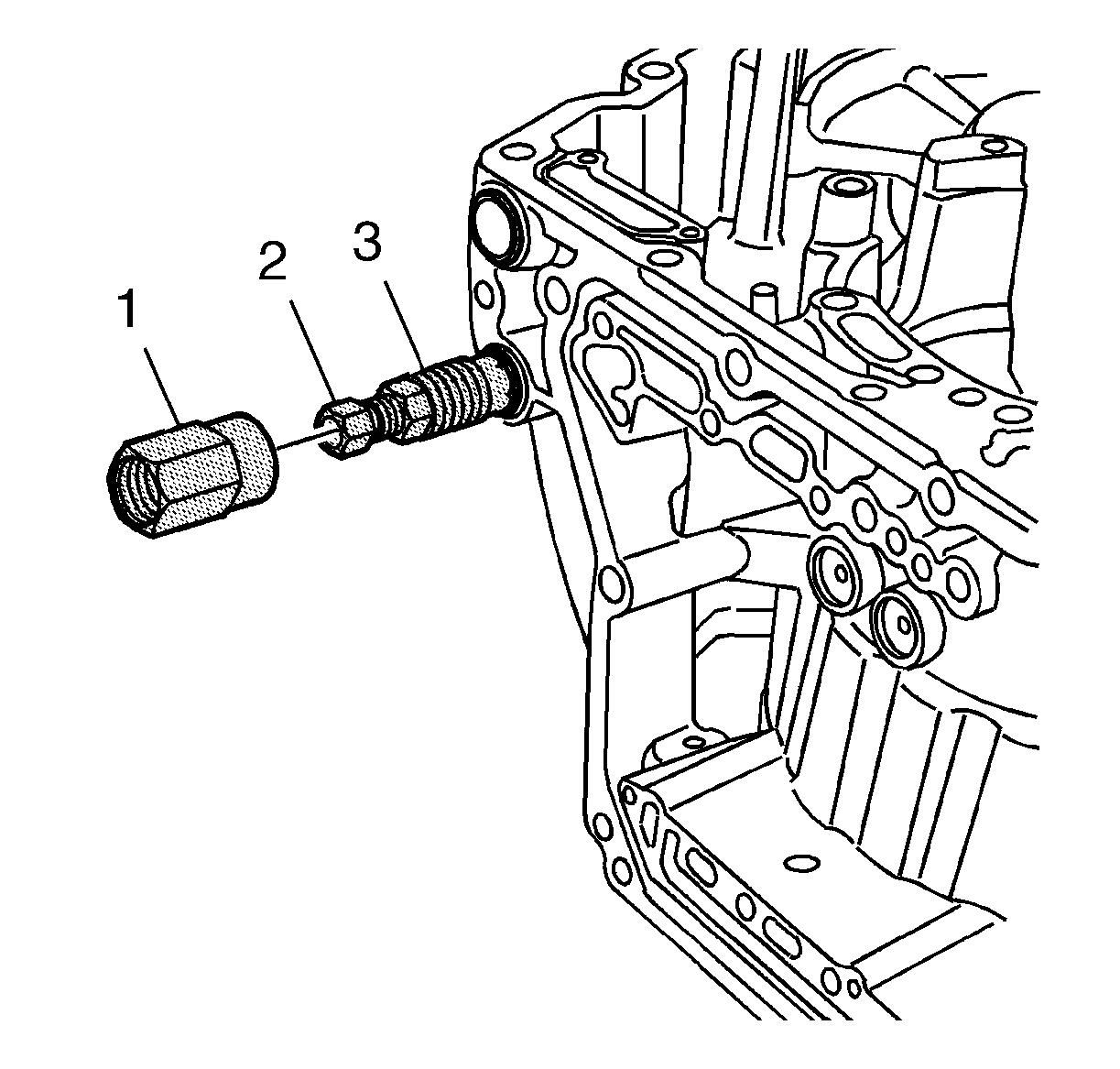

Fig 2: Threading Collar Piece Of Seal Remover
Courtesy of GENERAL MOTORS COMPANY
Turn the collar clockwise in order to remove the cooler pipe seal (1).

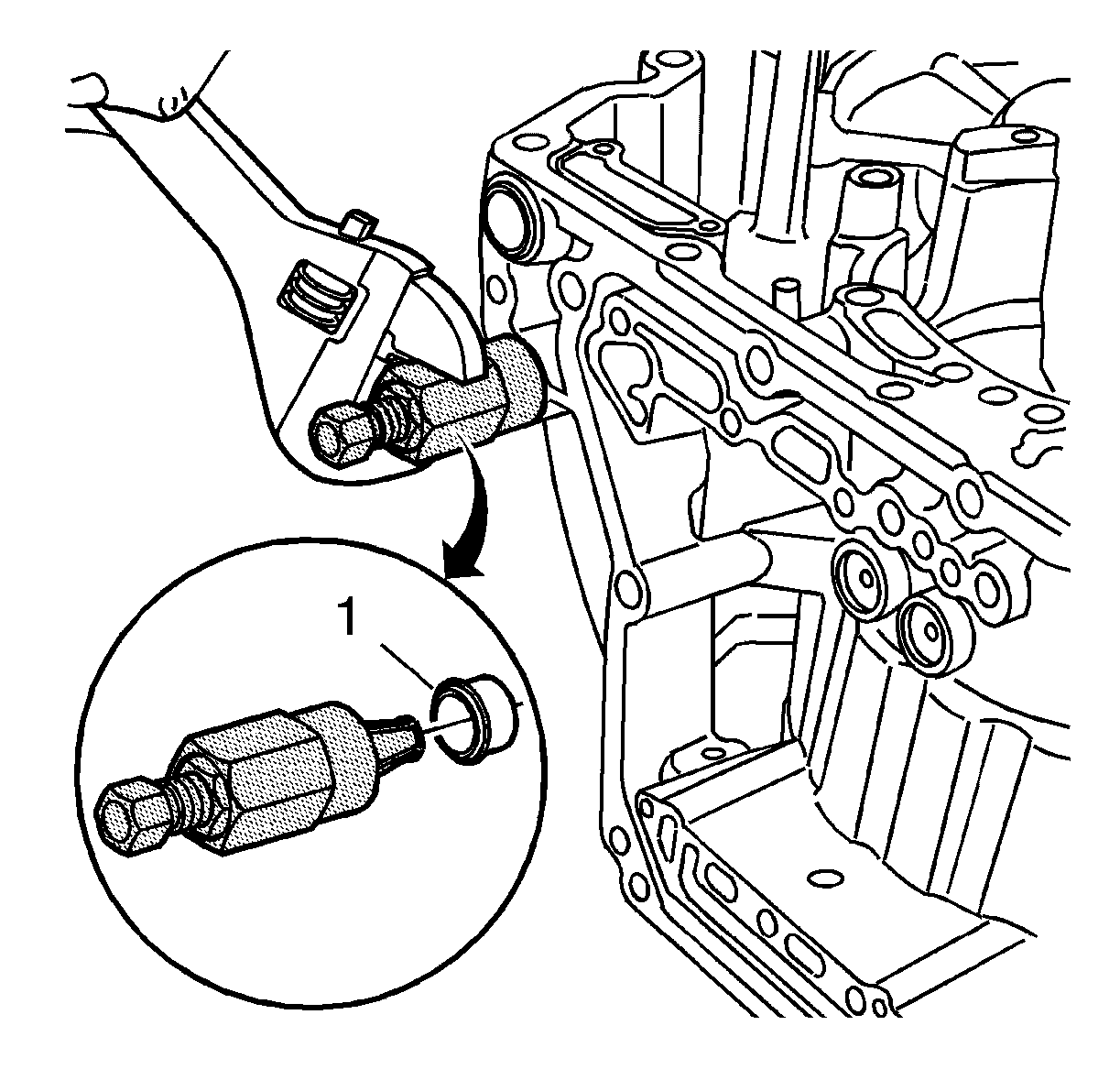

Fig 3: Removing Cooler Pipe Seal
Courtesy of GENERAL MOTORS COMPANY
Discard the seal (1).
Clean the case bores for the cooler pipe seals.
