Removal Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove front bumper fascia. Refer to Front Bumper Fascia Replacement .
  3. Remove the fluid level drain plug (1).
    Fig 1: Identifying Fluid Level Hole Plug
    GM1998836Courtesy of GENERAL MOTORS COMPANY
  4. Drain transmission fluid into a suitable container.
  5. Disconnect transmission fluid cooler pipe (2) from transmission fluid auxiliary cooler and radiator. Remove 2 retainers (1). Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection (6T30-MH9 and 6T40-MH8)  and Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection (AF40-MDK) .

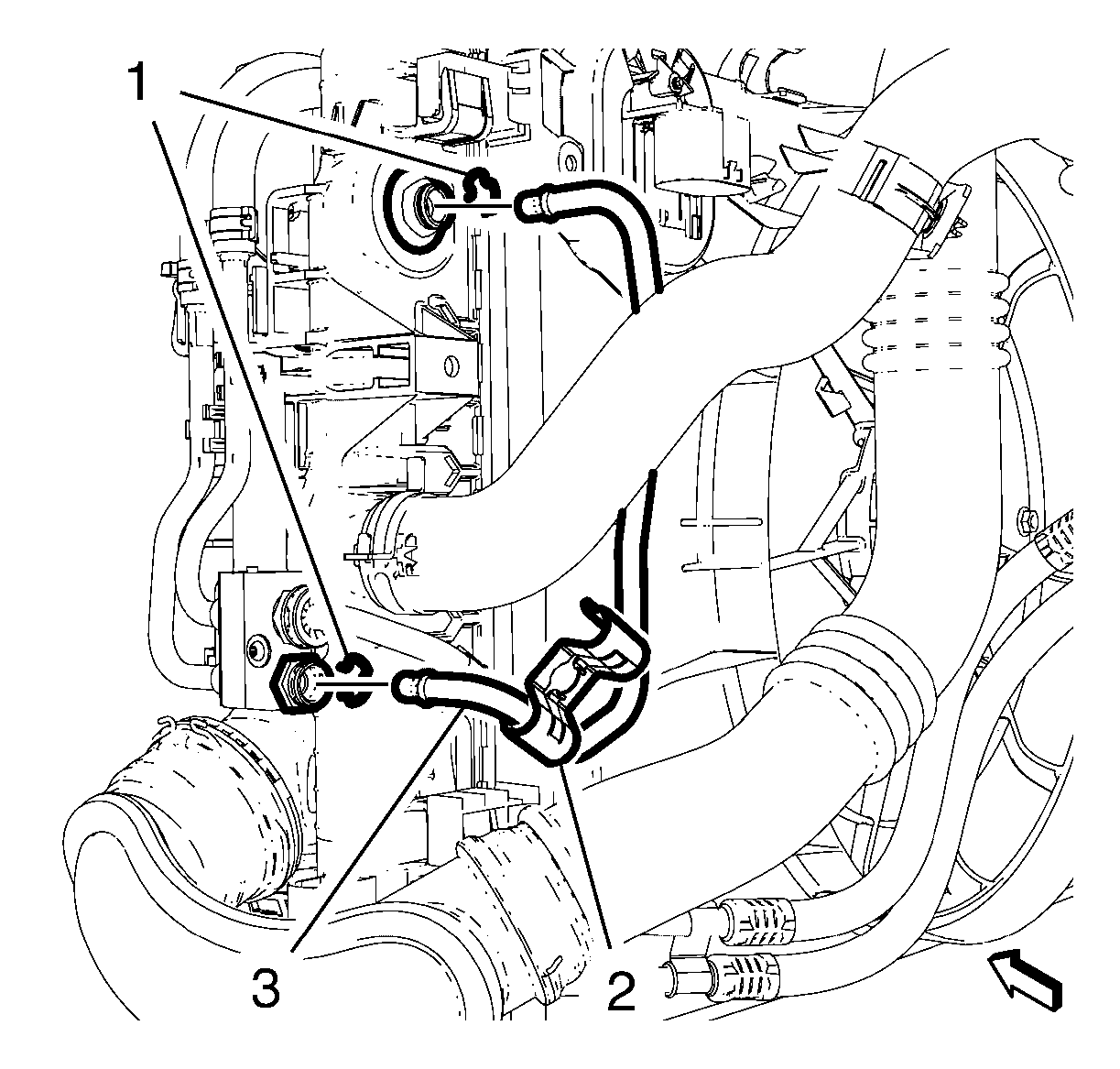

    Fig 2: Transmission Fluid Cooler Pipe
    GM2537980Courtesy of GENERAL MOTORS COMPANY
  6. Remove transmission fluid cooler pipe (2).
