Removal Procedure

  1. Remove the battery tray. Battery Tray Replacement .
  2. Raise and support the vehicle. Lifting and Jacking the Vehicle .
  3. Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  4. Remove the plastic caps (2) back from the quick connect fittings (1) and down along the pipes (3). Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection (6T30-MH9 and 6T40-MH8)  and Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection (AF40-MDK) .

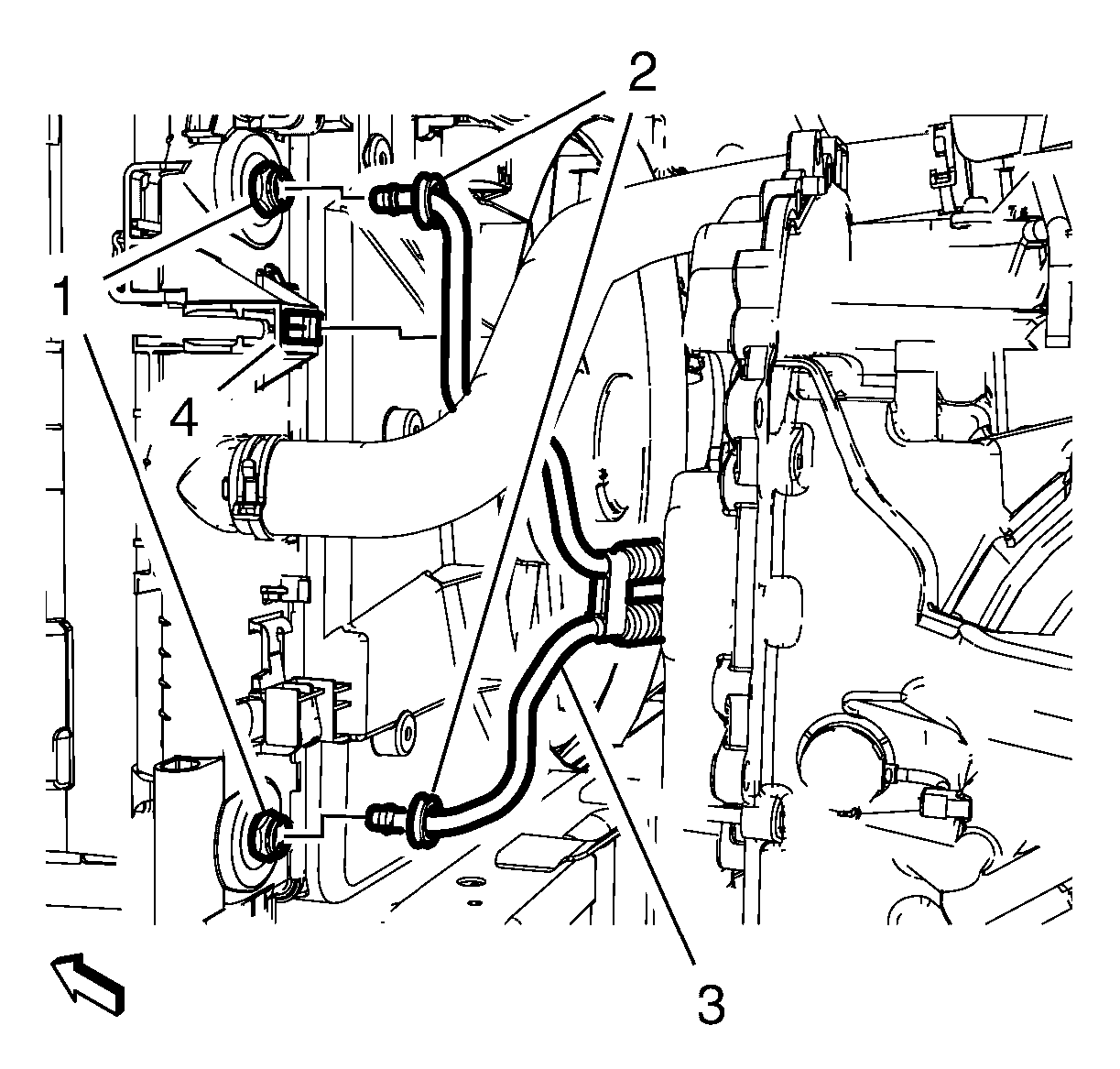

    Fig 1: Plastic Clips And Outlet Pipe
    GM3288746Courtesy of GENERAL MOTORS COMPANY
  5. Remove the transmission fluid cooler outlet pipe from the clip on the fan shroud (4).
  6. Plug and/or cap the pipes and the transmission fluid cooler connectors to prevent contamination.
  7. Note the routing of the transmission line to ensure proper installation.
  8. Raise the vehicle.

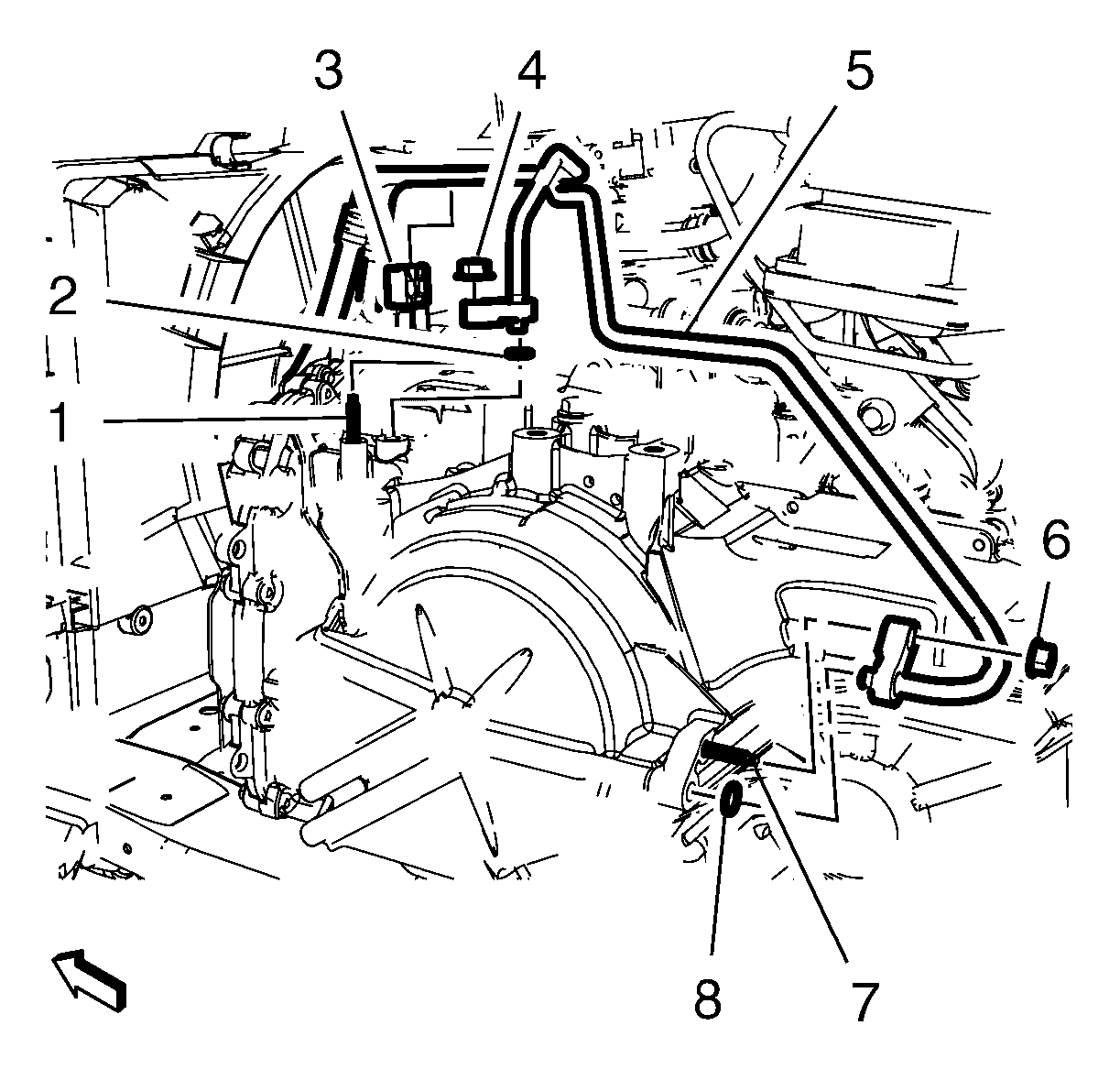

    Fig 2: Inlet Pipe And Transmission Housing Clip
    GM3288747Courtesy of GENERAL MOTORS COMPANY
  9. Remove the nut (6) from the transmission fluid cooler outlet pipe fitting bolt (7).
  10. Lower the vehicle.
  11. Remove the nut (4) from the transmission fluid cooler inlet pipe fitting bolt (1).
  12. Remove the transmission fluid cooler inlet and outlet pipe (5) from the transmission housing clip (3).
  13. Plug and/or cap the pipe and the transmission to prevent contamination.
  14. Remove the transmission fluid cooler inlet and outlet pipe from the vehicle.
  15. Remove and DISCARD the O-rings (2, 8) from the transmission fluid cooler inlet and outlet pipe.
