Forward Flush

  1. Disconnect the supply and waste hoses from the vehicle cooler lines. Reverse the supply and waste hoses to provide a normal flow direction.

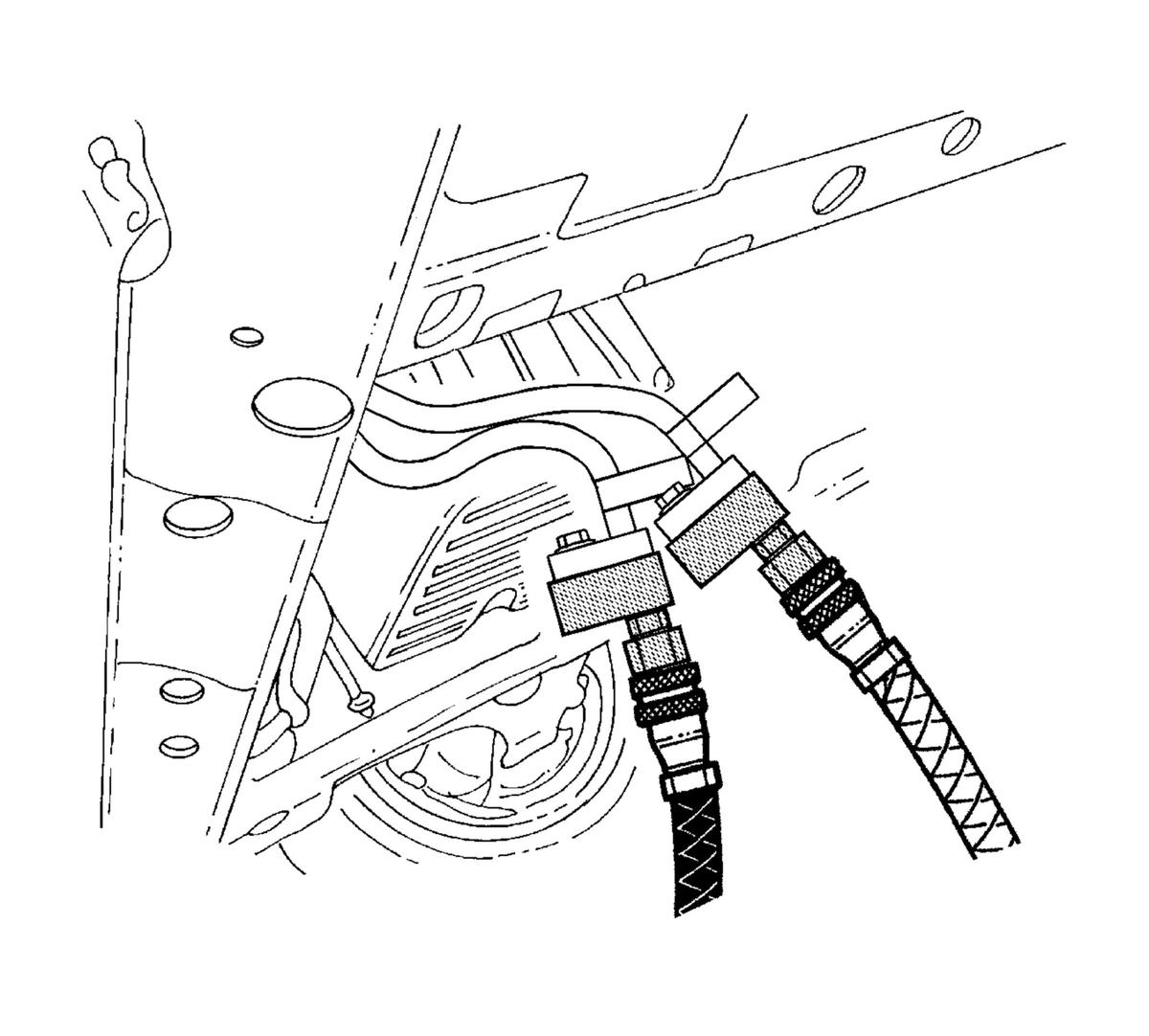

    Fig 1: Identifying Supply And Waste Hoses
    GM1765261Courtesy of GENERAL MOTORS COMPANY
  2. Turn the main function switch to the FLUSH position and allow machine to operate for 30 seconds.

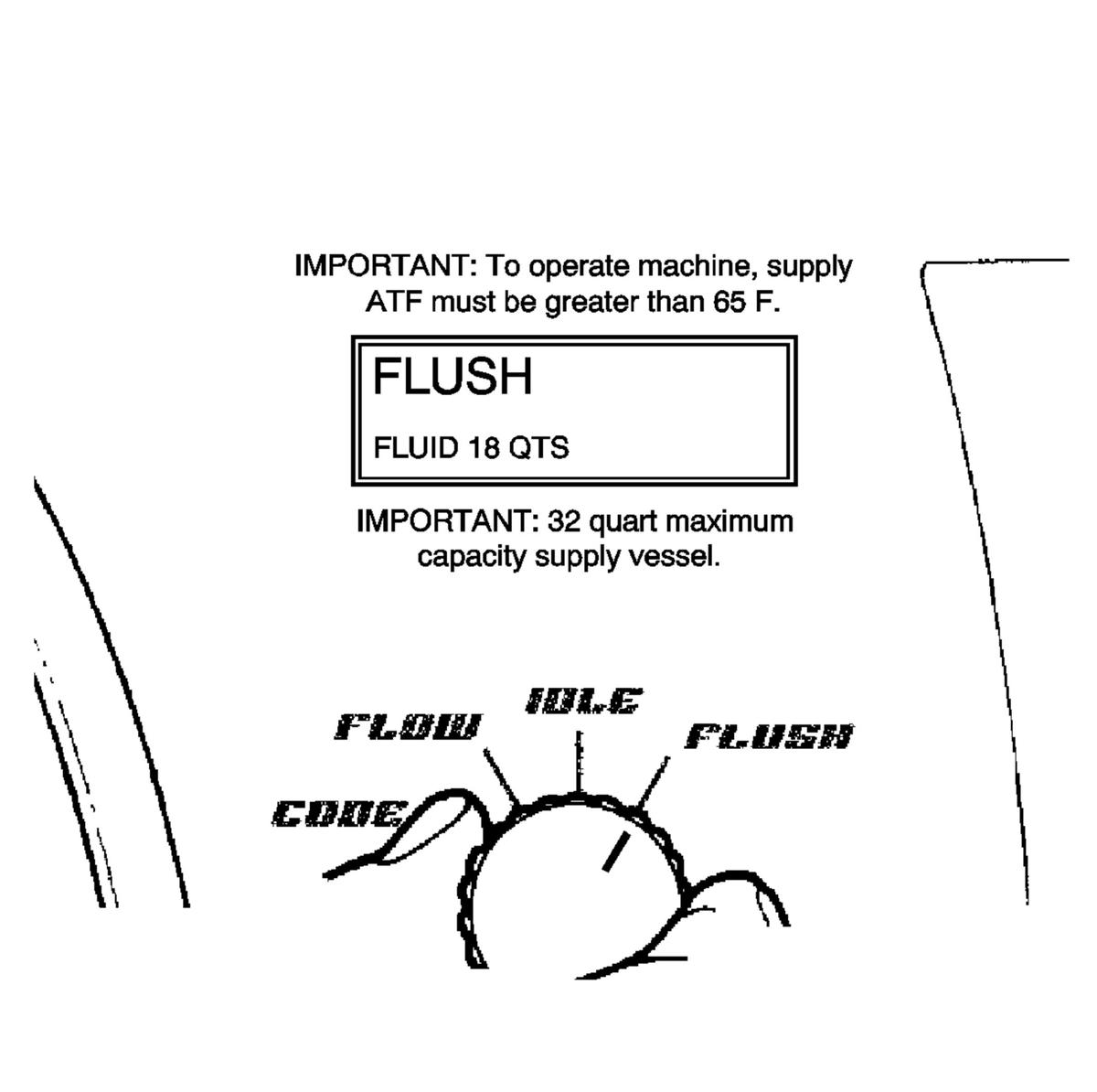

    Fig 2: View Of Main Function Switch FLUSH Position
    GM1212343Courtesy of GENERAL MOTORS COMPANY
