Temperature and Speed Sensors, Manual Valve, Pressure Controls and Shift Controls

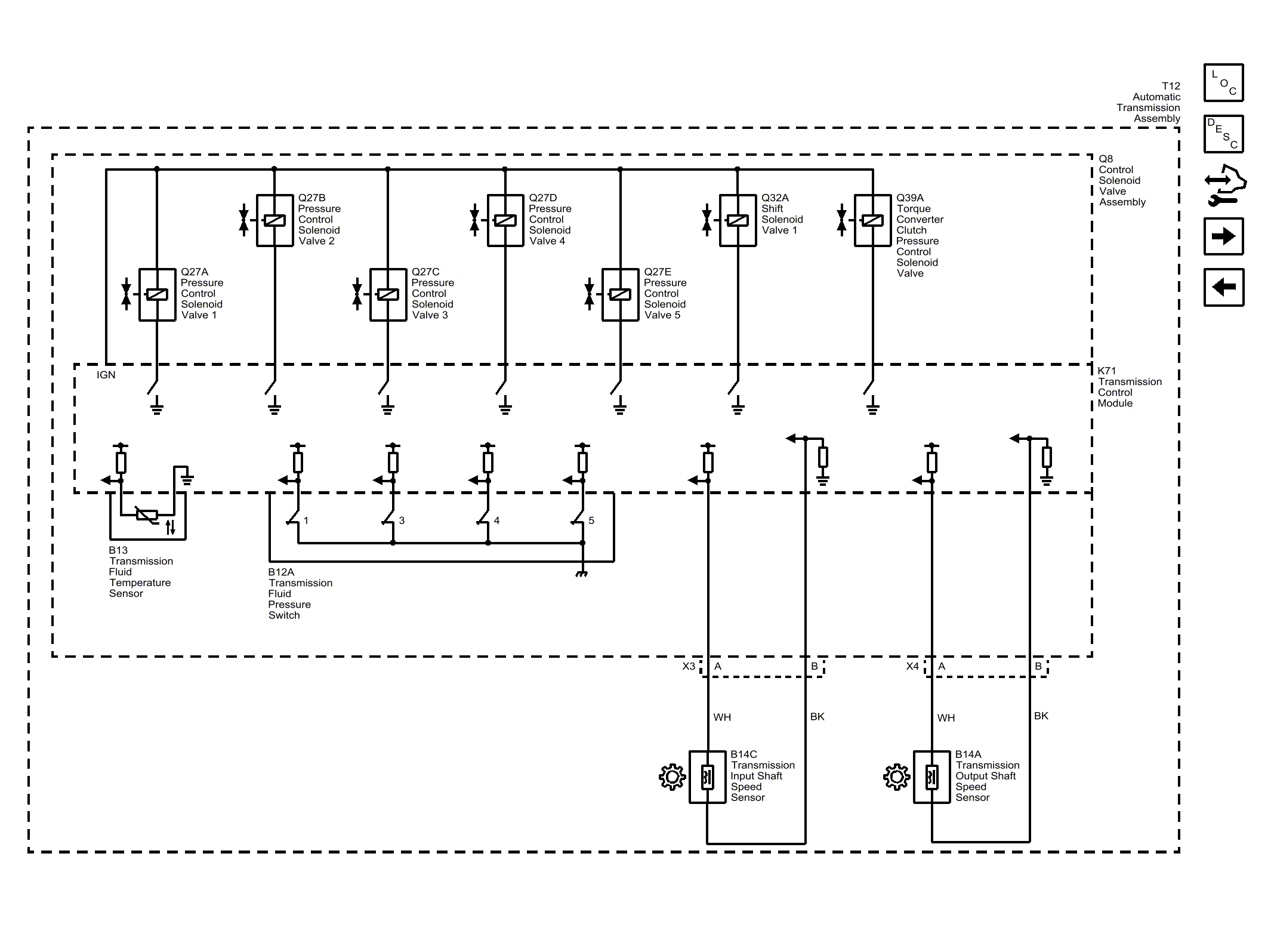

Fig 1: Temperature and Speed Sensors, Manual Valve, Pressure Controls and Shift Controls
GM3814598Courtesy of GENERAL MOTORS COMPANY
