Installation Procedure

Install the left transmission mount (3) to the vehicle.

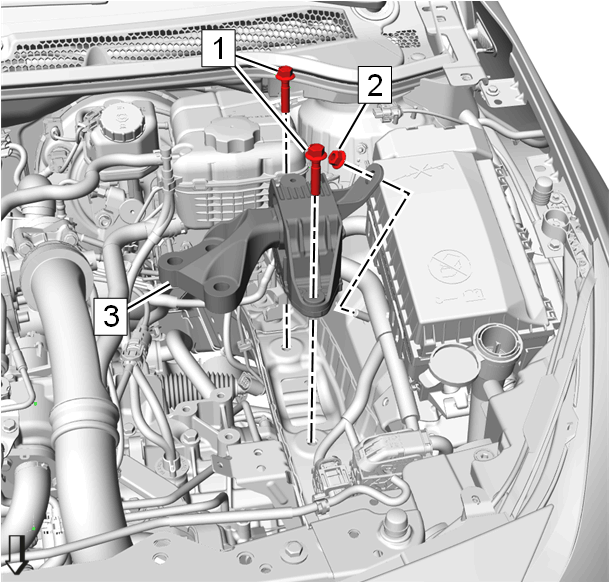

Fig 1: Left Transmission Mount
Courtesy of GENERAL MOTORS COMPANY
Install the transmission mount to the body bolts (1) and tighten to 62 N.m (46 lb ft).
CAUTION: Refer to Fastener Caution .
Install the transmission mount to the body nut (2) and tighten to 62 N.m (46 lb ft).
Install the 3 NEW transmission mount bolts (1) and tighten a first pass to 50 N.m (37 lb ft).

Fig 2: Automatic Transmission Mount Bracket Bolts
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Torque-to-Yield Fastener Caution .
Tighten the 3 NEW transmission mount bolts (1) a final pass to an additional 60-75 degrees, using the EN-45059 meter.
Install the battery tray. Refer to Battery Tray Replacement .
