Installation Procedure

  1. Install the transmission front mount (2).

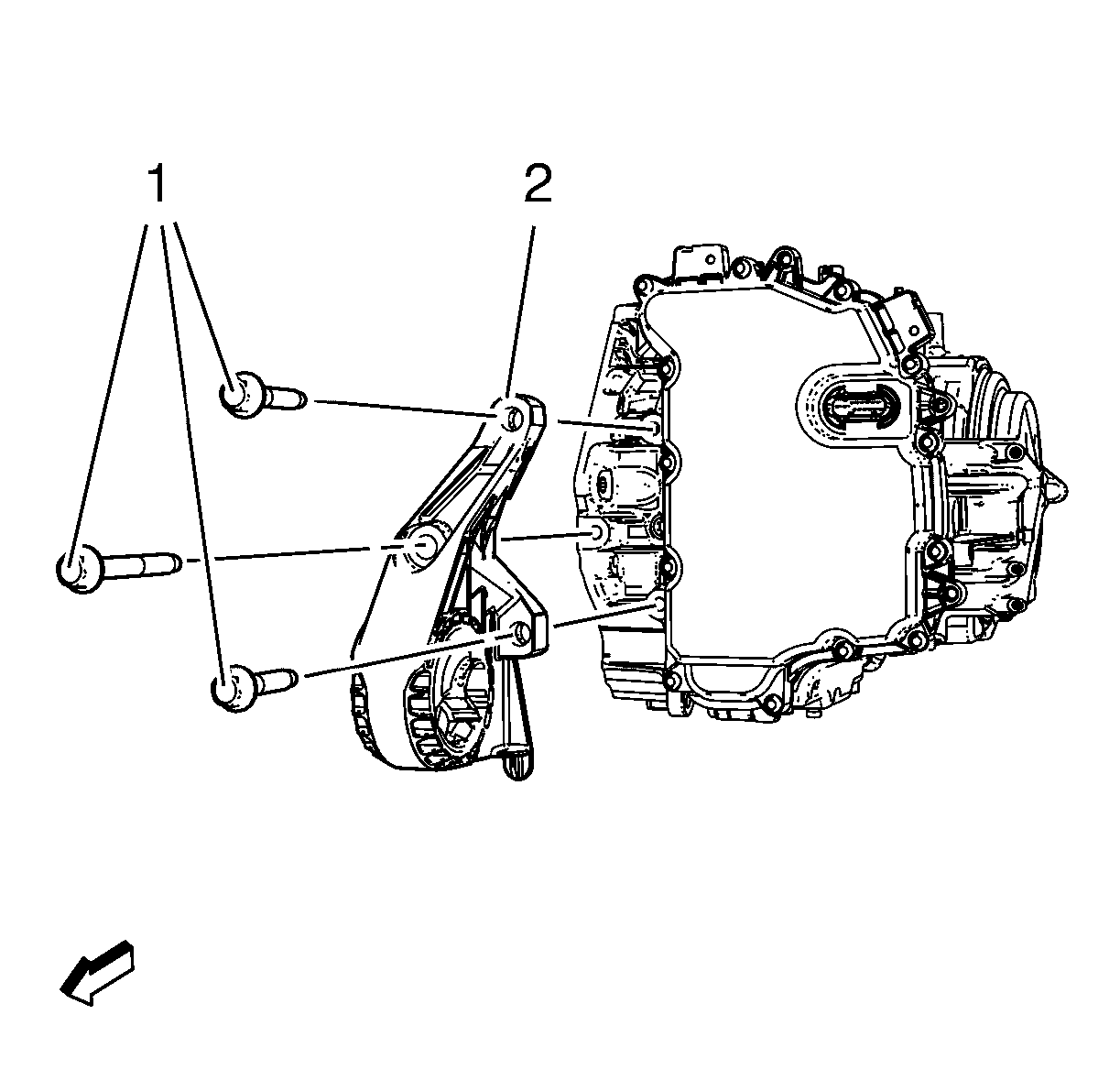

    Fig 1: Automatic Transmission Mount Bolts
    GM2027412Courtesy of GENERAL MOTORS COMPANY
  2. Install the transmission front mount bolts (1) and tighten to 62 N.m (46 lb ft).
    CAUTION: Refer to Fastener Caution .
  3. Install the transmission front mount through bolt (1) and tighten to 100 N.m (74 lb ft).
    Fig 2: Front Transmission Mount Through Bolt
    GM2027411Courtesy of GENERAL MOTORS COMPANY
  4. Remove the jack stand.
  5. Lower the vehicle.
