Removal Procedure

  1. Set the park brake and chock the wheels.
  2. Remove the battery tray. Refer to Battery Tray Replacement .
  3. Disconnect the range selector cable end (1) from the range selector lever.
    Fig 1: View Of Transmission Range Selector Lever & Cable Connection
    GM2001179Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the range selector cable (2) from the range selector cable bracket.
  5. Remove the transmission range selector cable bracket bolts (1).

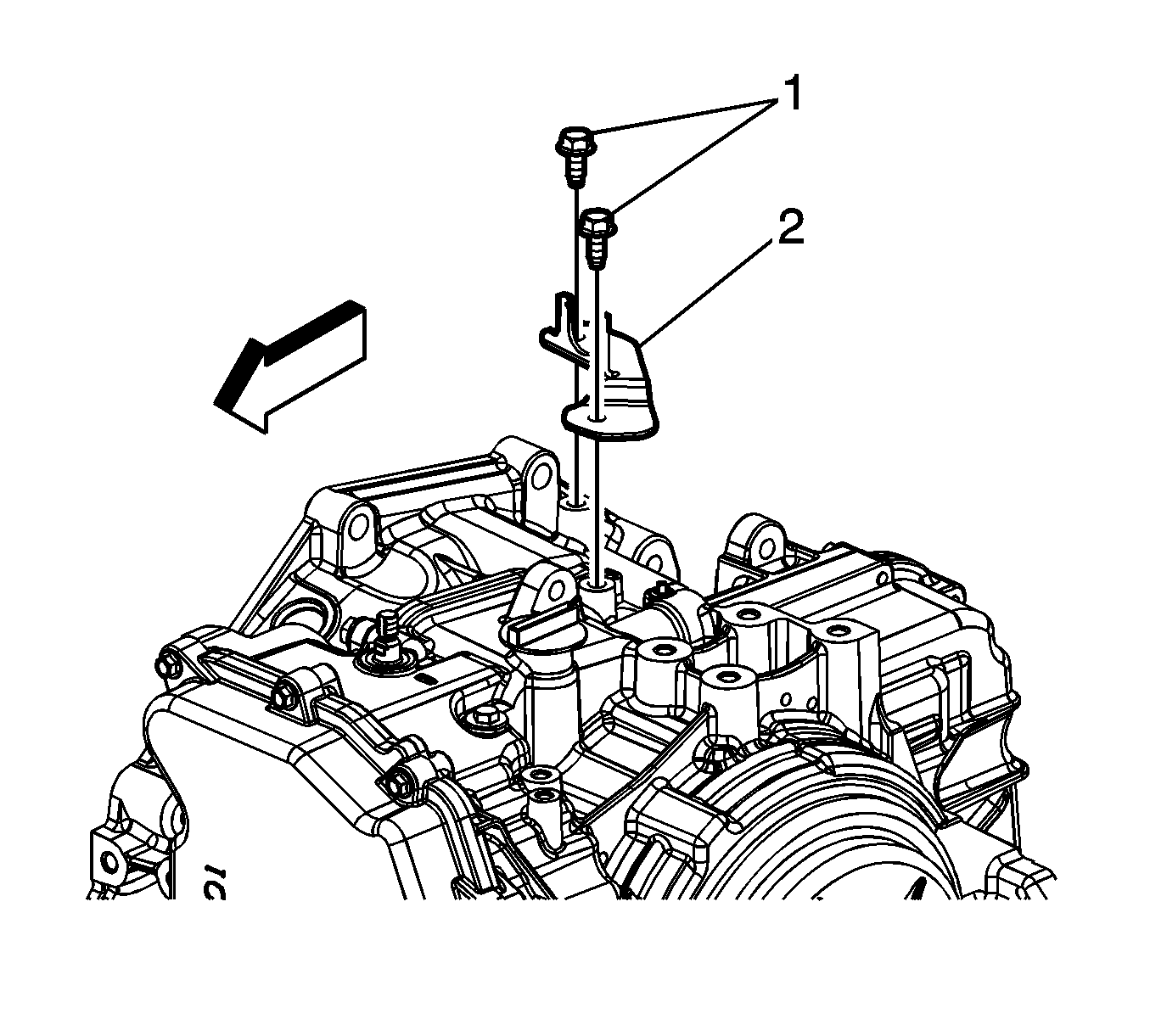

    Fig 2: Identifying Selector Cable Bracket & Bolts
    GM1998668Courtesy of GENERAL MOTORS COMPANY
  6. Remove the transmission range selector cable bracket (2).
