Removal Procedure

  1. Set the park brake and chock the wheels.
    NOTE: Adjust the automatic transmission range selector cable while the transmission and the gear selector are in the Park position only. Failure to do so may cause miss-adjustment.
  2. Remove range selector lever cable adjust lock (1).

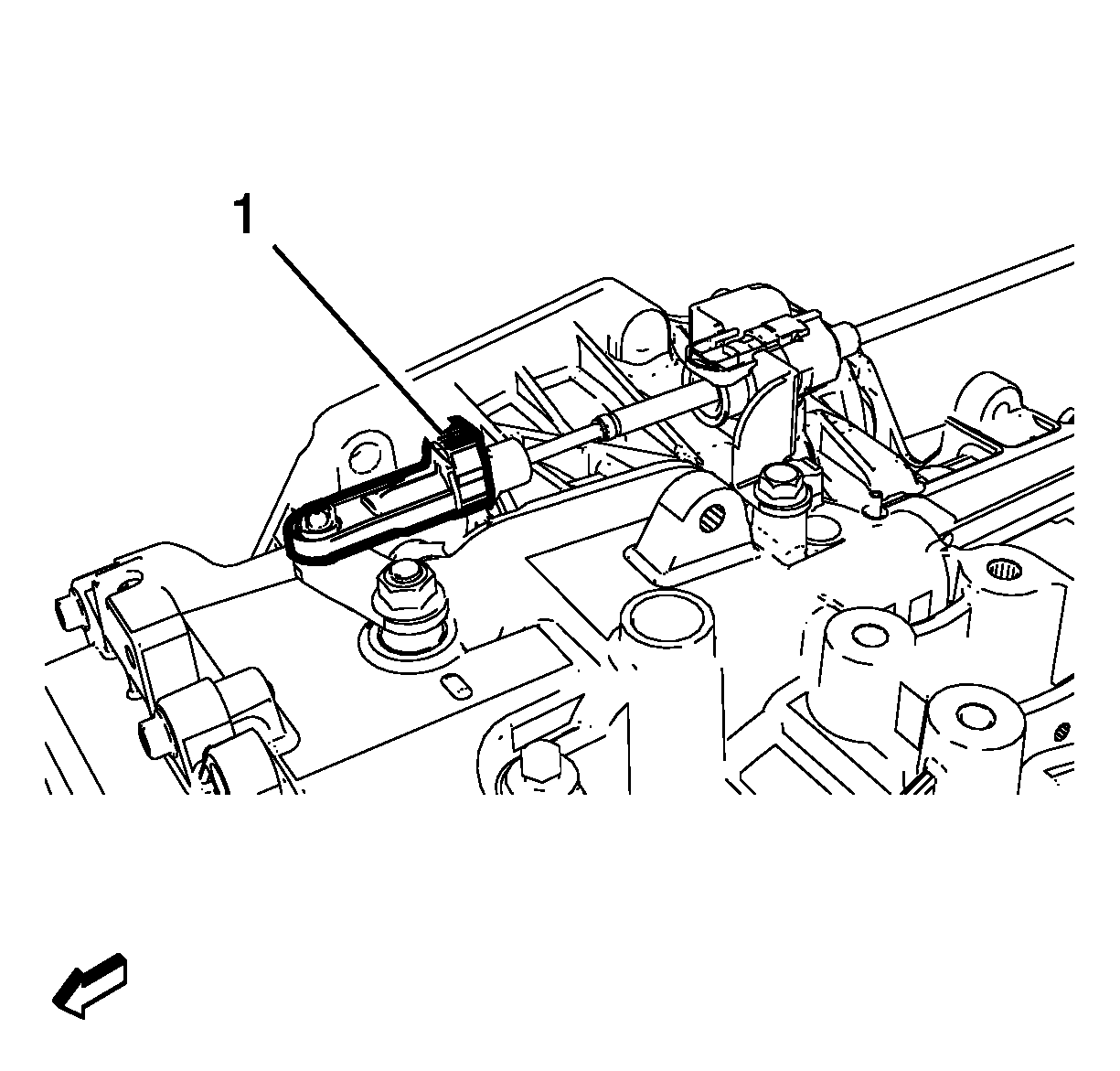

    Fig 1: Automatic Transmission Range Selector Lever Cable Adjust Lock
    GM2373478Courtesy of GENERAL MOTORS COMPANY
