Installation Procedure

  1. Install the transmission range selector lever (2).

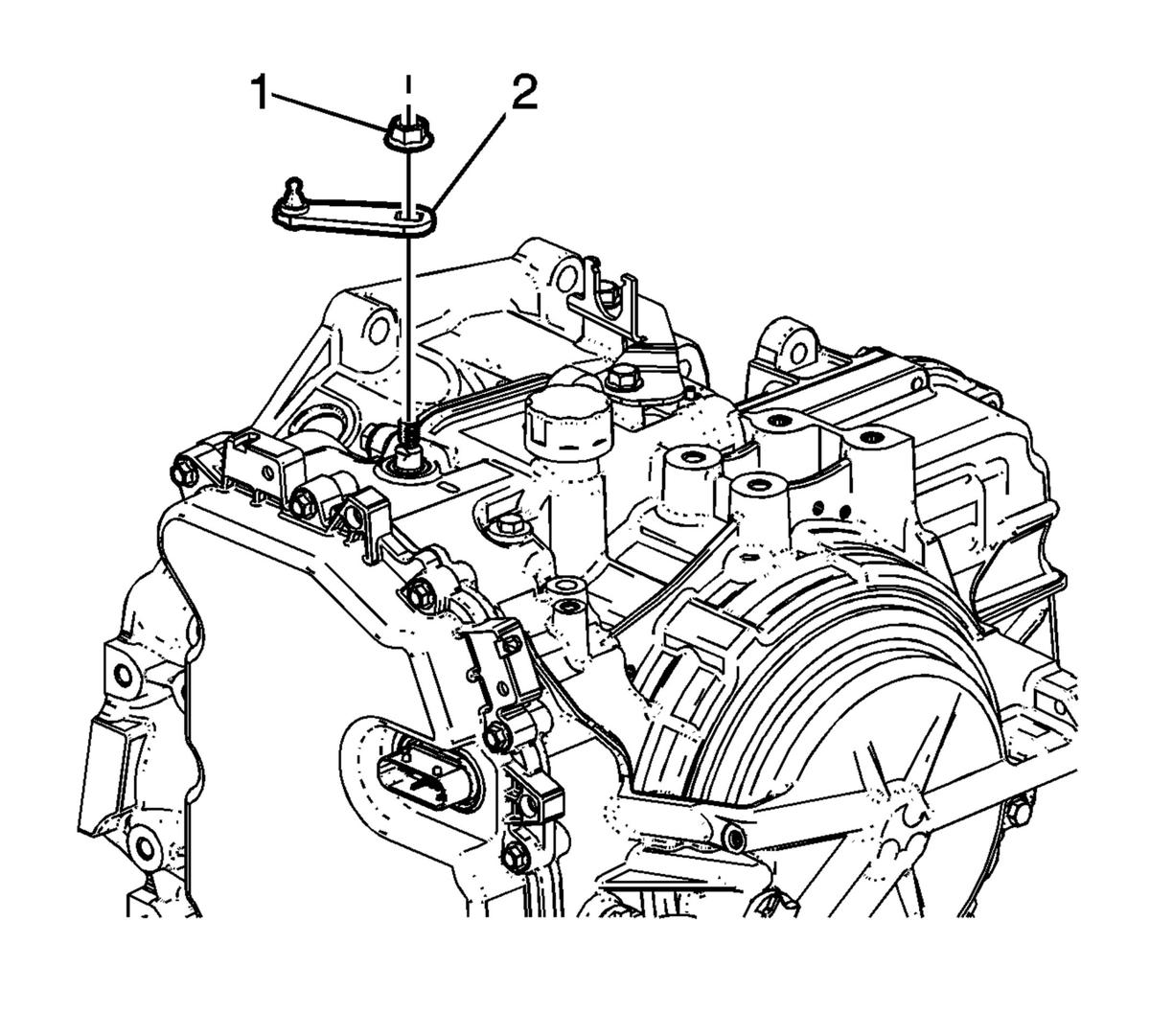

    Fig 1: View Of Transmission Range Selector Lever
    GM2001183Courtesy of GENERAL MOTORS COMPANY
    WARNING: Hold the transmission range selector lever while removing or installing the lever retaining nut. Excessive torque on the manual shaft can damage the detent lever hub retainer which could allow the vehicle to roll when placed in the park position.
  2. Install the transmission range selector lever nut (1) and tighten to 30 N.m (22 lb ft).
    CAUTION: Refer to Fastener Caution .
  3. Install the transmission range selector lever cable (2) to the cable bracket.
    Fig 2: View Of Transmission Range Selector Lever & Cable Connection
    GM2001179Courtesy of GENERAL MOTORS COMPANY
  4. Connect the transmission range selector lever cable terminal (1) to the transmission manual shift lever pin.
  5. Check the range selector cable adjustment. Refer to Range Selector Lever Cable Adjustment .
  6. Install the battery tray. Refer to Battery Tray Replacement .
