Fluid Pump Disassemble
Fluid Pump Disassemble

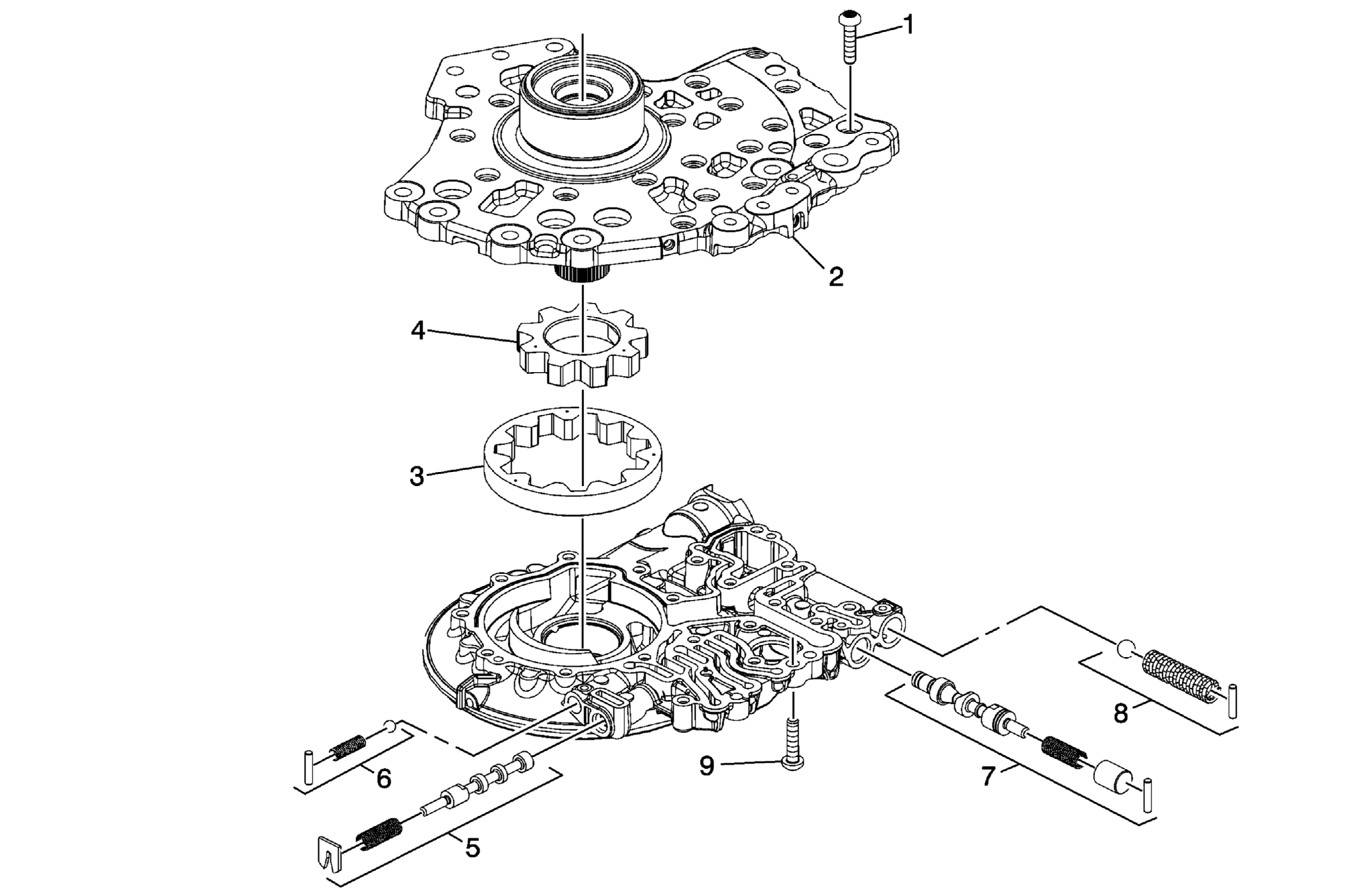

| Callout | Component Name |
|---|---|
|
WARNING:
Valve springs can be tightly compressed. Use care when removing retainers and plugs. Personal injury could result.
CAUTION:
After cleaning the transmission components, allow to air dry. Do not use cloth or paper towels in order to dry any transmission components. Lint from the towels can cause component failure.
CAUTION:
Do not reuse cleaning solvents. Previously used solvents may deposit sediment which may damage the component. Preliminary Procedure Clean and inspect all valve components and the pump body for wear and/or damage. |
|
| 1 | Fluid Pump Cover Bolts M6 x 21.5 (Qty: 20)
NOTE:
There are 3 bolts on the pump cover side and 20 bolts on the pump body side.
|
| 2 | Fluid Pump Cover |
| 3 | Fluid Pump Driven Gear |
| 4 | Fluid Pump Drive Gear |
| 5 | TCC Control Valve Train |
| 6 | Fluid Pump Blow Off Ball Valve Train |
| 7 | Pressure Regulator Valve Train |
| 8 | TCC Blow Off Ball Valve Train |
| 9 | Fluid Pump Cover Bolts M6 x 18.5 (Qty: 3) |
