Torque Converter Housing with Fluid Pump Assembly Installation (6T30)

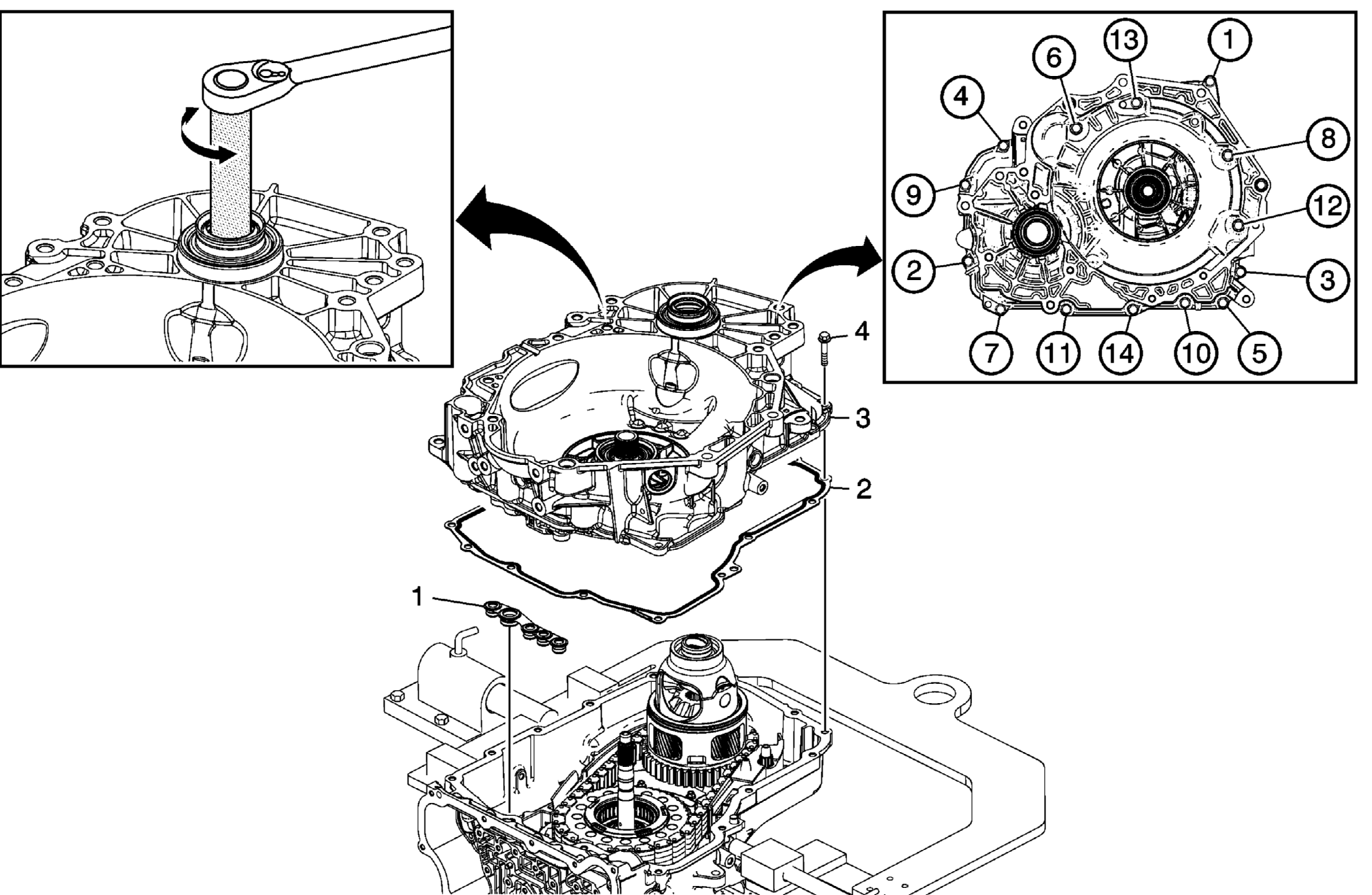

| Callout | Component Name |
|---|---|
| 1 | Fluid Pump Seal Assembly |
| 2 | Torque Converter Housing Gasket |
| 3 | Torque Converter (w/Fluid Pump) Housing Assembly
NOTE:
Rotate the differential slightly in each direction using DT-48277
rotating tool to align the Differential Pinion Gears with the Differential Ring Gear in the Torque Converter Housing. Special Tool DT-48277 Differential Rotating Tool For equivalent regional tools, refer to Special Tools . |
| 4 | Torque Converter and Differential Housing Bolts M8 x 30 (Qty: 14)
CAUTION:
Refer to Fastener Caution
. Procedure Tighten the bolts in sequence shown. Tighten 10 N.m (89 lb in) then rotate the bolt an additional 50 degrees Special Tool EN-45059 Angle Meter or equivalent For equivalent regional tools, refer to Special Tools . |
