Control Valve Body Assembly Assemble (Gen 1)

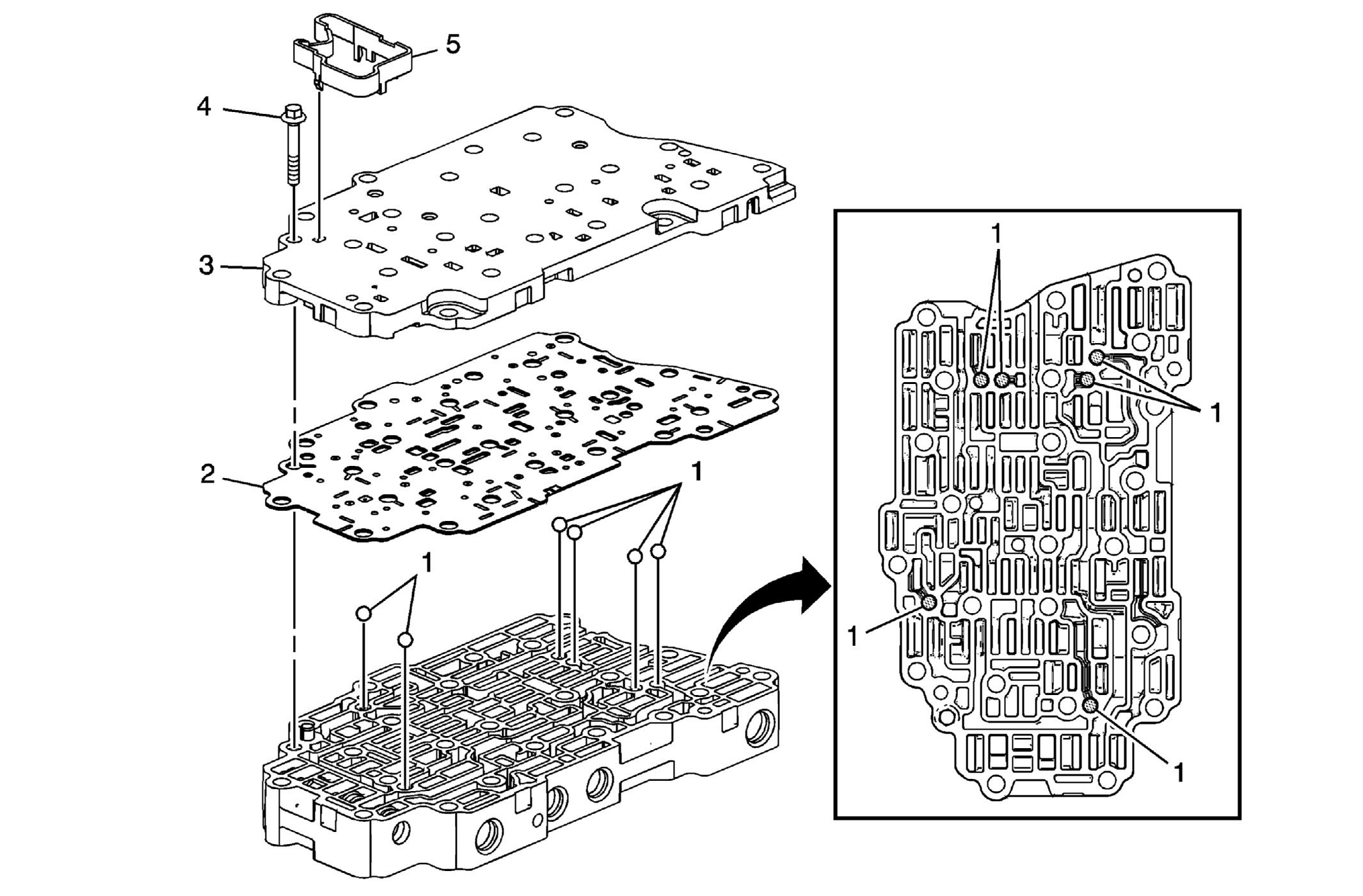

Fig 1: View Of Control Valve Body Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Valve Body Ball Check Valve (Qty: 6)
2	Control Valve Channel Plate Spacer Plate Assembly
3	Valve Channel Plate NOTE: Inspect the channel plate bolt pass through holes for damage or brinelling. Any damage could cause leaking. Replace as necessary.
4	Control Valve Body Bolt M5 x 40.5 (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten  7 N.m (62 lb in)
5	Control Solenoid Valve Support
