4-5-6 Clutch Plate Removal

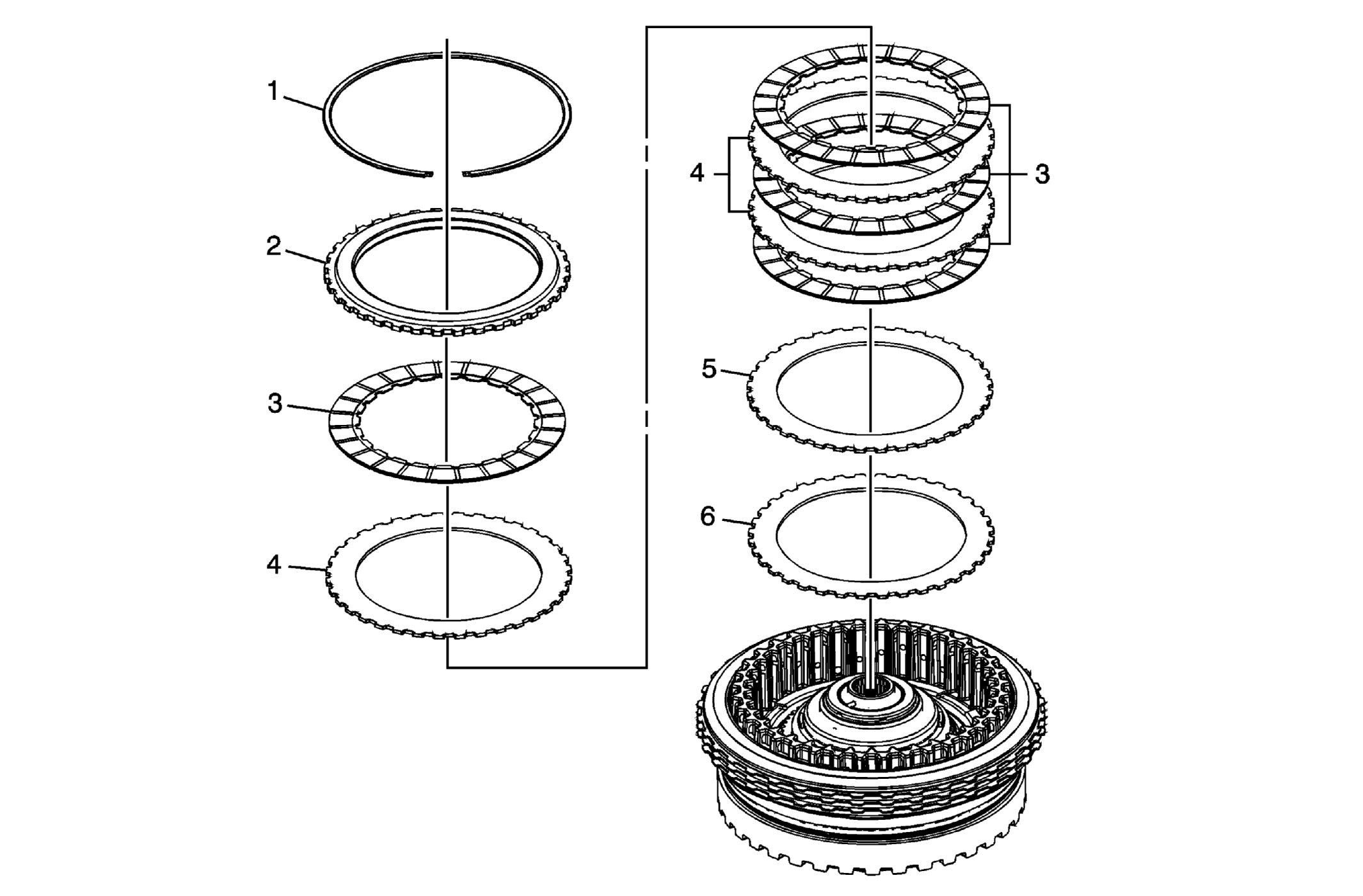

Courtesy of GENERAL MOTORS COMPANY 4-5-6 Clutch Plate Removal
| Callout |
Component Name |
| 1 |
4-5-6 Clutch Backing Plate Retaining Ring |
| 2 |
4-5-6 Clutch Backing Plate |
| 3 |
4-5-6 Clutch Plate Assembly (Qty: 4) |
| 4 |
4-5-6 Clutch Plate (Qty: 3) |
| 5 |
4-5-6 Clutch Apply Plate |
| 6 |
4-5-6 Clutch Wave Plate |
