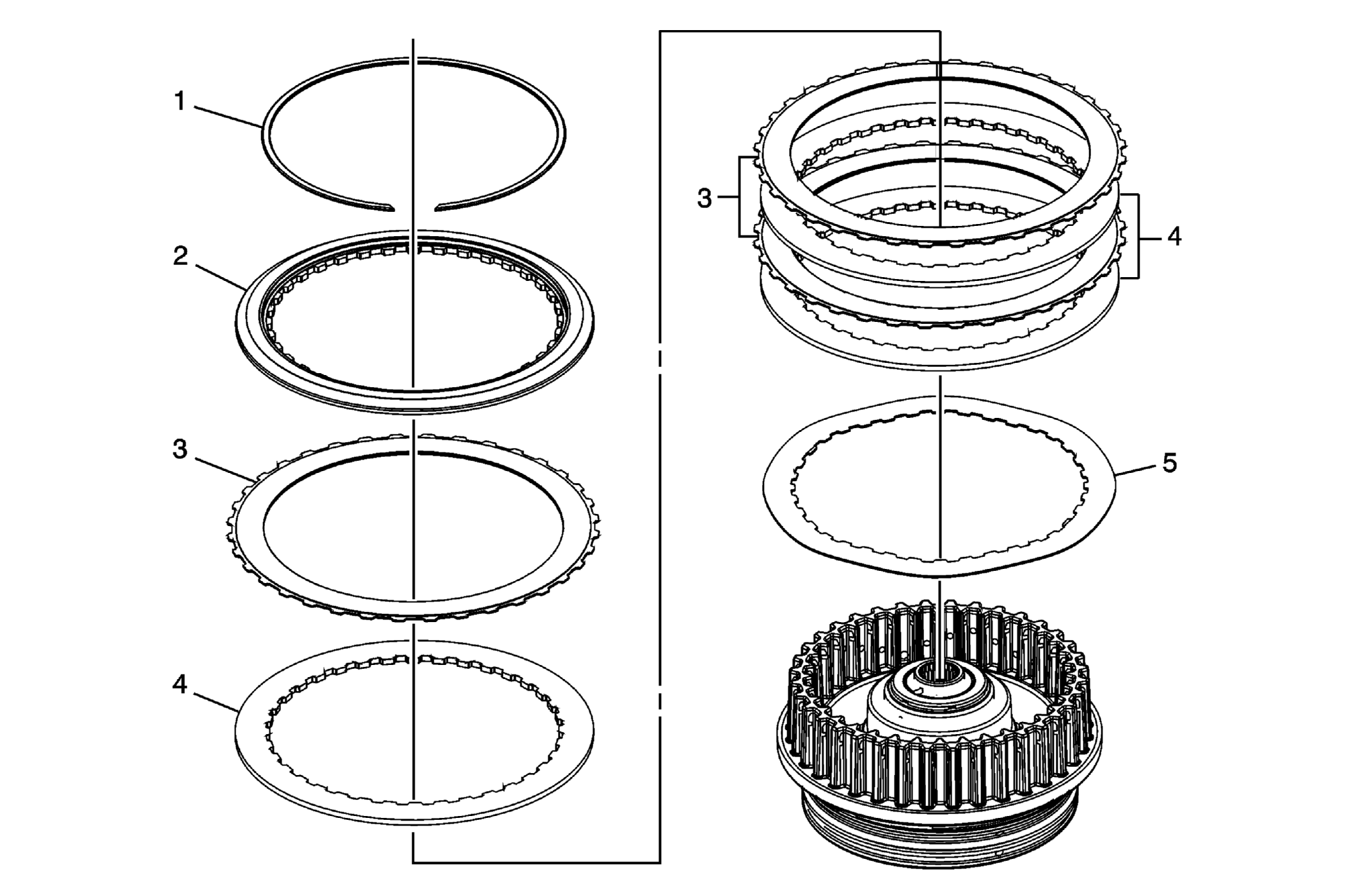

3-5 Reverse Clutch Plate Removal
3-5 Reverse Clutch Plate Removal
| Callout | Component Name |
|---|---|
| 1 | 3-5 Reverse Clutch Backing Plate Ring Retainer Ring
NOTE:
Gently push down on the backing plate to get enough clearance between the backing plate and retainer.
|
| 2 | 3-5 Reverse Clutch Backing Plate |
| 3 | 3-5 Reverse Clutch Plate Assembly (Qty: 3) |
| 4 | 3-5 Reverse Clutch Plate (Qty: 3) |
| 5 | 3-5 Reverse Clutch Apply Plate (Waved) |
