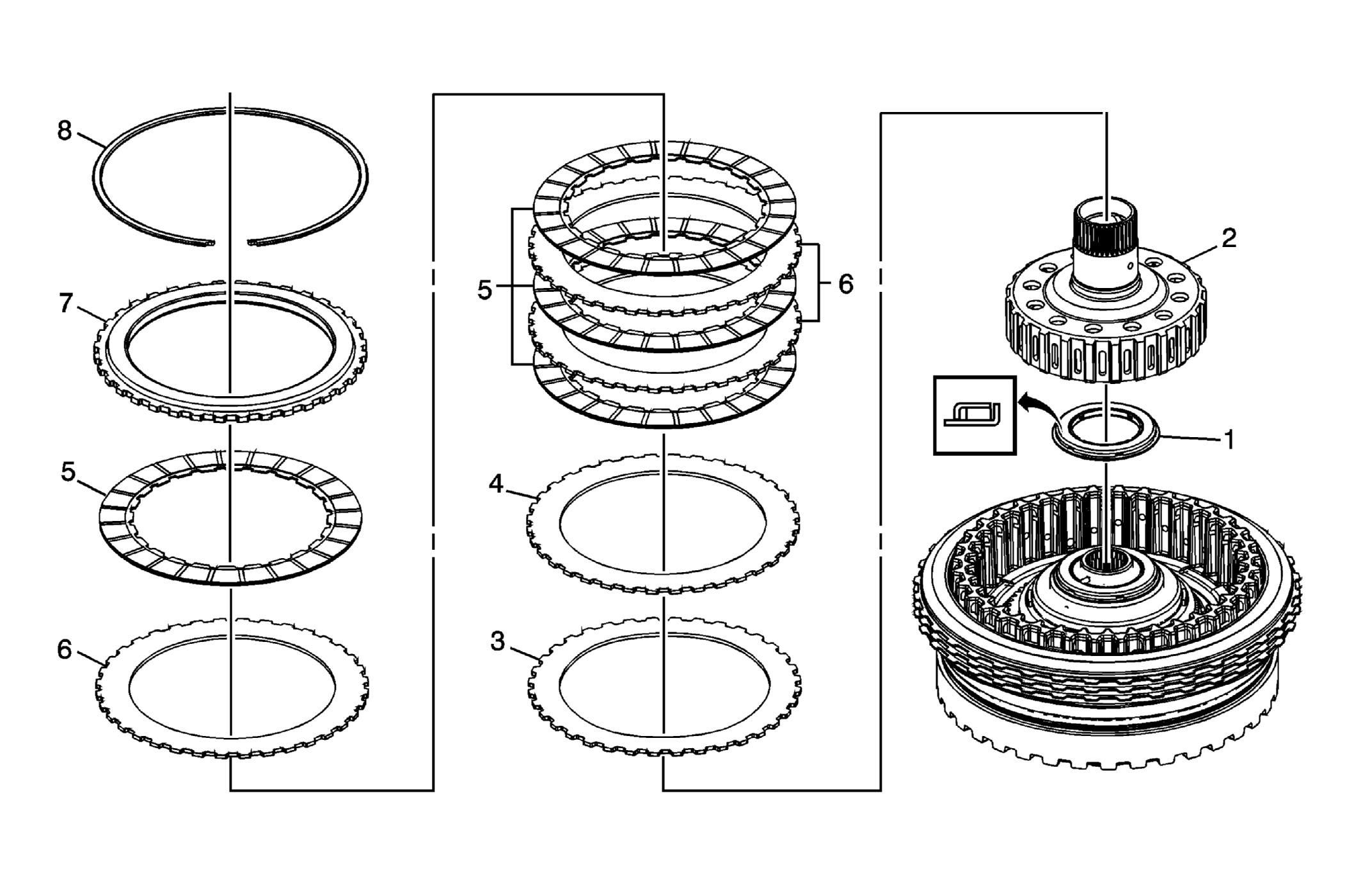

4-5-6 Clutch Plates Installation
4-5-6 Clutch Plates Installation
| Callout | Component Name |
|---|---|
| 1 | Reaction Carrier Hub Thrust Bearing Assembly |
| 2 | Reaction Carrier Hub Assembly |
| 3 | 4-5-6 Clutch Wave Plate |
| 4 | 4-5-6 Clutch Apply Plate |
| 5 | 4-5-6 Clutch Plate Assembly (Qty: 4) |
| 6 | 4-5-6 Clutch Plate (Qty: 3) |
| 7 | 4-5-6 Clutch Backing Plate |
| 8 | 4-5-6 Clutch Backing Plate Retaining Ring |
