4-5-6 Clutch Fluid Dam Installation

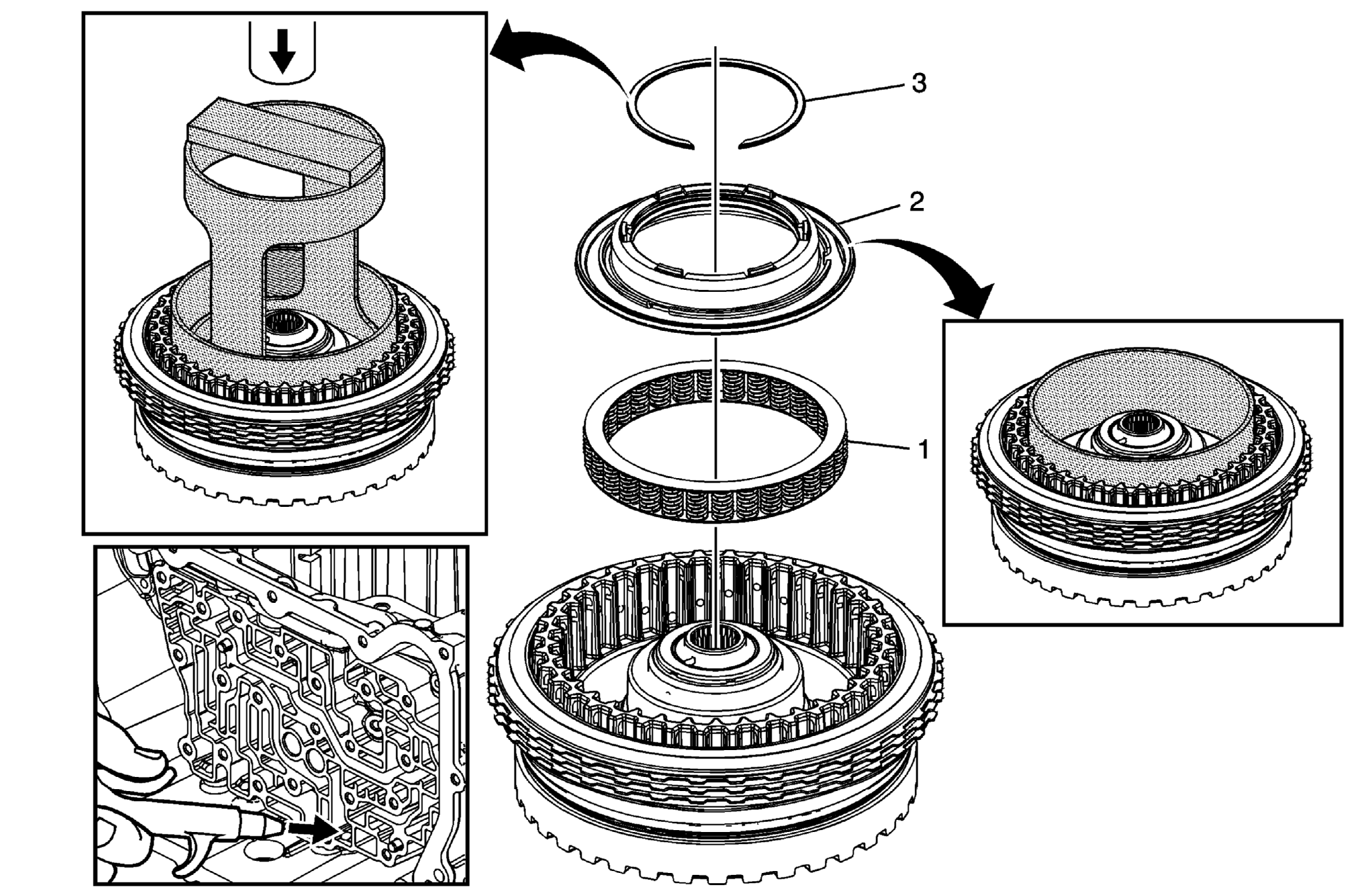

Fig 1: View Of 4-5-6 Clutch Fluid Dam Components
GM1891357Courtesy of GENERAL MOTORS COMPANY
4-5-6 Clutch Fluid Dam Installation

Callout Component Name
1 4-5-6 Clutch Piston Return Spring Assembly
2 4-5-6 Clutch Piston Fluid Dam Assembly
NOTE: The seal protector prevents the dam seal lip from damage during installation. Apply a thin coat of ATF to the I.D. of the seal protector to ease the installation of the dam.

Special Tools

  • DT-47951-1  Seal Protector for 6T40/45 applications
  • DT-50117  Seal Protector for 6T50 applications

For equivalent regional tools, refer to Special Tools .
3 4-5-6 Clutch Dam Retaining Ring
CAUTION: Regulate the air pressure to 276 kPa (40 psi) maximum. High pressure could cause the piston to over travel and damage the piston seals.

Procedure

  1. The 4-5-6 clutch dam retaining ring is not reusable, install a NEW retaining ring.
  2. Leave the seal protector in place while installing the retaining ring.
  3. Place the housing assembly onto the input shaft support inside the case. Apply shop air to the clutch fluid feed hole in the case to verify proper piston operation.

Special Tools
DT-47951-2  Spring Compressor
For equivalent regional tools, refer to Special Tools .
