Installation Procedure

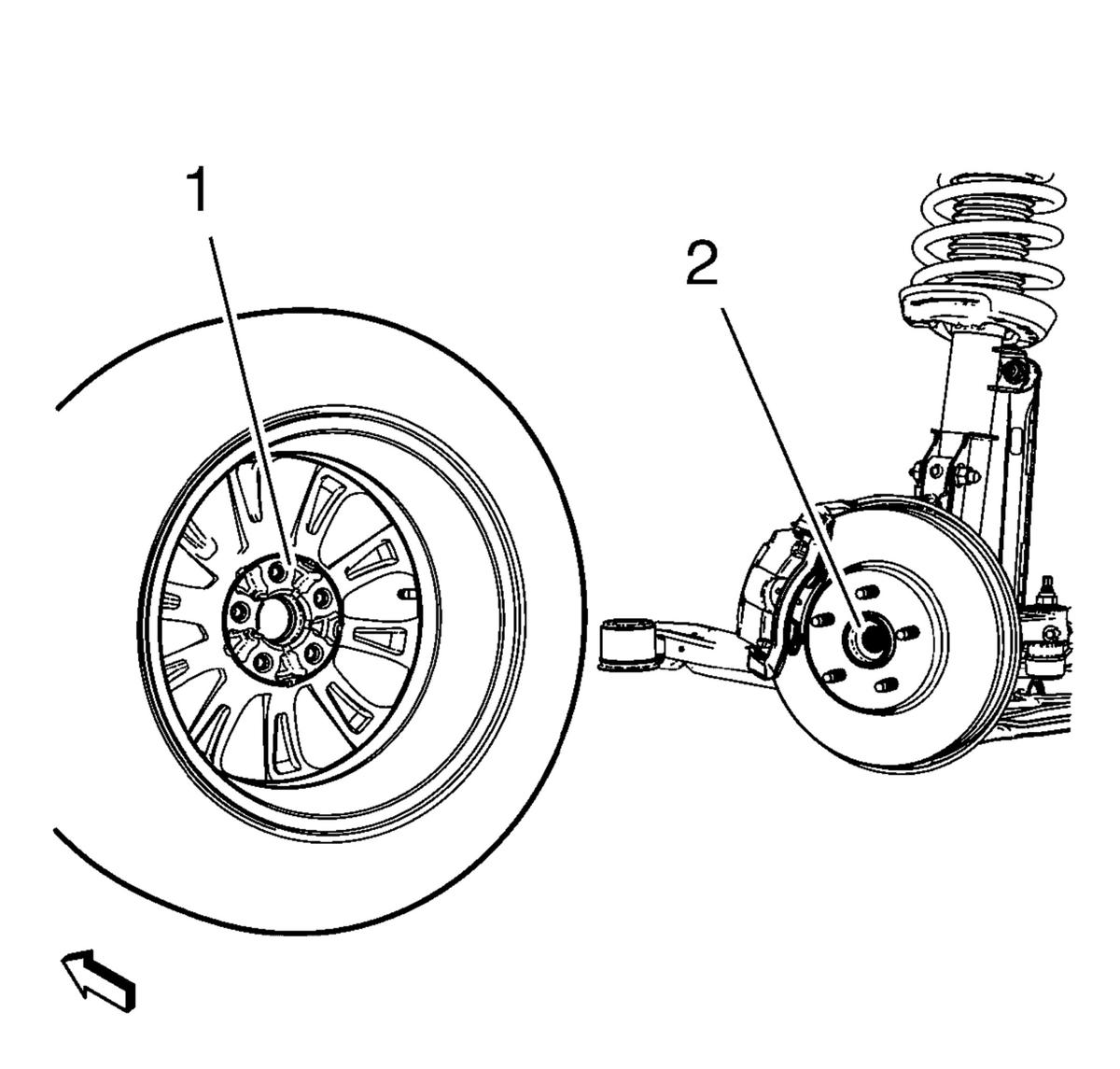

Remove any corrosion or foreign material from the wheel (1) and the hub (2) mounting surfaces.

Fig 1: Wheel And Hub
Courtesy of GENERAL MOTORS COMPANY

WARNING: Before installing the wheels, remove any buildup of corrosion on the wheel mounting surface and brake drum or disc mounting surface. Installing wheels with poor metal-to-metal contact at the mounting surfaces can cause wheel nuts to loosen. This can cause a wheel to come off when the vehicle is moving, causing loss of control and possibly personal injury.

WARNING: Never grease or lubricate wheel nuts, studs and mounting surfaces. Wheel nuts, studs and mounting surfaces must be clean and dry. Tightening the lubricated parts can cause damage to the wheel studs. This can cause a wheel to come off when the vehicle is moving, causing loss of control and possibly personal injury.
Clean the threads on the wheel studs and wheel nuts.
In order to prevent seizing up the centering seat to the wheel, lightly grease the inner center seat (1) of the rim with bearing grease before fitting.

Fig 2: Rim Inner Center Seat
Courtesy of GENERAL MOTORS COMPANY

NOTE: The disc wheels are aligned to the front wheel hubs by using the center hole or the wheel studs.
Install the tire and wheel assembly. Align the locating mark of the wheel to the hub.
Install the wheel nuts.

Fig 3: Wheel Nut Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY
Tighten the wheel nuts in the sequence shown tighten the nuts in sequence to 140 N.m (103 lb ft).
CAUTION: Refer to Fastener Caution .

NOTE: Tighten the nuts evenly and alternately in the sequence shown, in order to avoid excessive runout.
Install the wheel center cap.
Lower the vehicle.
