D Height Measurement

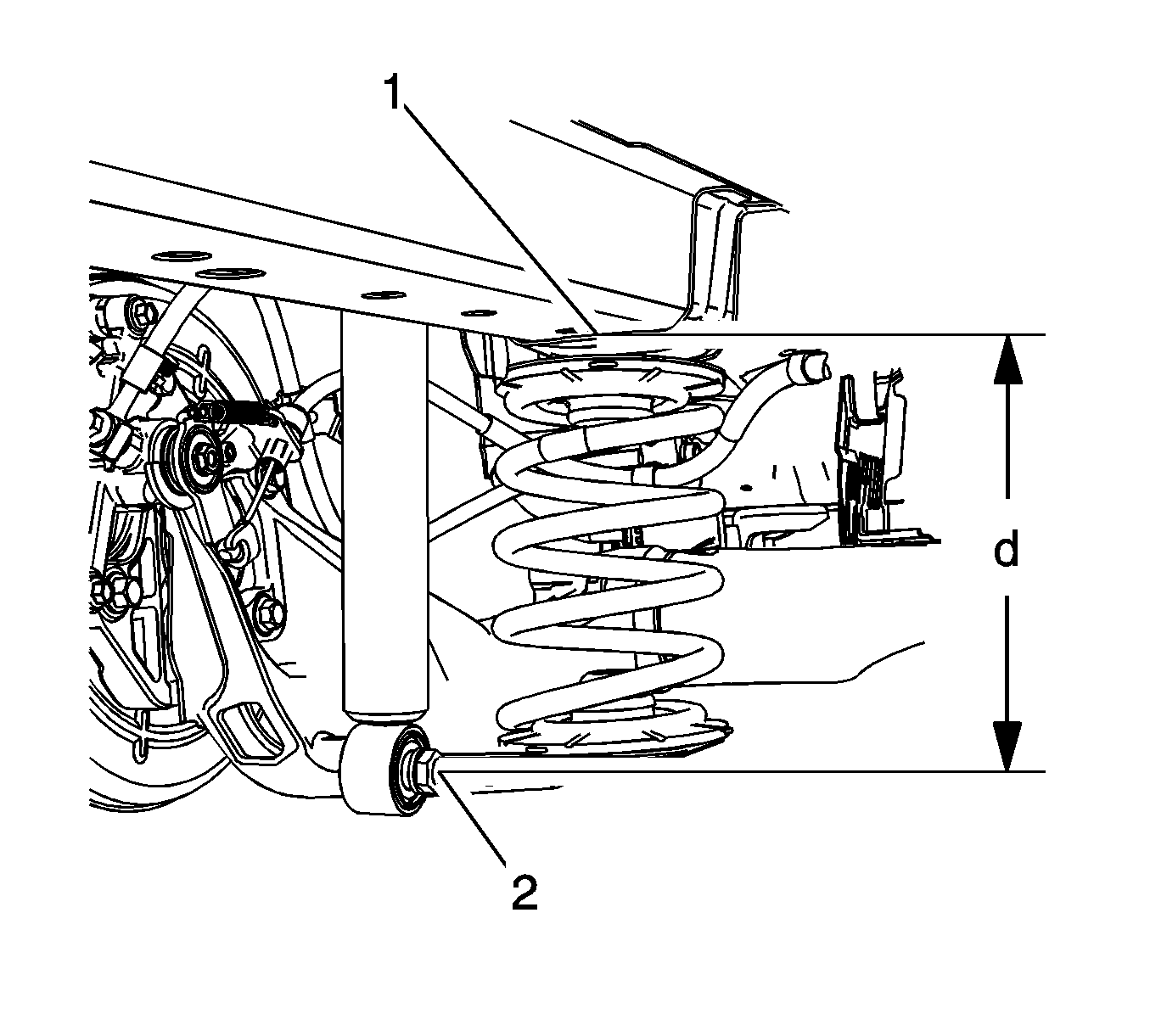

Fig 1: Measuring D Height

Courtesy of GENERAL MOTORS COMPANY

Measurement Definitions

The D Height: The vertical distance from the bottom surface of the body side rail (1) to the center of the lower shock attaching bolt head (2).

Use the following procedure to check the D dimension:

1. Push the rear bumper down a minimum of 25 mm (1 in). Perform this step three times.
   NOTE: The left and right D height difference should be no more than 10 mm (0.39 in).
2. Measure and record the trim height per the "Measurement Definitions" above.
3. Lift the rear bumper up a minimum of 25 mm (1 in) and release. Perform this step three times.
4. Measure and record the trim height per the "Measurement Definitions" above.
5. The true D height is the average of the measurements taken in steps 2 and 4. Refer to Trim Height Specifications .
6. If these measurements are out of specifications, inspect for the following conditions:
   • Worn or damaged suspension components
   • Collision damage
