Installation Procedure

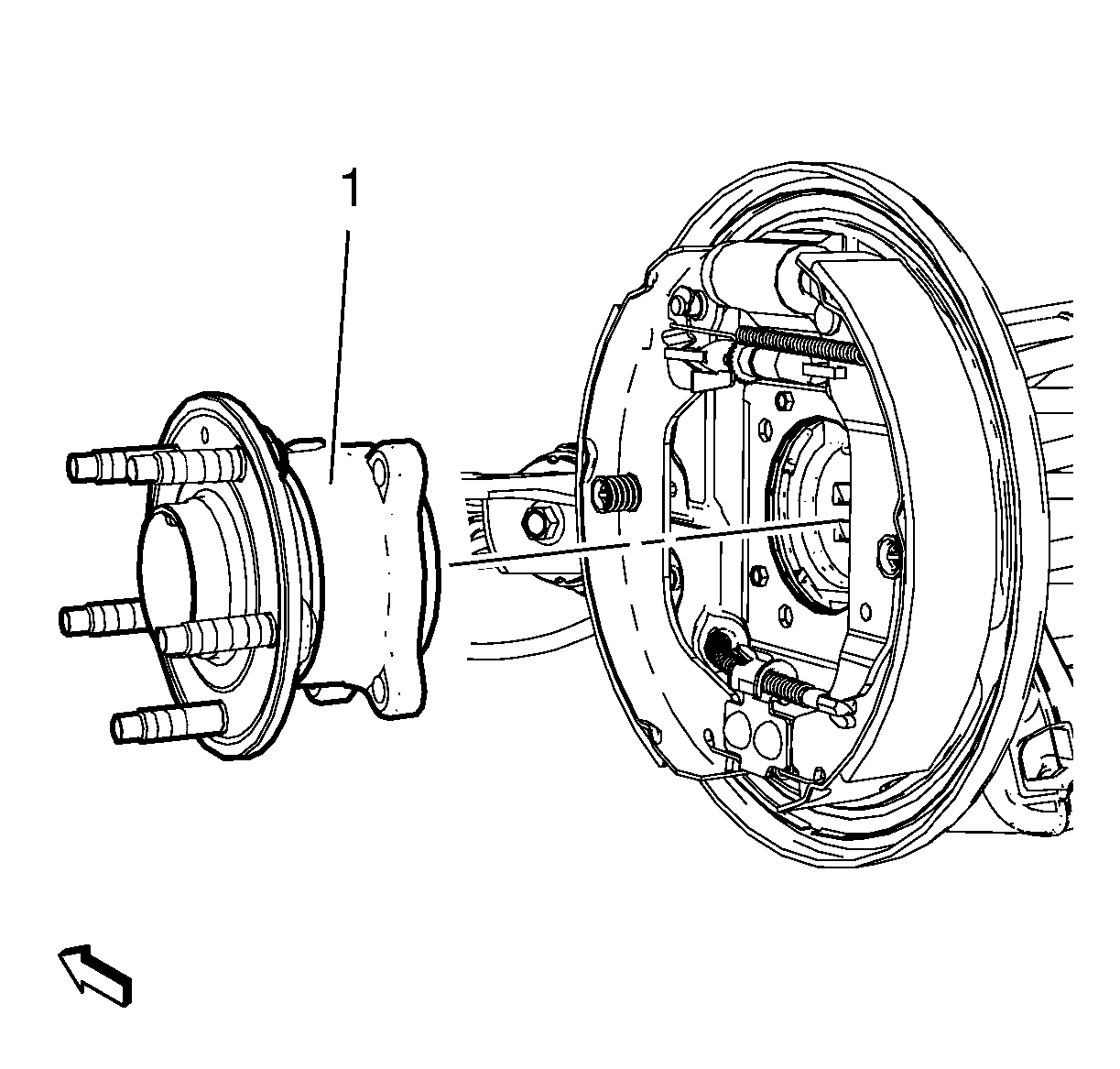

- Install the wheel bearing/hub assembly (1) to the brake backing plate and the rear axle assembly.

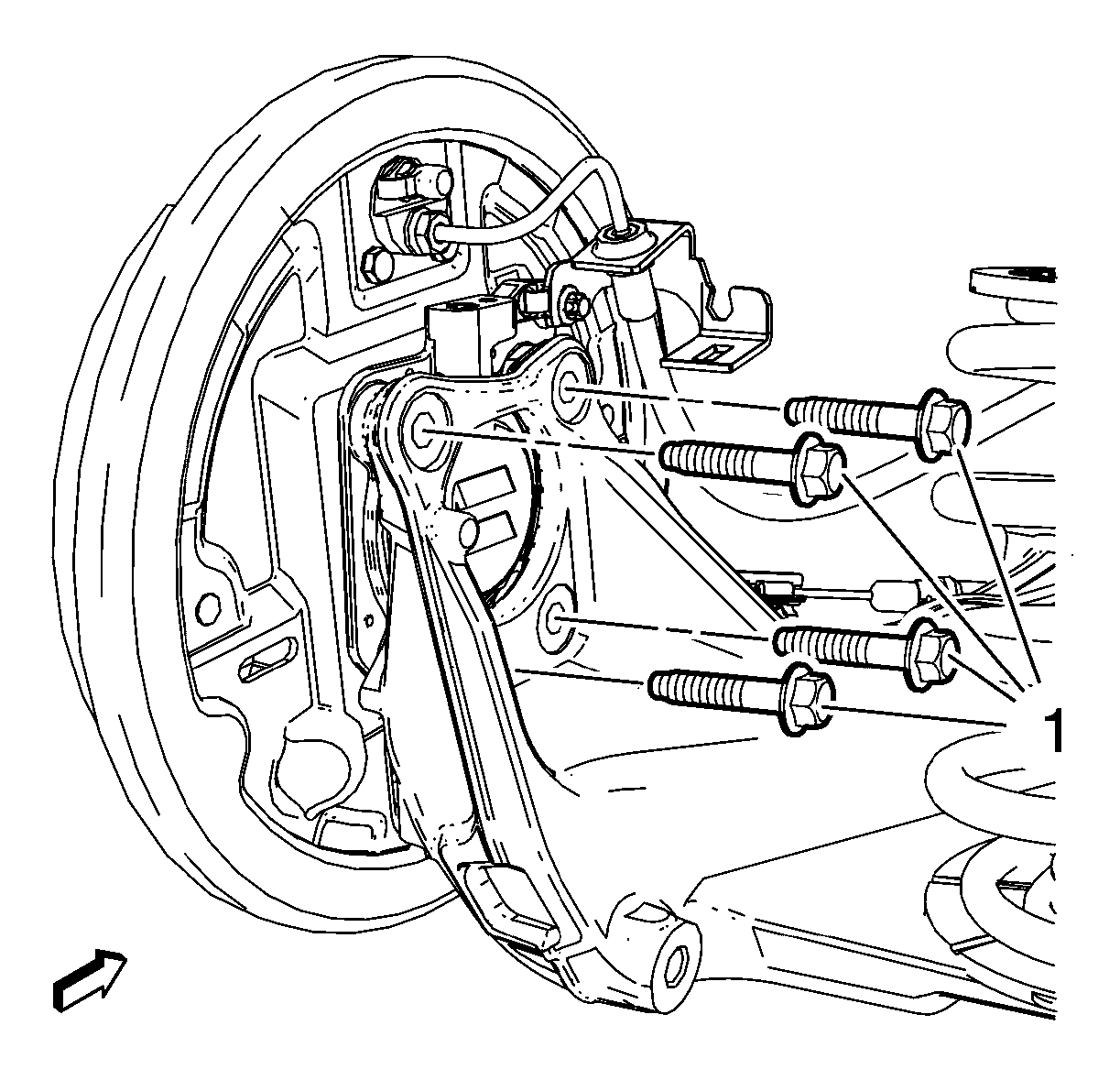

- Install the 4 wheel bearing/hub mounting bolts (1) and tighten a first pass to 50 N.m (37 lb ft)
CAUTION: Refer to Fastener Caution .NOTE: Tighten the bolts evenly, in a cross-pattern.
- Tighten the 4 wheel bearing/hub mounting bolts a final pass to an additional 30 - 45 degrees, using the EN-45059 meter.

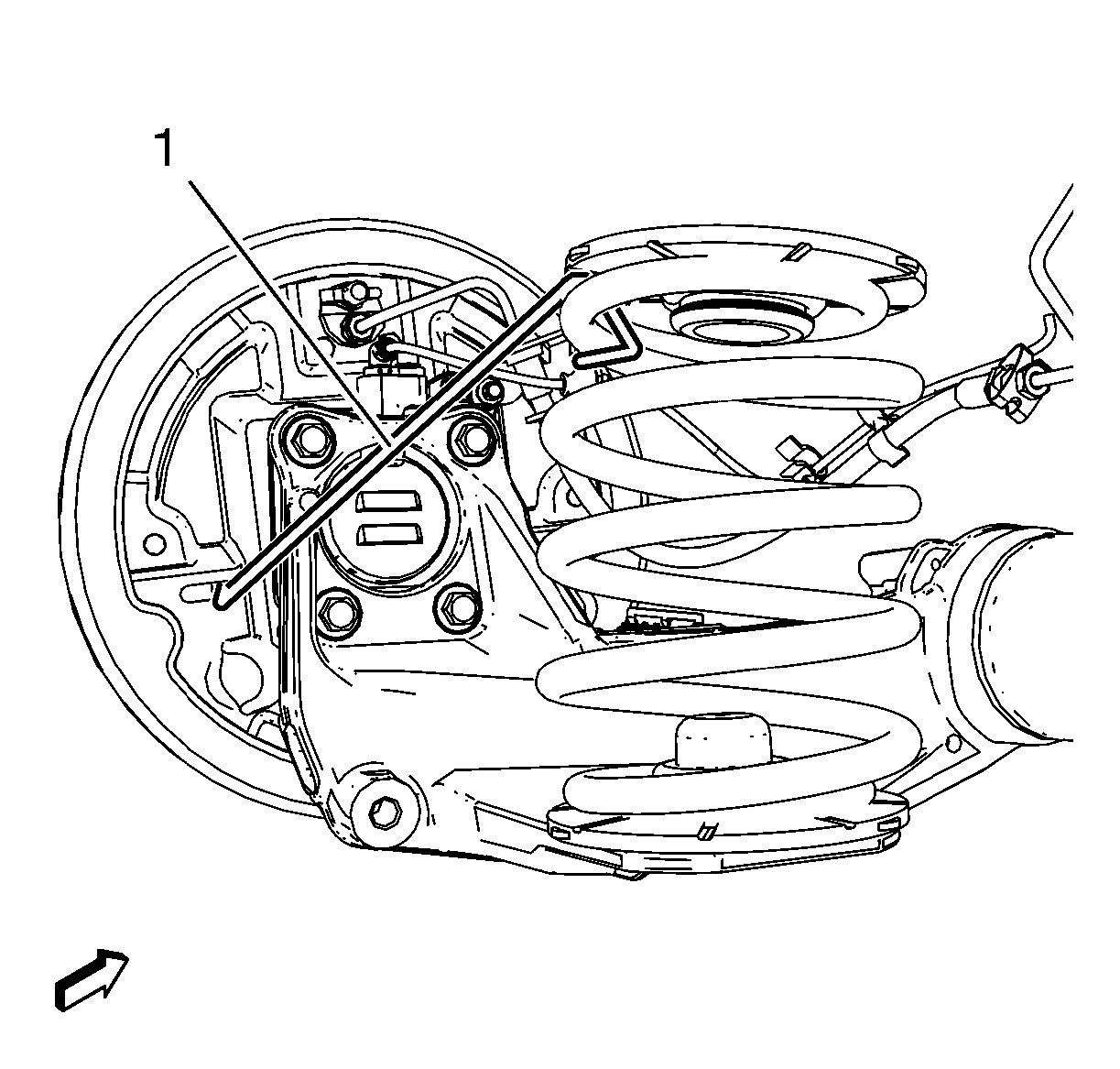

- Remove the mechanic wire (1) supporting the brake backing plate.
- Install the plug to the drum brake actuator access hole in the backing plate.
- Install the brake drum. Refer to Brake Drum Replacement .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Remove the support and lower the vehicle.
