Rear Suspension Equalizer Beam Center Link Heat Shield Replacement

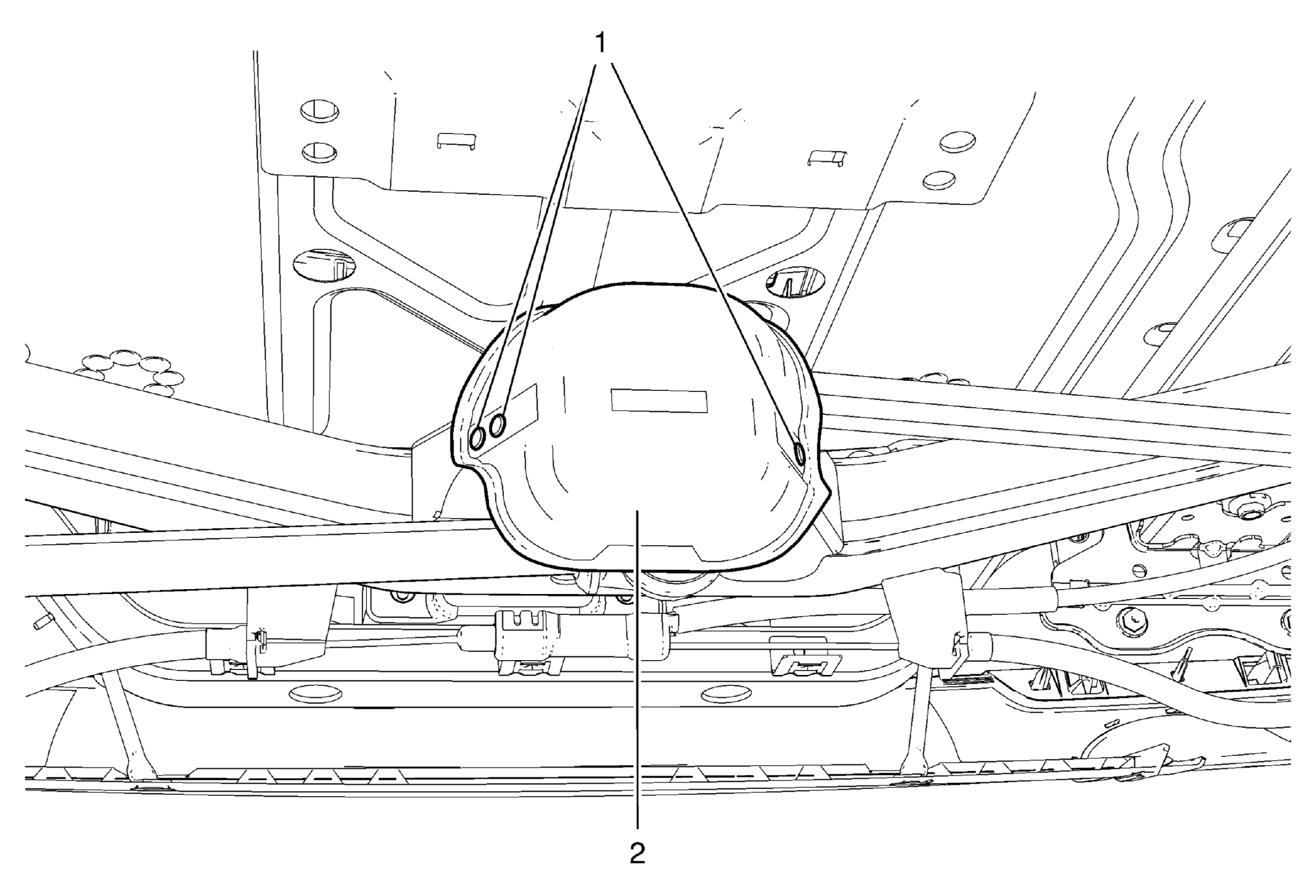

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Equalizer Beam Center Link Heat Shield Rivet (Qty: 3).
CAUTION:
Refer to Fastener Caution
. Procedure Drill out the rivets with suitable drill to remove the heat shield. |
| 2 | Equalizer Beam Center Link Heat Shield |
