Installation Procedure

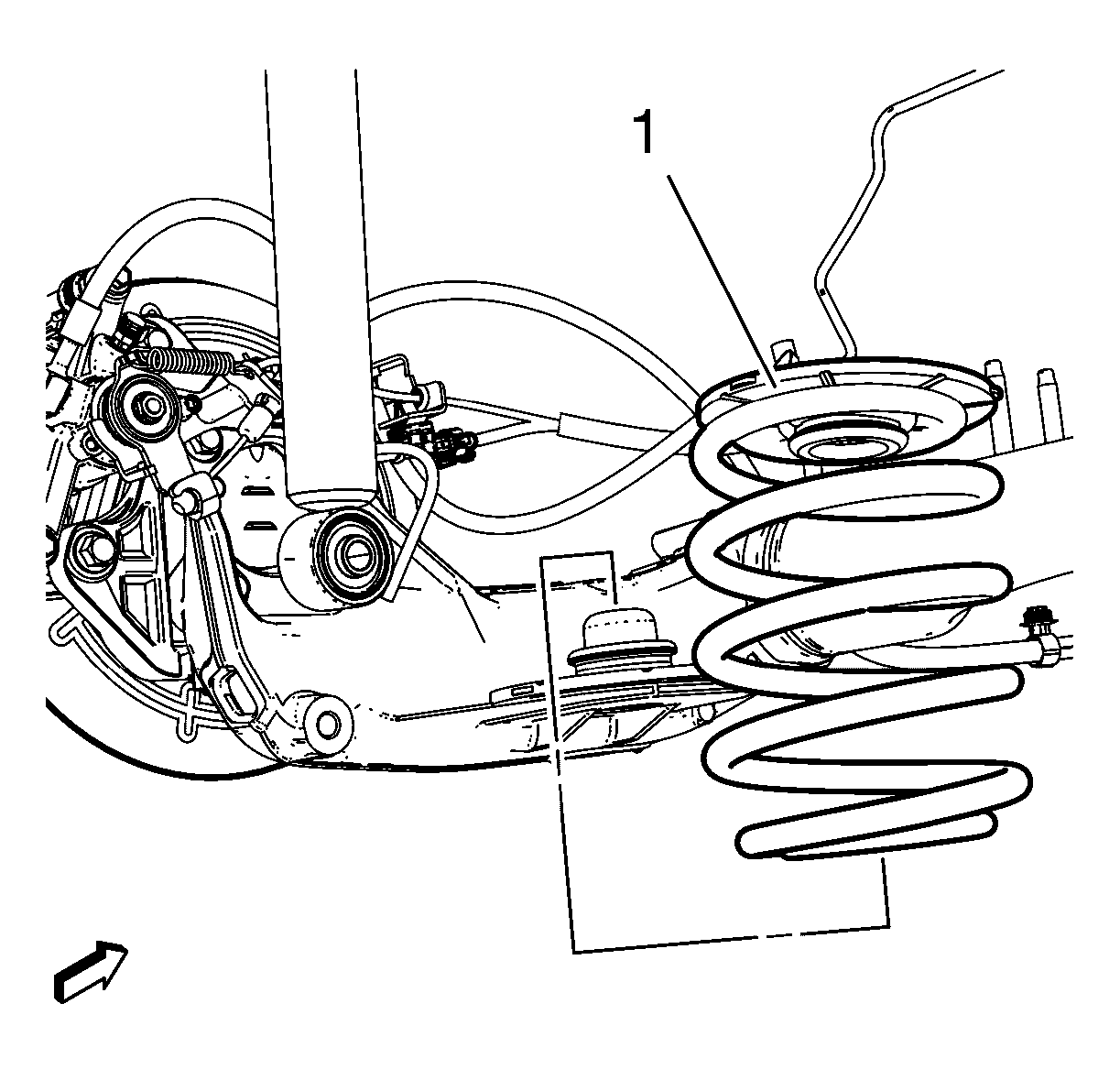

- Install the upper spring seat/jounce bumper (1) on the spring.
- Install the spring (1) making sure the lower coil is seated into the lower spring seat.
NOTE: If the spring is equipped with tags, ensure that the tags are at the upper rear portion of the spring. If marks were made during removal, ensure the marks are properly aligned.
- Using the jack stands, raise the rear axle in order to compress the rear springs.
- Install the lower shock absorber bolts. Refer to Shock Absorber Replacement .
- Lower the vehicle.
