Removal Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .

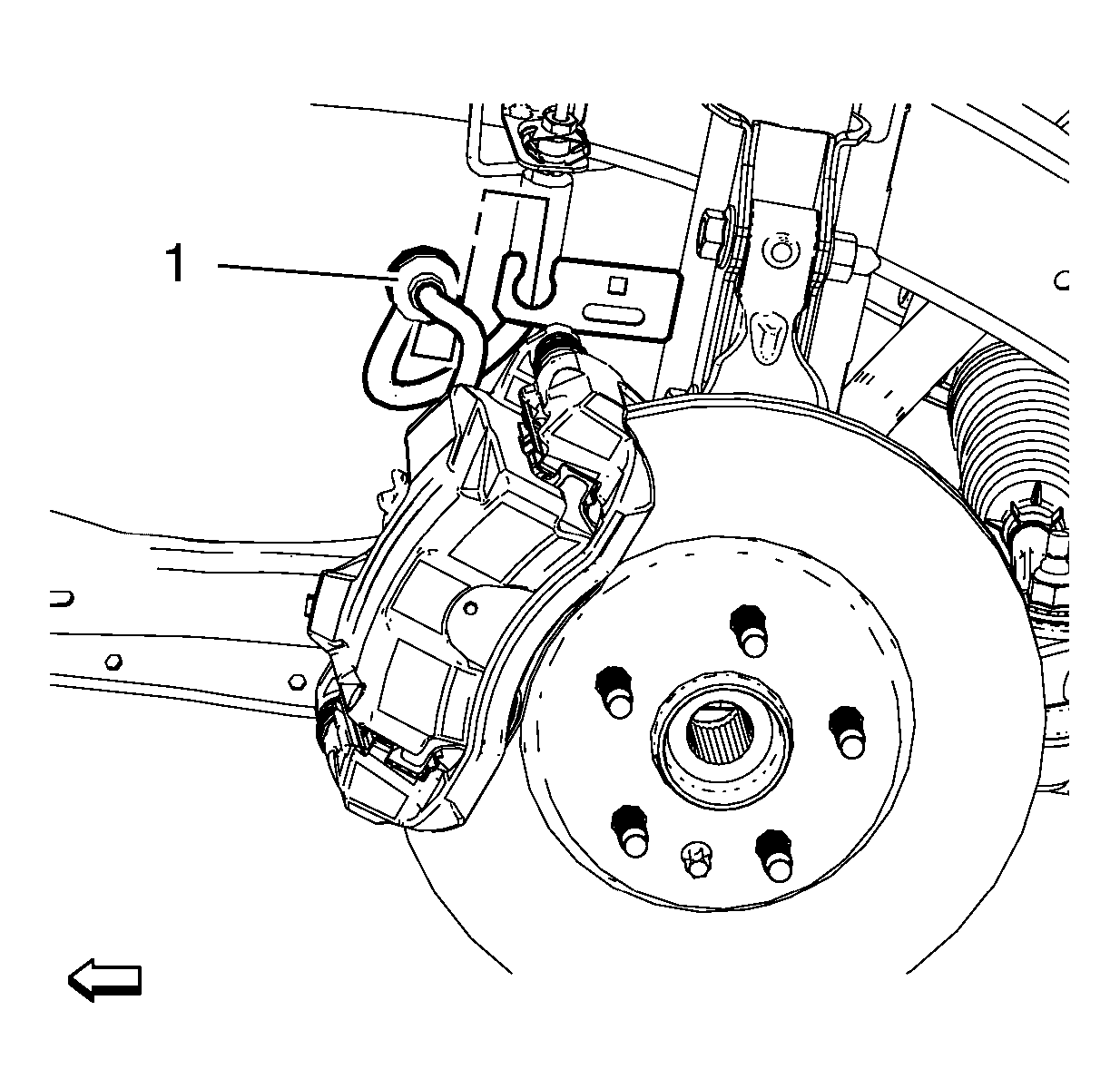

Separate the brake hose (1) from the shock absorber.

Fig 1: Identifying Brake Hose
Courtesy of GENERAL MOTORS COMPANY

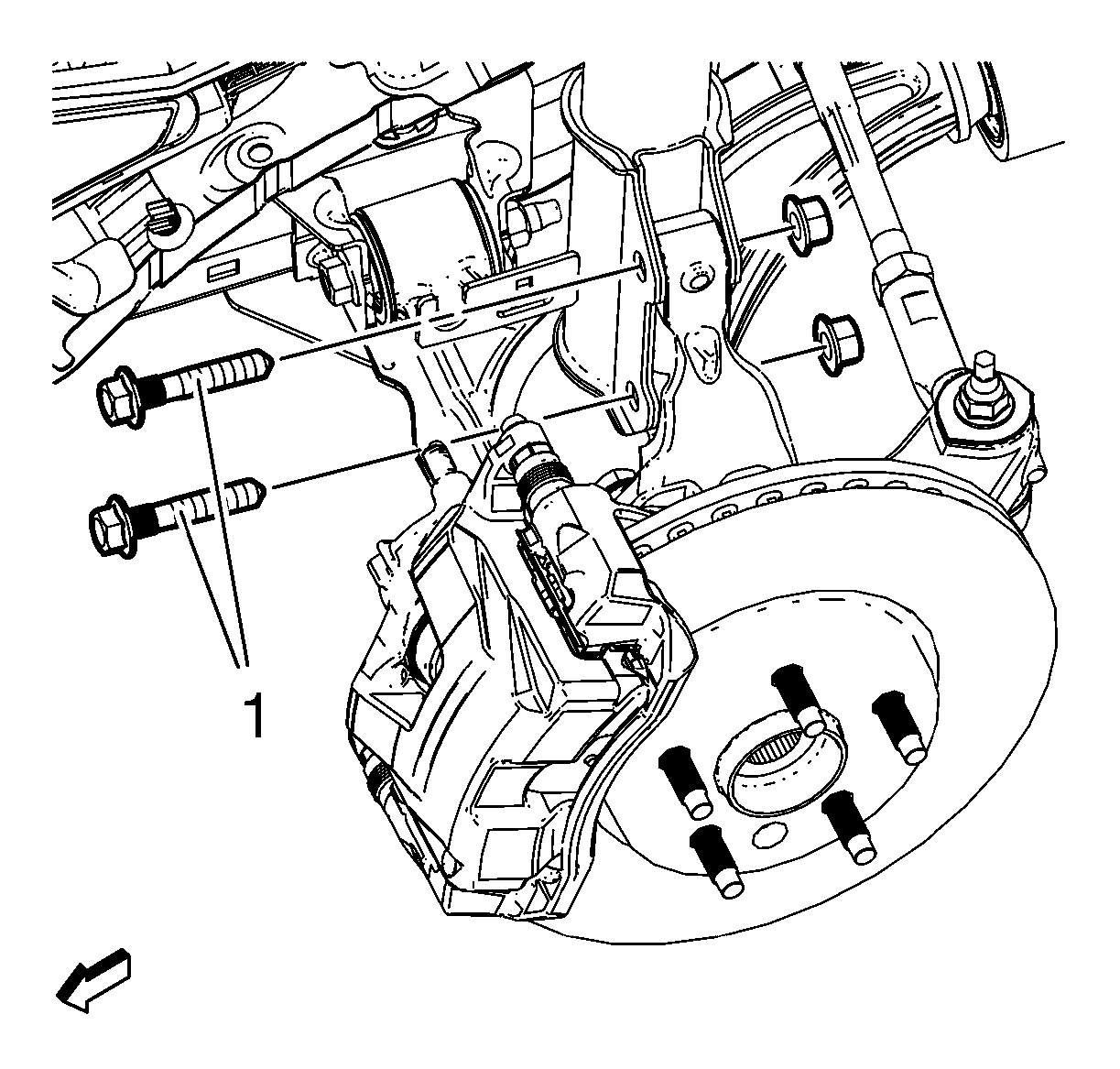

Remove and DISCARD the steering knuckle nuts and bolts (1).

Fig 2: Steering Knuckle And Bolts
Courtesy of GENERAL MOTORS COMPANY

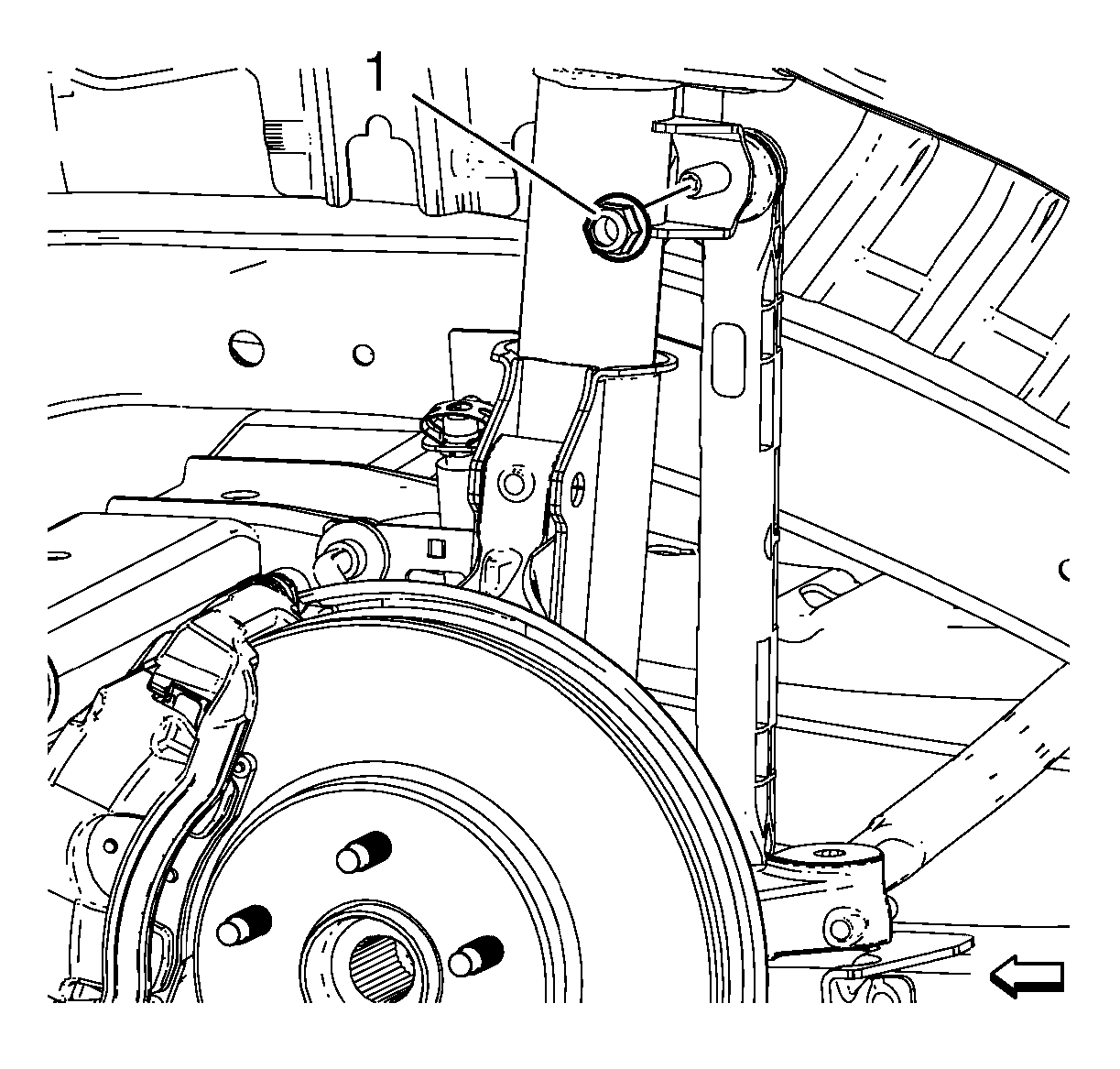

Remove and DISCARD the stabilizer shaft link nut (1) from the front strut.

Fig 3: View Of Stabilizer Shaft Link Nut
Courtesy of GENERAL MOTORS COMPANY
Lower the vehicle.
Remove the upper strut mount nut (1), use the CH-49375 wrench.

Fig 4: Socket & Torx(R) Bit
Courtesy of GENERAL MOTORS COMPANY
Remove the strut mounting plate (2).
Separate the front strut from the knuckle.
Remove the front strut assembly from the vehicle.
For servicing the individual strut components, refer to Strut, Strut Component or Spring Replacement .
