Installation Procedure

Lightly apply rubber lubricant to the upper strut mount using rubber lubricant GM P/N 12345884 (Canadian P/N 88863415) to ease installation and for proper seating of mount.

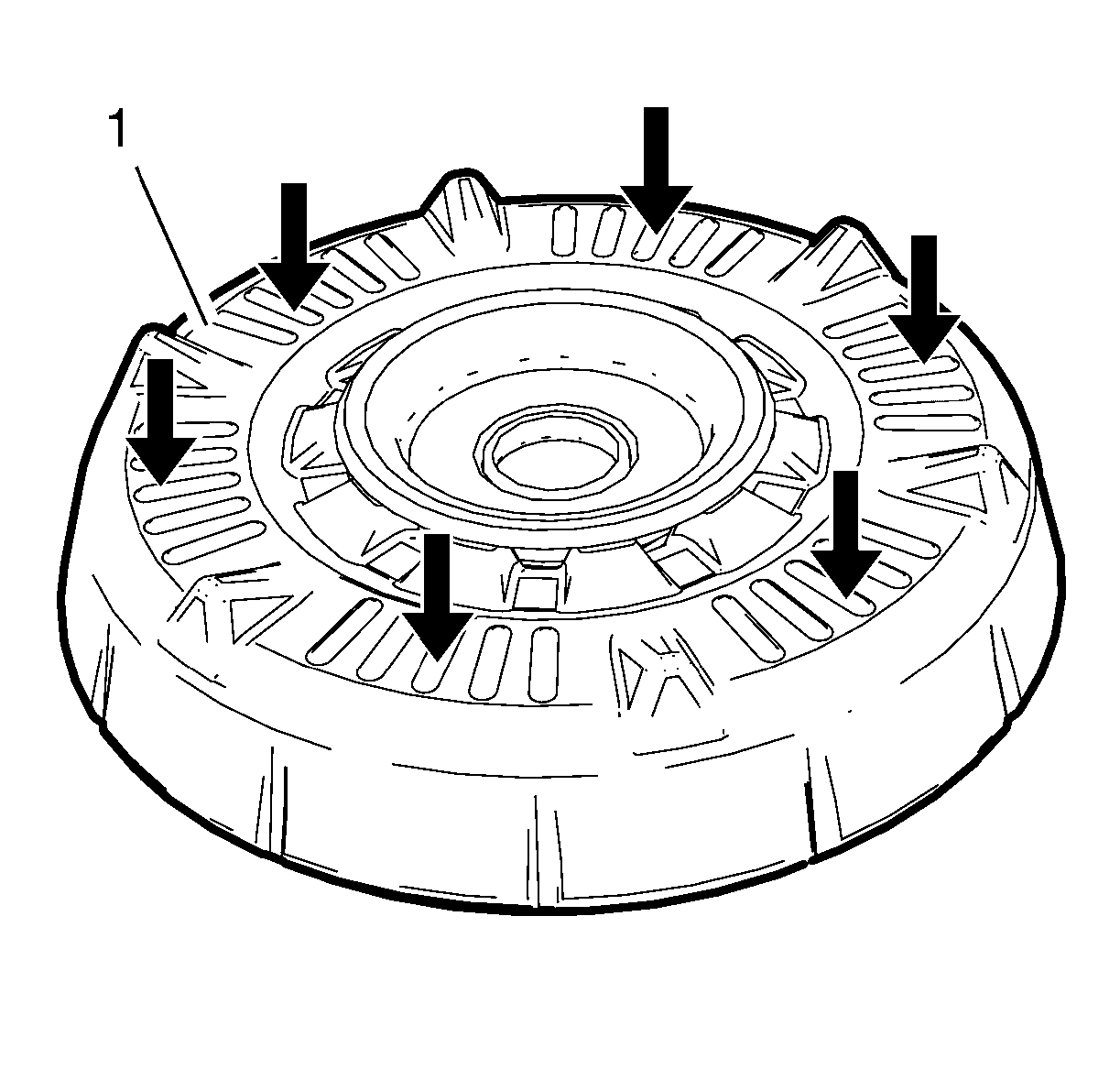

Fig 1: Upper Strut Mount
Courtesy of GENERAL MOTORS COMPANY
Install the front strut assembly.
Install the strut mounting plate (2).

Fig 2: Socket & Torx(R) Bit
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Install the upper strut mount nut (1).
Tighten the nut (1) to 65 N.m (48 lb ft), using the CH-49375 wrench.
Insert the front strut in the knuckle.

Fig 3: Steering Knuckle And Bolts
Courtesy of GENERAL MOTORS COMPANY
Tighten the NEW steering knuckle nuts and bolts (1) a first pass to 90 N.m (66 lb ft).
WARNING: Refer to Torque-to-Yield Fastener Warning .
Tighten the NEW steering knuckle nuts and bolts a final pass to an additional 60 - 70 degrees, using the EN-45059 meter.
Install a NEW stabilizer shaft link nut (1) and tighten to 65 N.m (48 lb ft).

Fig 4: View Of Stabilizer Shaft Link Nut
Courtesy of GENERAL MOTORS COMPANY
Install the brake hose (1) to the strut.

Fig 5: Identifying Brake Hose
Courtesy of GENERAL MOTORS COMPANY
Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
Check the front camber alignment specifications. Refer to Front Camber Adjustment .
