Installation Procedure

  1. Position the front brake shield (2) and the front wheel bearing/hub assembly (1) in the steering knuckle.

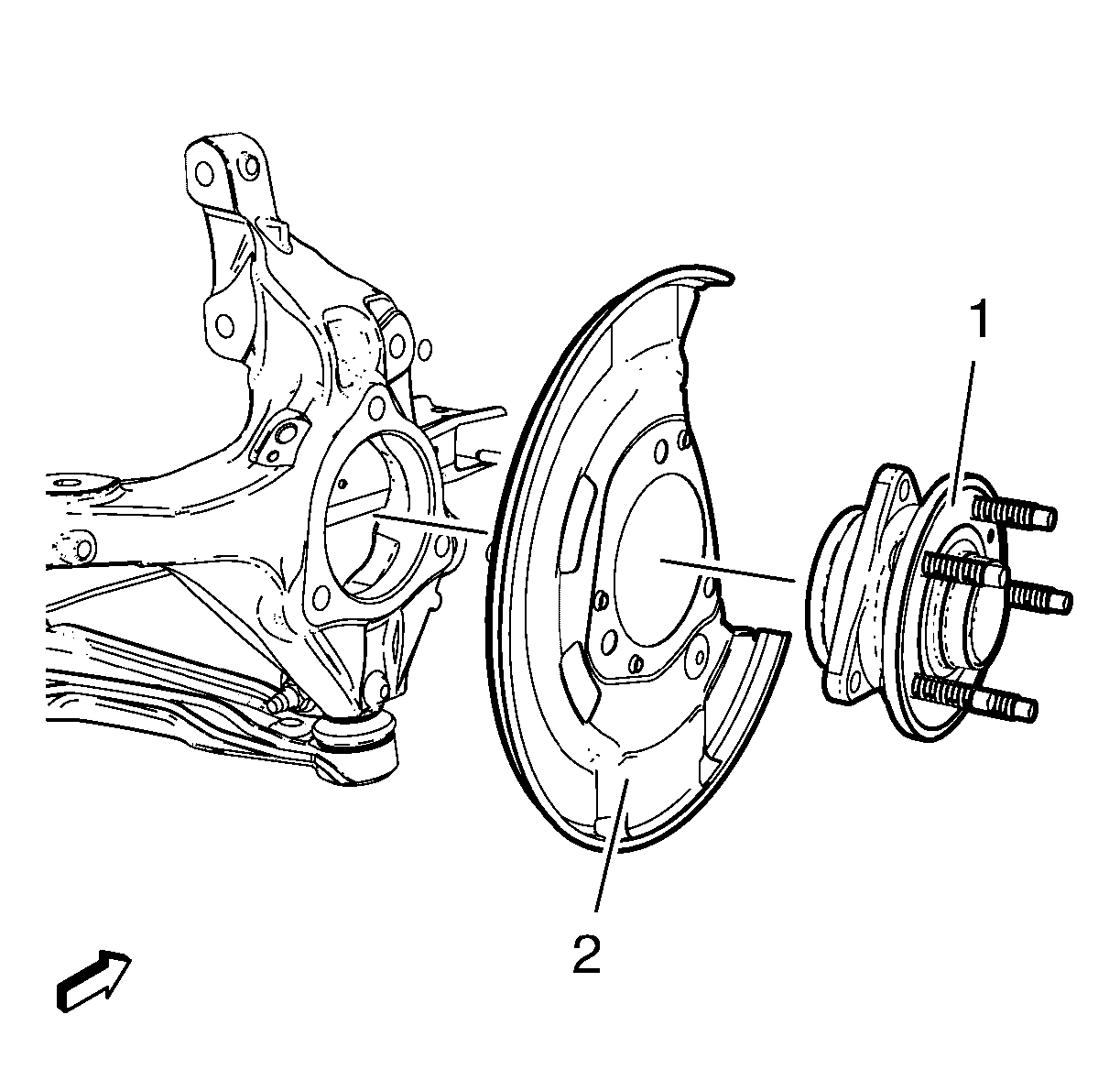

    Fig 1: Wheel Bearing/Hub, Front Brake Shield And Steering Knuckle
    GM2027685Courtesy of GENERAL MOTORS COMPANY
  2. Install the front wheel bearing/hub bolts (1).

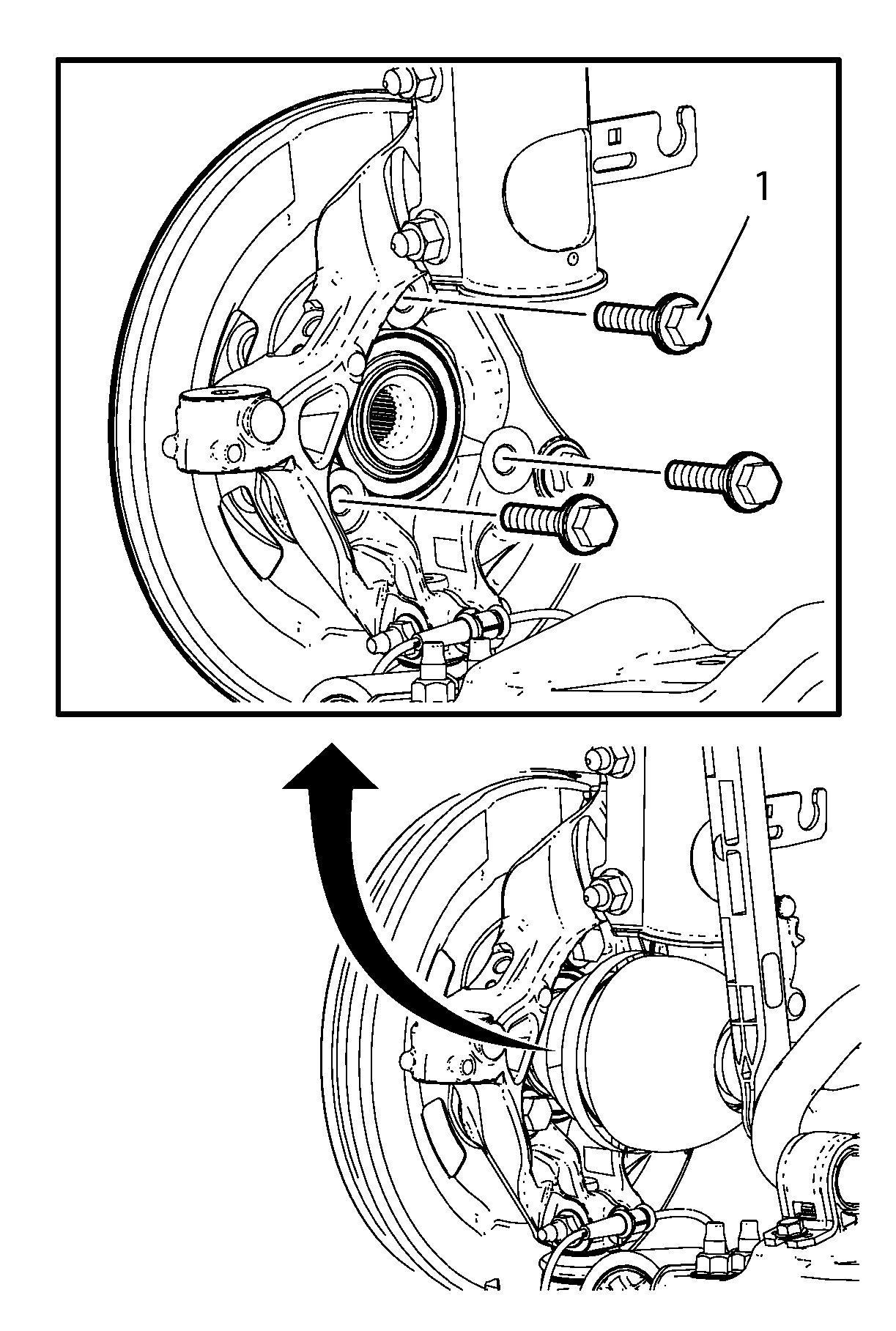

    Fig 2: Identifying Front Wheel Bearing/Hub Bolts
    GM2027764Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  3. Tighten the bearing/hub bolts (1) in 3 passes. Use the EN-45059  angle meter.
    • First pass to 100 N.m (74 lb ft)
    • Second pass to 20 - 35 degrees
  4. Install the wheel drive shaft at the front wheel bearing/hub. Refer to Front Wheel Drive Shaft Replacement - Left Side , Front Wheel Drive Shaft Replacement - Right Side (without Intermediate Shaft) and Front Wheel Drive Shaft Replacement - Right Side (with Intermediate Shaft) .
  5. Install the wheel speed sensor (1) to the steering knuckle.
    Fig 3: Wheel Speed Sensor And Wheel Speed Sensor Screw
    GM2028087Courtesy of GENERAL MOTORS COMPANY
  6. Install the wheel speed sensor screw (2) and tighten to 6 N.m (53 lb in).
  7. Install the brake rotor. Refer to Front Brake Rotor Replacement (15 inch Brake System J67 and J93) and Front Brake Rotor Replacement (16 inch Brake System J60) .
  8. Lower the vehicle.
