Front Seat Belt Buckle Replacement

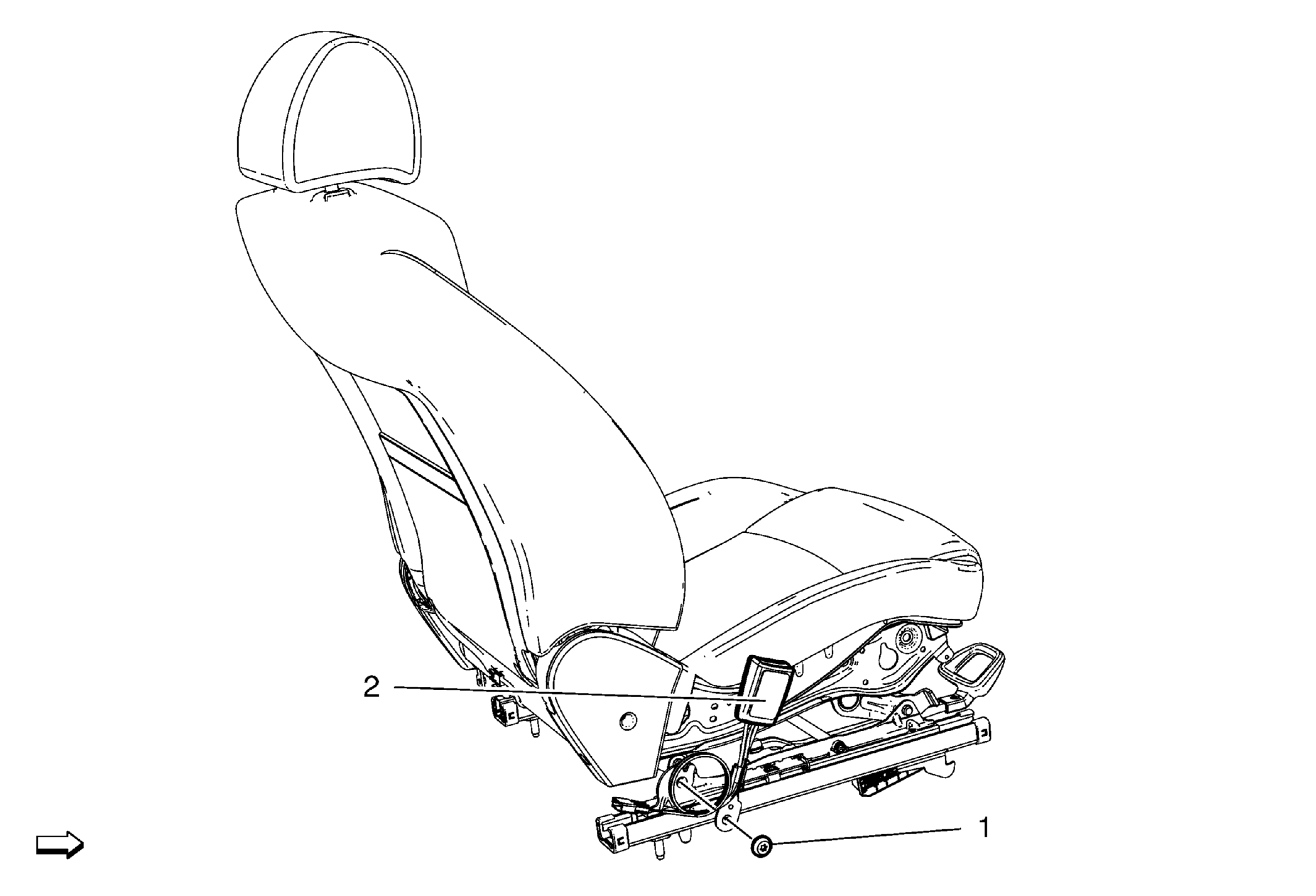

Fig 1: Seat Belt Buckle
GM2027055Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .
1 Front Seat Belt Buckle Bolt
CAUTION: Refer to Fastener Caution .

Tighten
45 N.m (33 lb ft)
2 Front Seat Belt Buckle
