Side Impact Sensors and Roof Rail, Driver and Passenger Air Bags

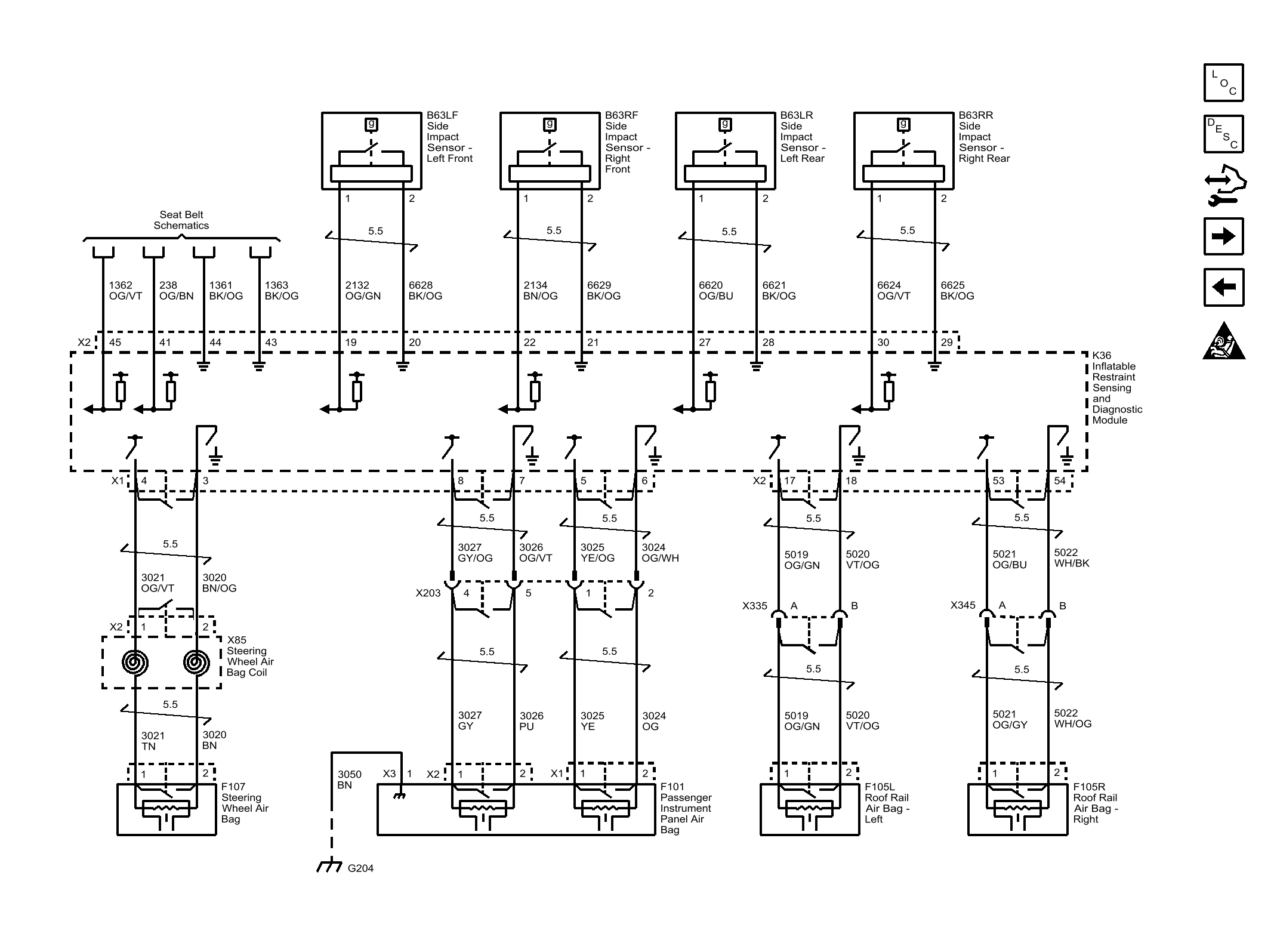

Fig 1: Side Impact Sensors and Roof Rail, Driver and Passenger Air Bags

GM3814585

Courtesy of GENERAL MOTORS COMPANY
