Module Power, Ground, MIL, Indicators and Passenger Presence

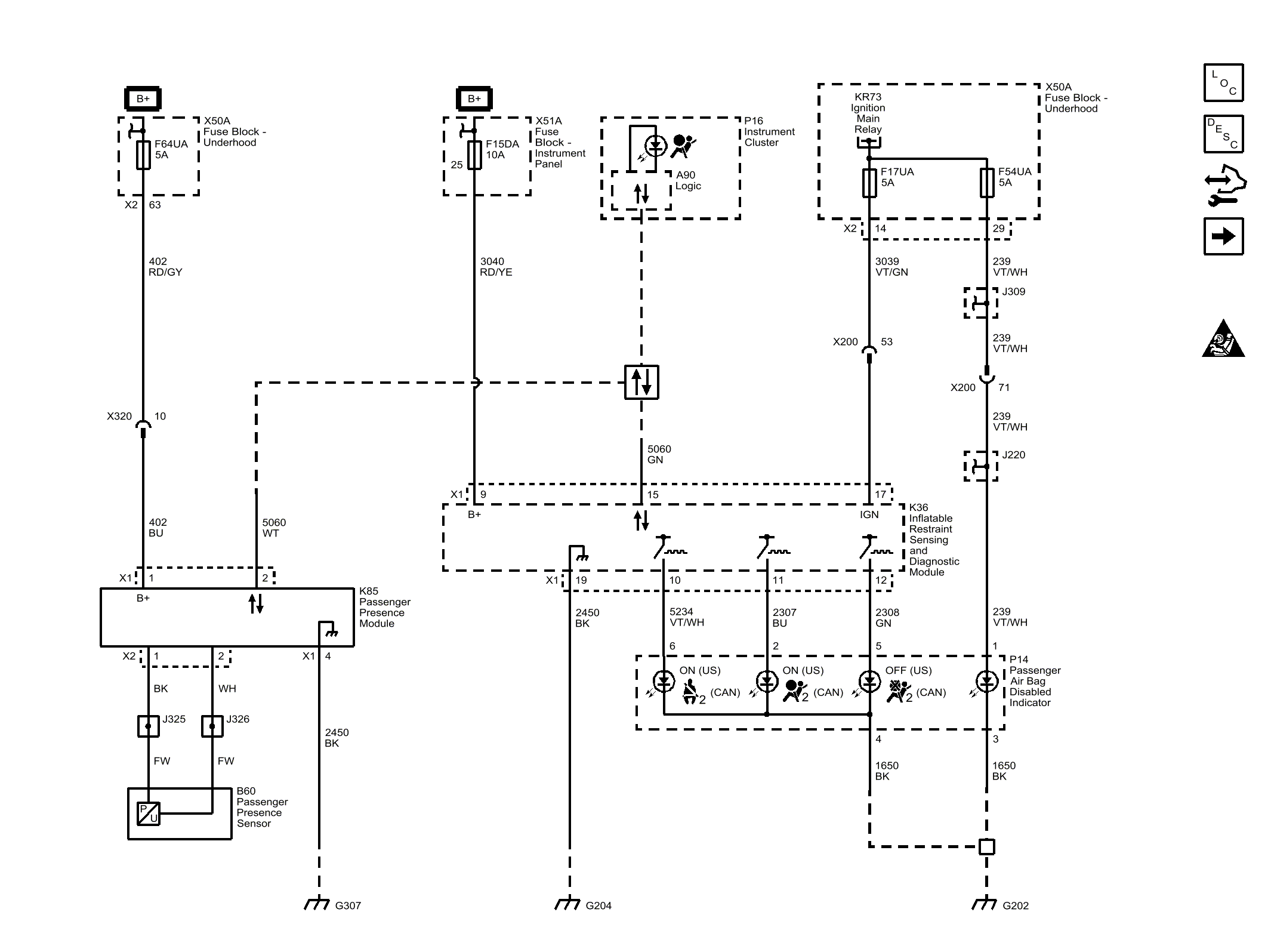

Fig 1: Module Power, Ground, MIL, Indicators and Passenger Presence

GM3814584

Courtesy of GENERAL MOTORS COMPANY
