Front Impact Sensors, Seat Belt Pretensioners and Front Side Air Bags

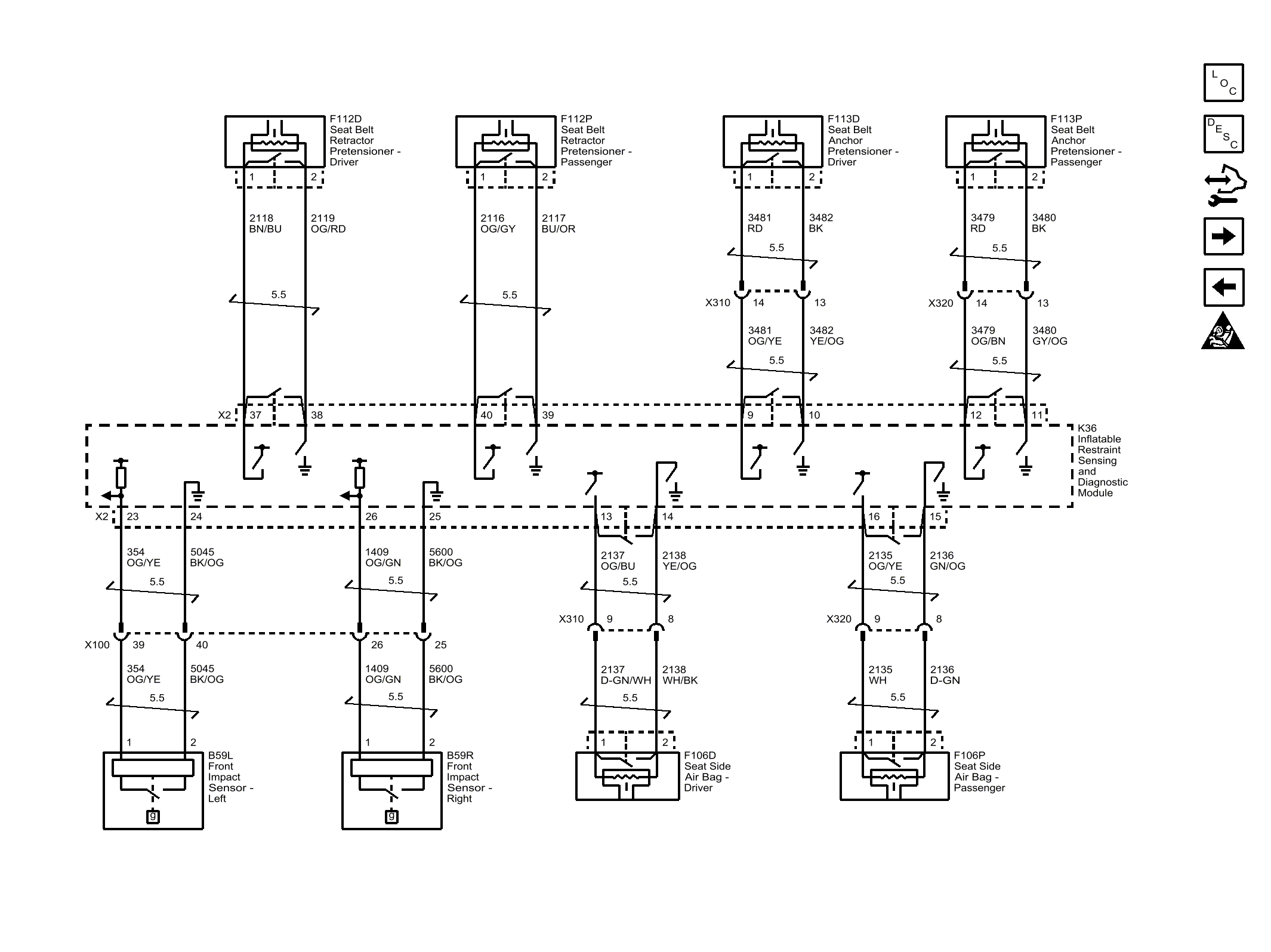

Fig 1: Front Impact Sensors, Seat Belt Pretensioners and Front Side Air Bags

GM3814586

Courtesy of GENERAL MOTORS COMPANY
