Airbag Side Impact Sensor Replacement (Rear Pillar-Mounted)

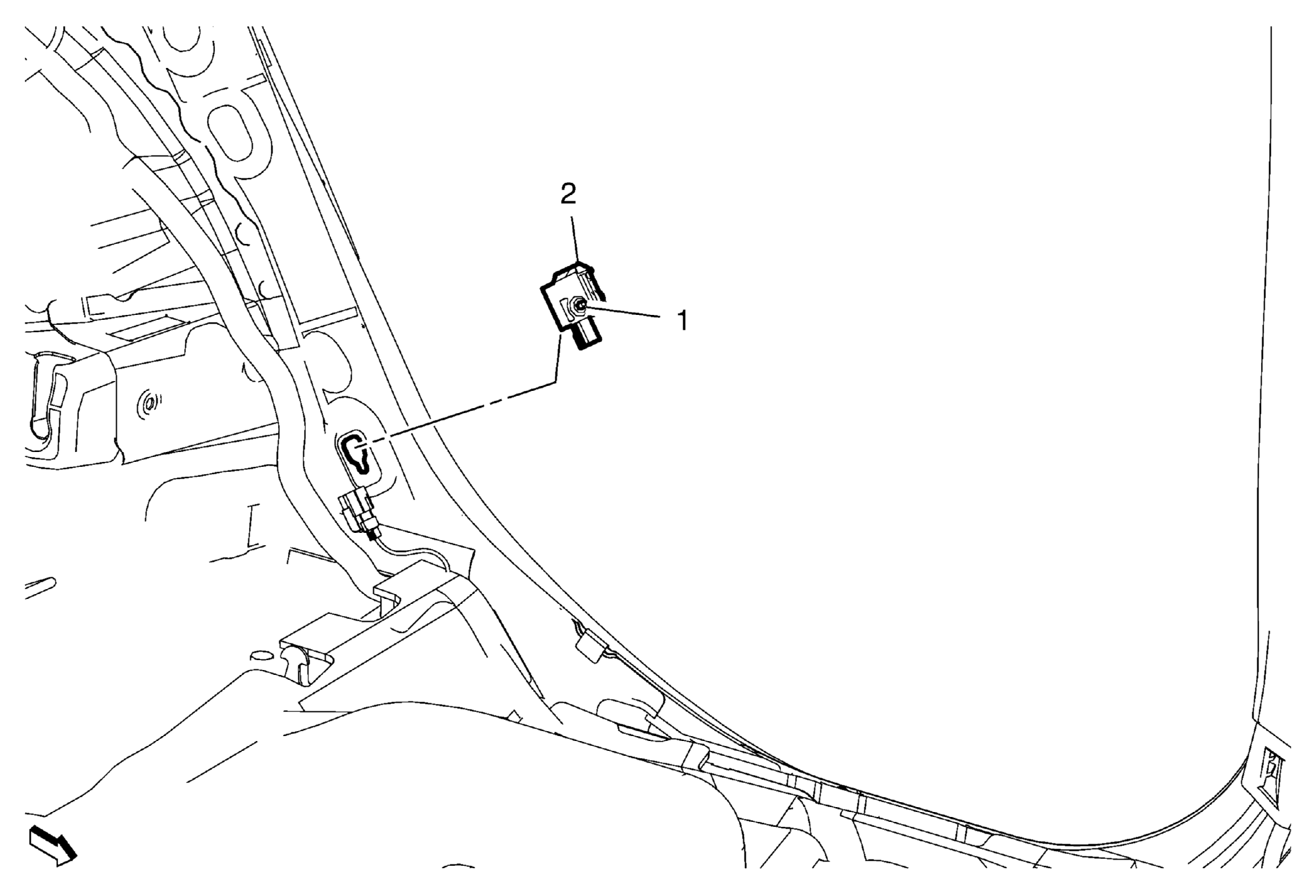

Fig 1: Inflatable Restraint Side Impact Sensor (Rear Pillar-Mounted)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation . Remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement . Remove the rear side door sill trim plate. Refer to Rear Side Door Sill Trim Plate Replacement .
1	Inflatable Restraint Side Impact Sensor Fastener CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 7.5 N.m (66 lb in)
2	Inflatable Restraint Side Impact Sensor

Callout

Component Name

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
Remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement .
Remove the rear side door sill trim plate. Refer to Rear Side Door Sill Trim Plate Replacement .

Inflatable Restraint Side Impact Sensor Fastener

CAUTION: Refer to Fastener Caution .

Procedure
Disconnect the electrical connector.
Tighten
7.5 N.m (66 lb in)

Inflatable Restraint Side Impact Sensor
