Airbag Sensing and Diagnostic Module Replacement

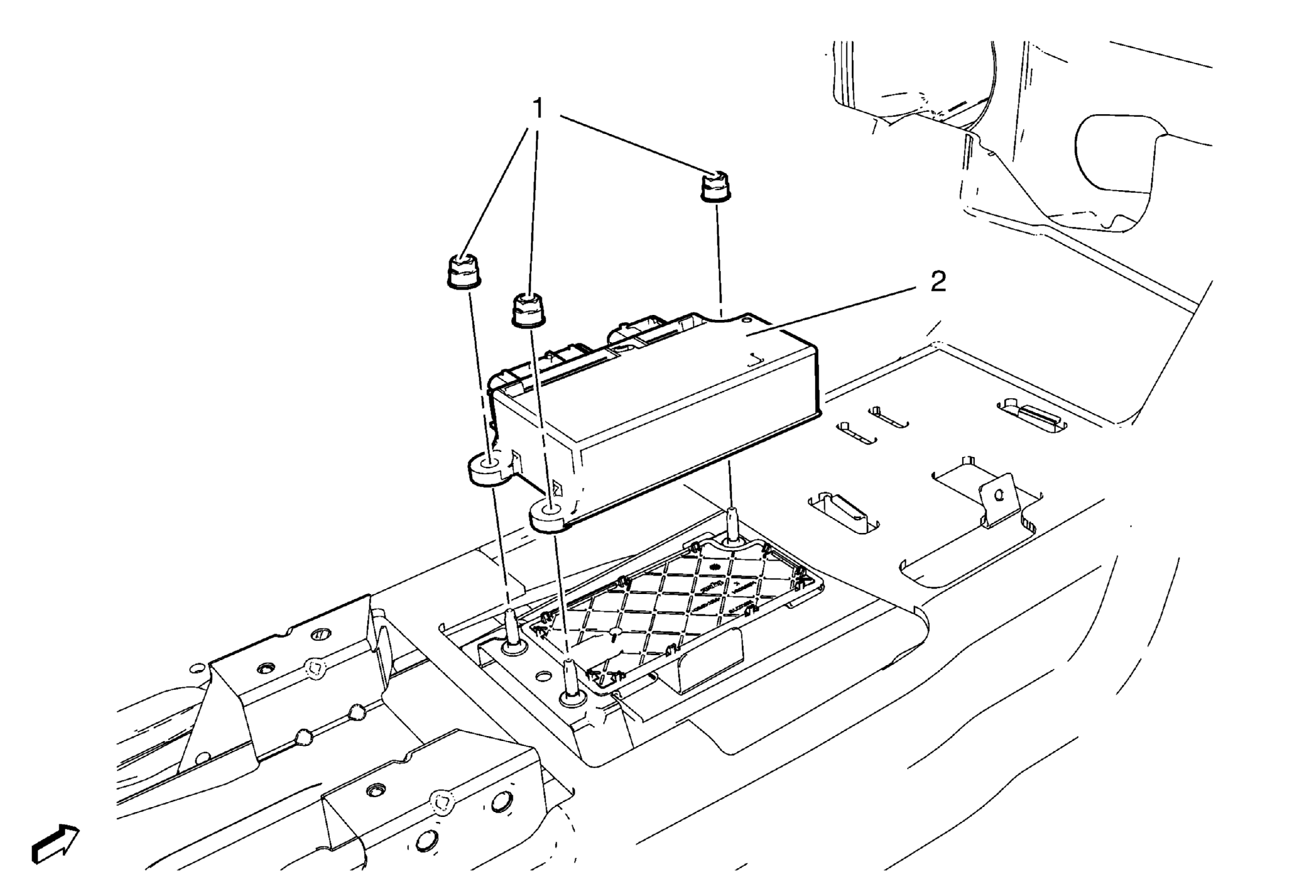

Fig 1: Inflatable Restraint Sensing and Diagnostic Module Assembly And Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side and Instrument Panel Lower Trim Panel Replacement - Right Side . Disconnect the electrical connector.
1	Inflatable Restraint Sensing and Diagnostic Module Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Inflatable Restraint Sensing and Diagnostic Module Assembly Procedure If installing a replacement module, program the module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side and Instrument Panel Lower Trim Panel Replacement - Right Side .
Disconnect the electrical connector.

Inflatable Restraint Sensing and Diagnostic Module Nut (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Inflatable Restraint Sensing and Diagnostic Module Assembly
Procedure
If installing a replacement module, program the module. Refer to Control Module References .
