Airbag Front Passenger Presence Module Replacement

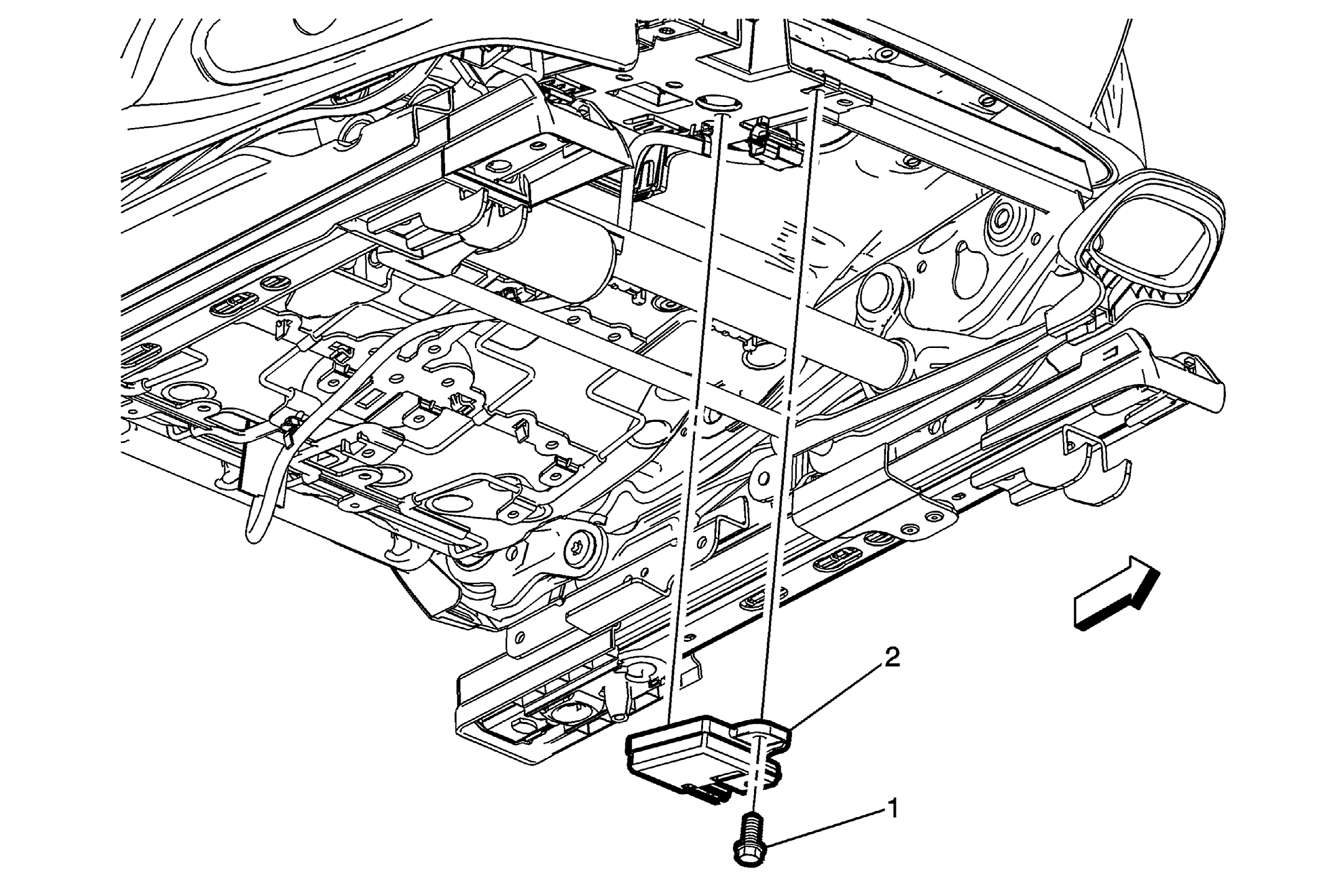

Fig 1: Airbag Front Passenger Presence Module
GM2913219Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Position the front seat to allow access to the inflatable restraint front passenger presence module and fasteners.
1 Inflatable Restraint Front Passenger Presence Module Fastener
CAUTION: Refer to Fastener Caution .
2 Inflatable Restraint Front Passenger Presence Module

Procedure

  1. Disconnect the electrical connectors.
  2. Remove the module from the wiring harness bracket.
  3. Refer to Control Module References for programing and setup information.
