Airbag Front End Discriminating Sensor Replacement

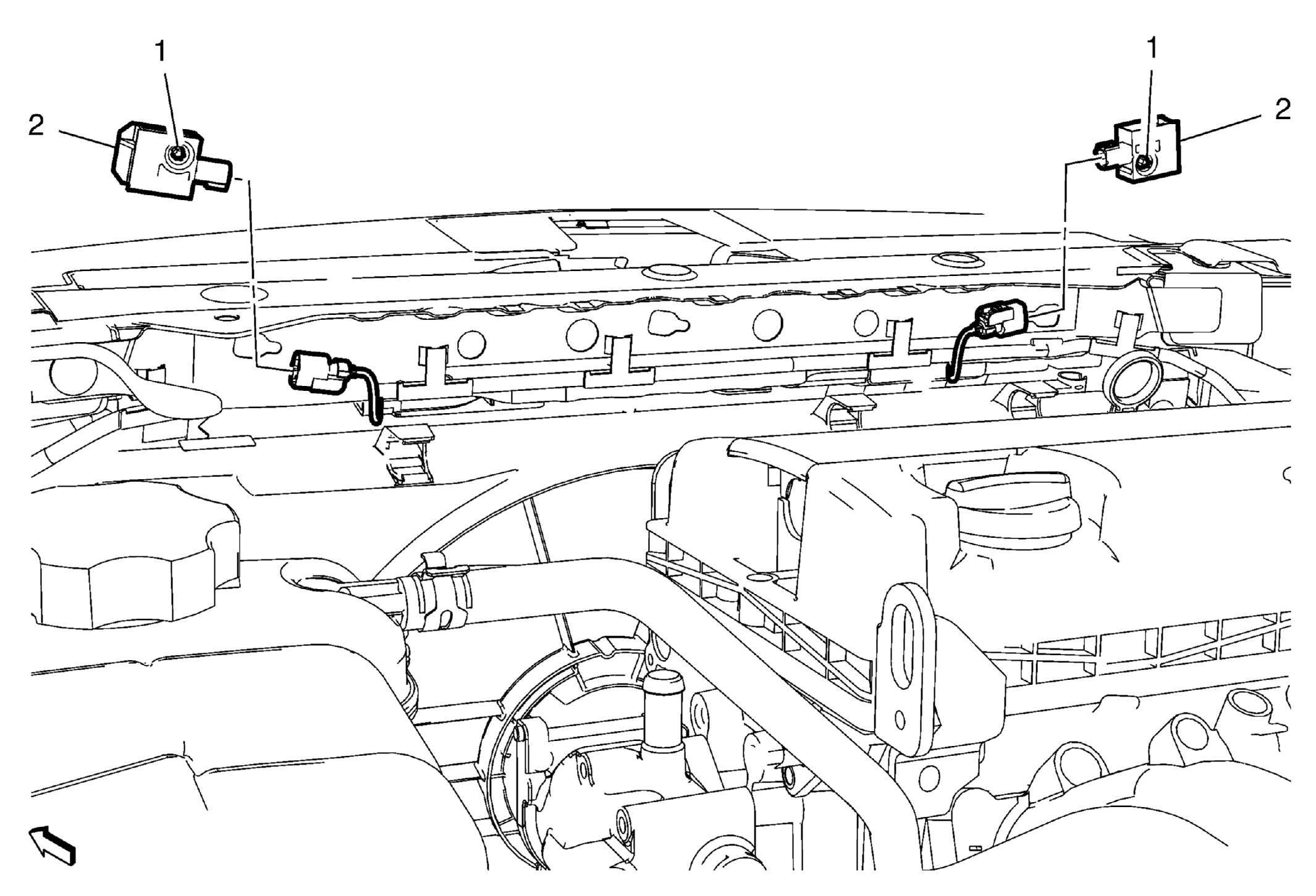

Fig 1: Front End Inflatable Restraint Discriminating Sensor
GM2757875Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING: Refer to SIR Warning .
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling .
1 Front End Inflatable Restraint Discriminating Sensor Fastener (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten
7.5 N.m (66 lb in)
NOTE: The inflatable restraint discriminating sensor fastener is integral to the sensor assembly, DO NOT remove separately.
2 Front End Inflatable Restraint Discriminating Sensor (Qty: 2)

Procedure

  1. Disconnect the electrical connector.
  2. Loosen the inflatable restraint discriminating sensor fastener and slide the sensor out of the keyhole slot.
