Heater Outlet Hose Replacement (1.8L LWE)

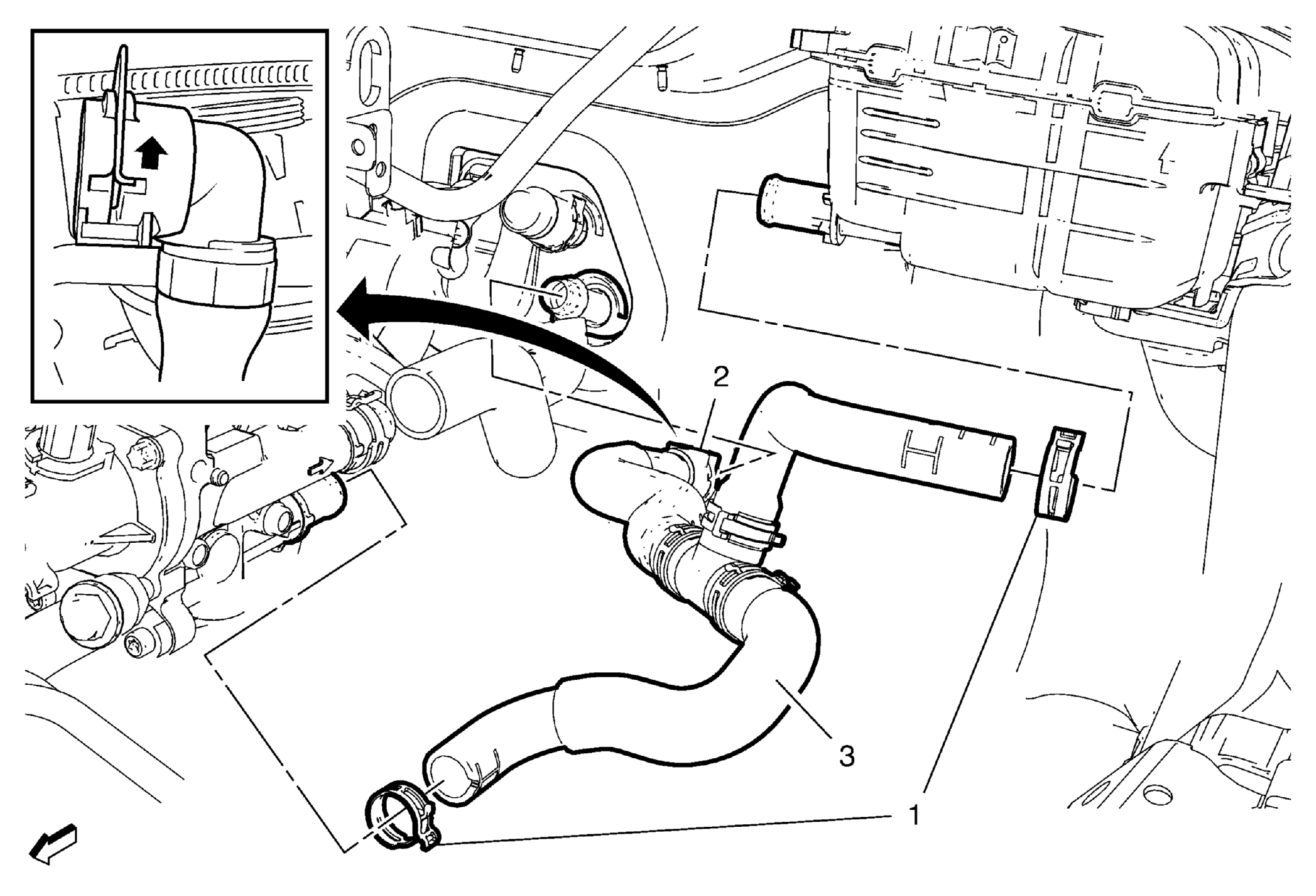

Fig 1: Heater Outlet Hose (1.8L LWE)
GM2372724Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) and Cooling System Draining and Filling (Static Fill) .
  3. Remove the engine control module. Refer to Engine Control Module Replacement .
1 Heater Outlet Hose Clamp (Qty: 2)
2 Heater Outlet Hose Retainer Spring
3 Heater Outlet Hose
