Heater Outlet Hose Replacement (1.8L LUW)

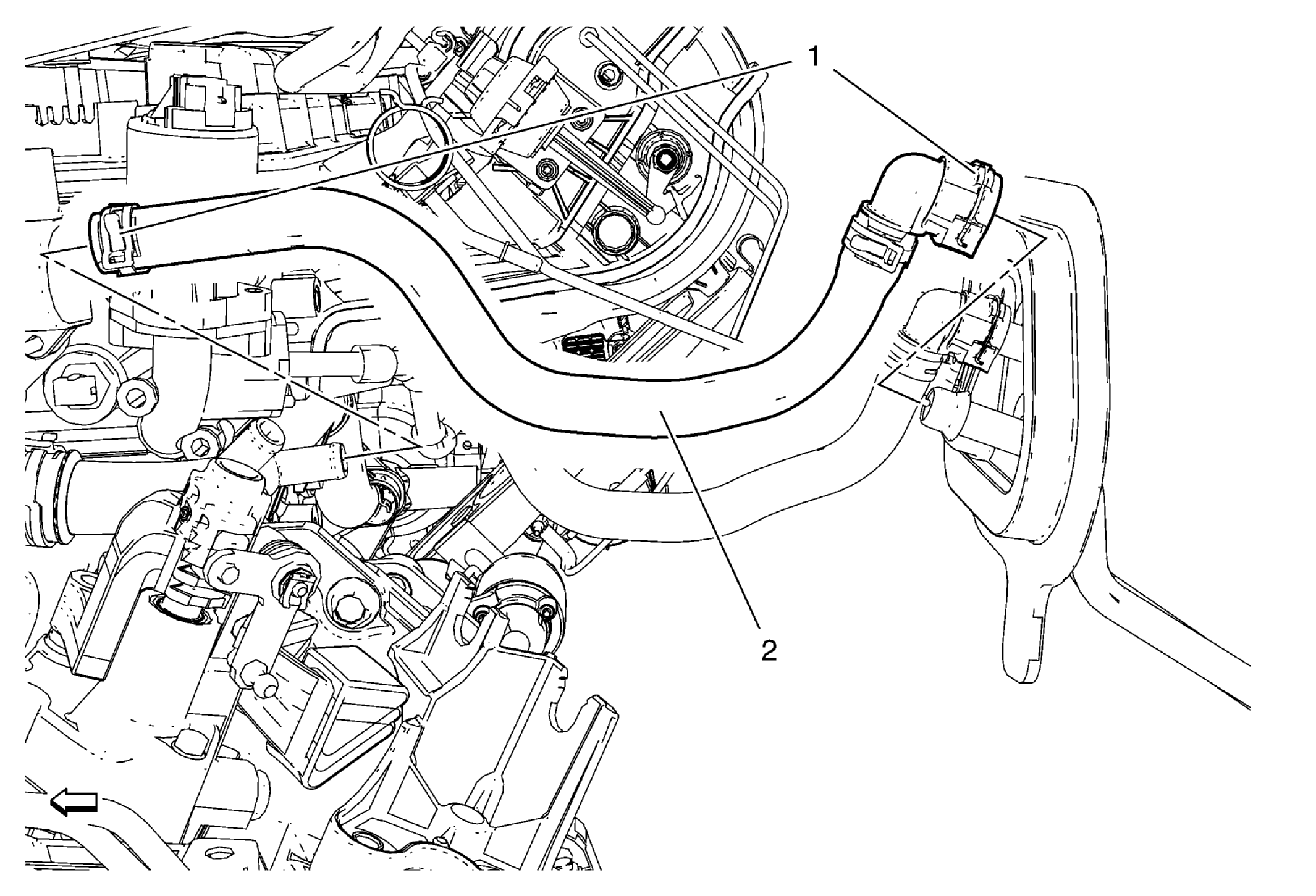

Fig 1: Heater Outlet Hose - (1.8L LUW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) and Cooling System Draining and Filling (Static Fill) .
1	Heater Outlet Hose Clamp (Qty: 2)
2	Heater Outlet Hose
