Removal Procedure

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) and Cooling System Draining and Filling (Static Fill) .
  2. Remove 2 heater outlet hose clamps (1).

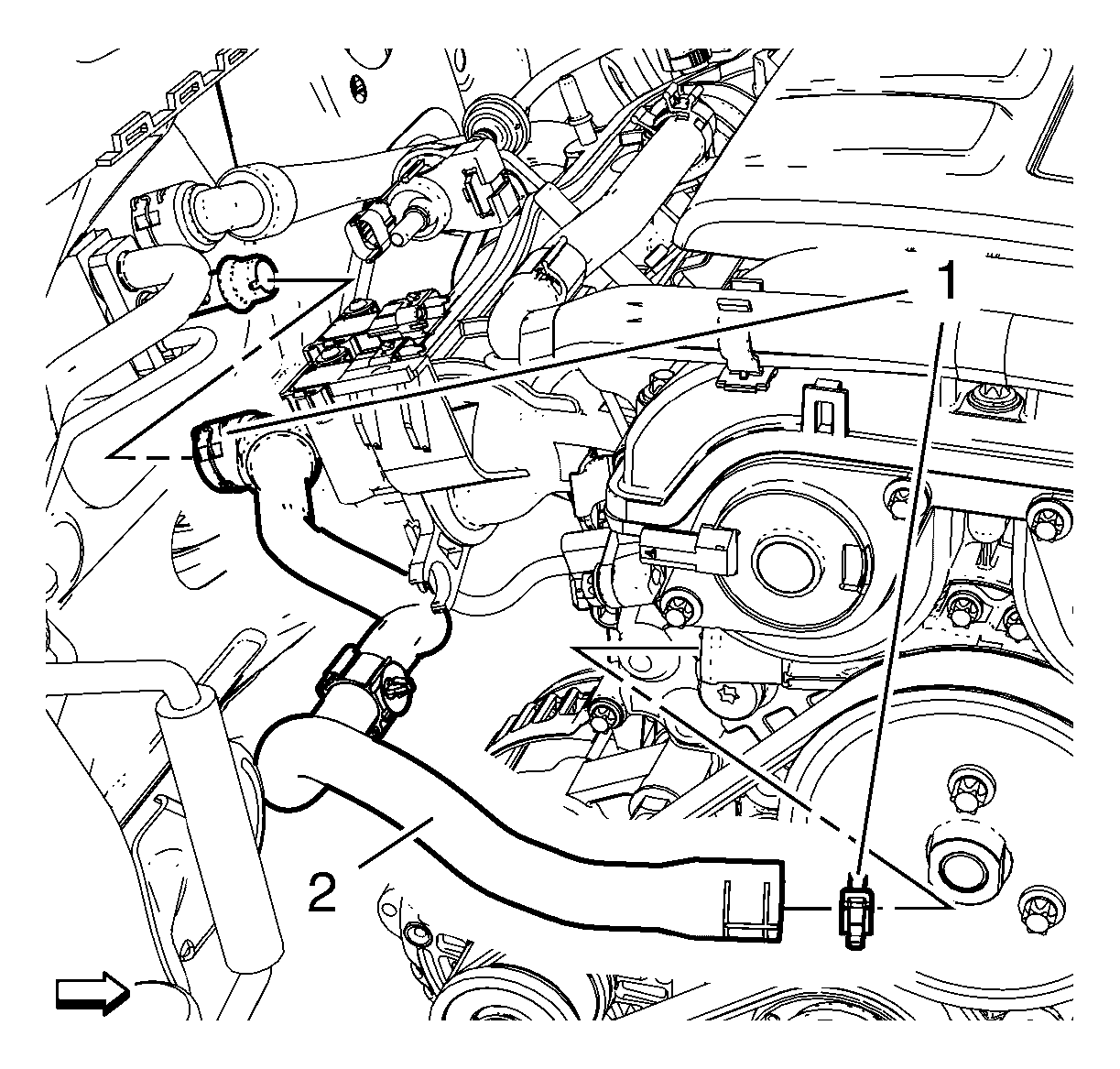

    Fig 1: Heater Outlet Hose
    GM2189376Courtesy of GENERAL MOTORS COMPANY
  3. Remove heater outlet hose (2).
  4. Remove heater outlet hose clamps (2).

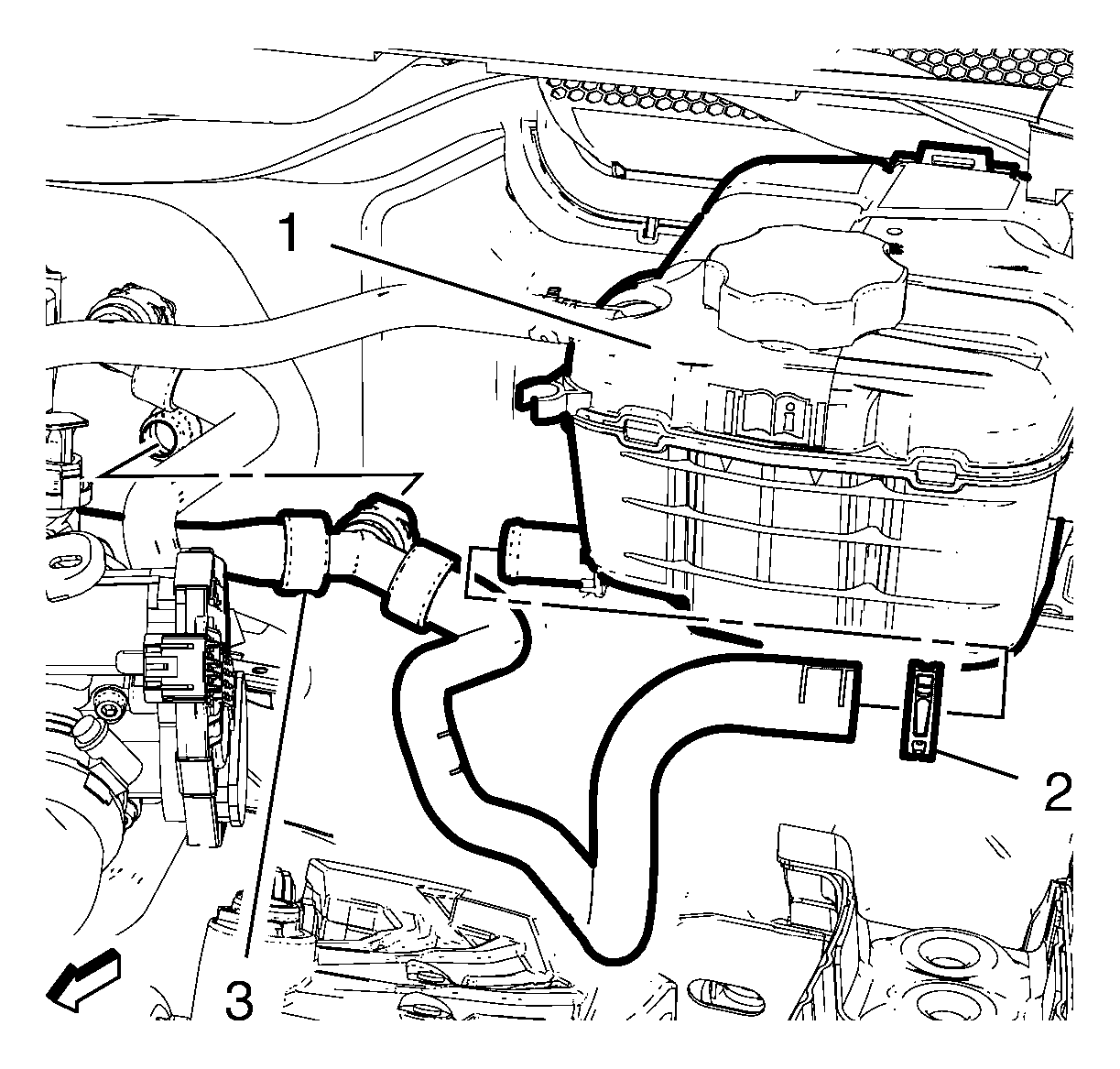

    Fig 2: Radiator Surge Tank
    GM2189377Courtesy of GENERAL MOTORS COMPANY
  5. Remove heater outlet hose (3) from radiator surge tank (1).
