Front Side Door Air Outlet Replacement

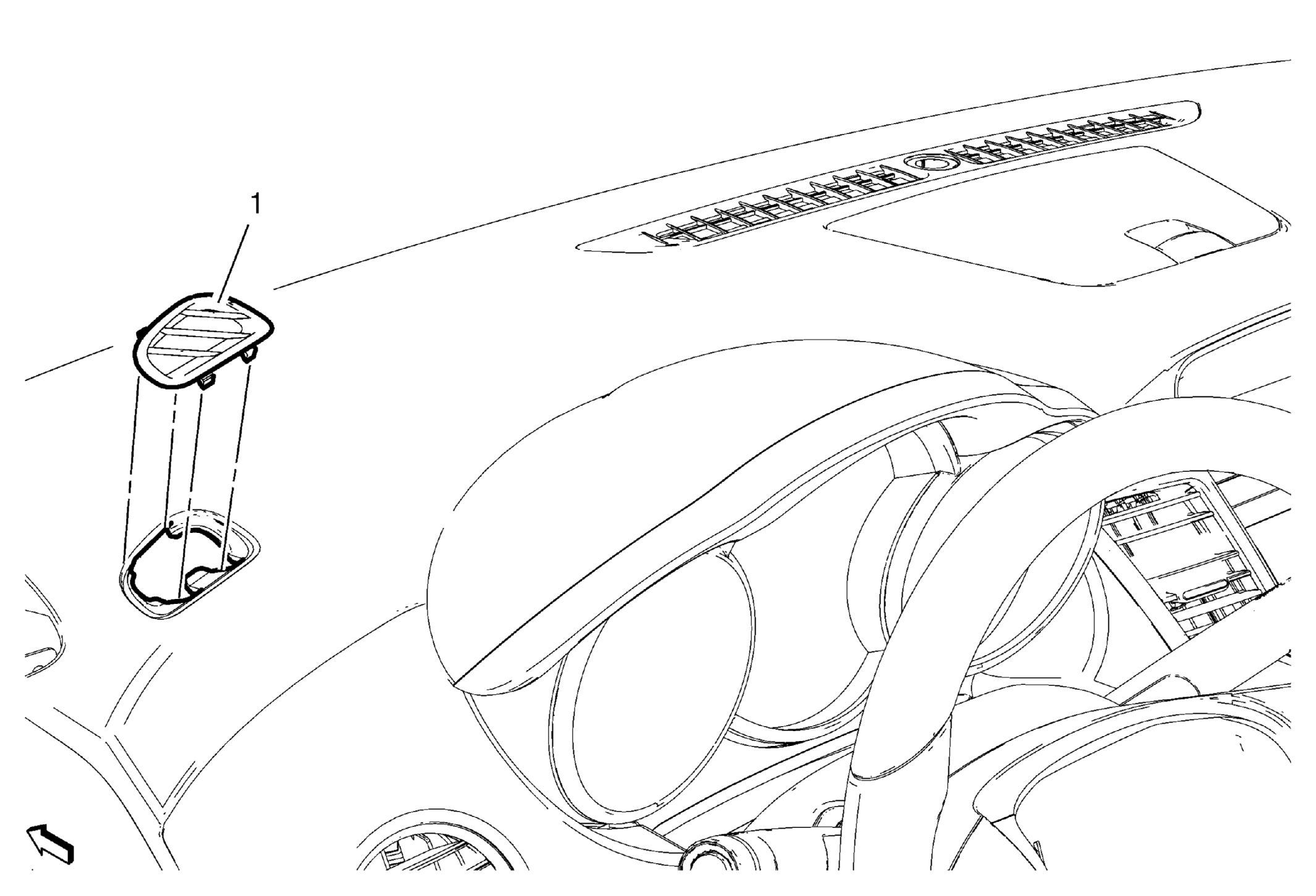

Fig 1: Front Side Door Air Outlet
GM2505517Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Air Outlet
Procedure
Using a plastic trim tool, release the air outlet retainers from the instrument panel.
